Search › Model › KDH211

KDH211

Toyota HIACE · 2007 · 5,521 parts · 443 categories

5,521 items

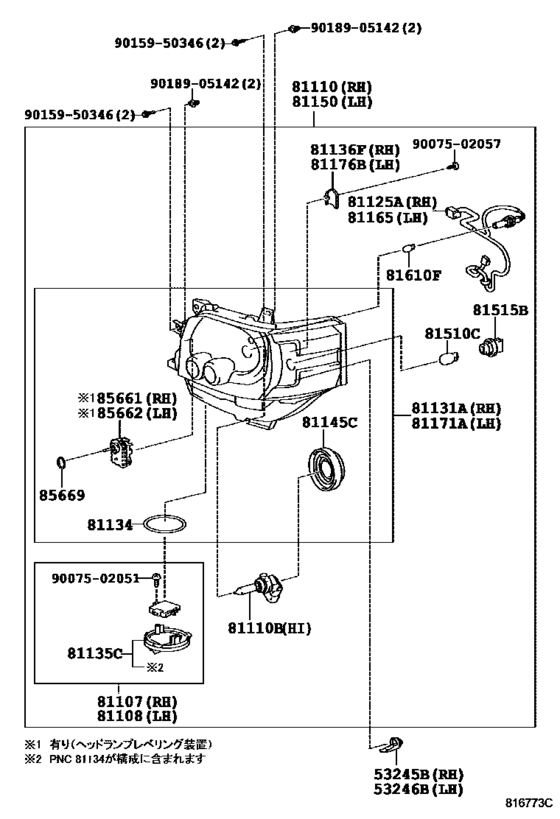

Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7) 51

#	OEM	Part name
53245	53245-26040	Bracket, Headlamp, Rh
53246	53246-26020	Bracket, Headlamp, Lh
81107	81107-60G20	Computer Sub-Assy, Headlamp Light Control, Rh
81110	81110-26720	Headlamp Assy, Rh
81110	81110-26721	Headlamp Assy, Rh
81110	81110-26840	Headlamp Assy, Rh
81110	81110-26842	Headlamp Assy, Rh
81110	81110-26841	Headlamp Assy, Rh
81110	81110-26A40	Headlamp Assy, Rh
81110	81110-26A41	Headlamp Assy, Rh
81110	90981-13046	Bulb(For Headlamp, No.1) (12V, 65W)
81110	90981-13058	Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)
81110	90084-98033	Bulb(For Headlamp, No.1)
81125	81125-26830	Cord, Headlamp, Rh
81131	81130-26720	Unit, Headlamp, Rh
81131	81130-26721	Unit, Headlamp, Rh
81131	90075-10011	Nut, Headlamp Self Locking
81131	81145-26840	Unit, Headlamp, Rh
81131	81145-26842	Unit, Headlamp, Rh
81131	81145-26841	Unit, Headlamp, Rh
81131	81145-26A40	Unit, Headlamp, Rh
81131	81145-26A41	Unit, Headlamp, Rh
81134	90075-23002	Gasket, Headlamp - HEADLAMP HOUSING
81135	81135-60G20	Cover, Headlamp Back, No.1
81136	81136-26710	Cover, Headlamp, No.2 Rh
81145	90075-65006	Cover, Headlamp Back, No.1
81150	81150-26720	Headlamp Assy, Lh
81150	81150-26721	Headlamp Assy, Lh
81150	81150-26840	Headlamp Assy, Lh
81150	81150-26842	Headlamp Assy, Lh
81150	81150-26841	Headlamp Assy, Lh
81150	81150-26A40	Headlamp Assy, Lh
81150	81150-26A41	Headlamp Assy, Lh
81171	81170-26720	Unit, Headlamp, Lh
81171	81170-26721	Unit, Headlamp, Lh
81171	81185-26840	Unit, Headlamp, Lh
81171	81185-26842	Unit, Headlamp, Lh
81171	81185-26841	Unit, Headlamp, Lh
81171	81185-26A40	Unit, Headlamp, Lh
81171	81185-26A41	Unit, Headlamp, Lh
81176	81176-26710	Cover, Headlamp, No.2 Lh
81510	90981-15021	Bulb (For Front Turn Signal Lamp)
81515	90075-60028	Socket, Headlamp, Bulb
81610	90981-11069	Bulb, Tail Lamp
85661	85661-12010	Motor, Headlamp Leveling, Rh
85661	85661-12020	Motor, Headlamp Leveling, Rh
85669	90075-99120	Packing, Headlamp Leveling Motor Base
9007502051	90075-02051	Screw, Headlamp
9007502057	90075-02057	New Genuine Part
9015950346	90159-50346	SCREW
9018905142	90189-05142	GROMMET, SCREW

OEM	Part name	Category
53245-26040	Bracket, Headlamp, Rh	Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7)
53246-26020	Bracket, Headlamp, Lh	Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7)
81107-60G20	Computer Sub-Assy, Headlamp Light Control, Rh	Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7)
81110-26720	Headlamp Assy, Rh	Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7)
81110-26721	Headlamp Assy, Rh	Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7)
81110-26840	Headlamp Assy, Rh	Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7)
81110-26841	Headlamp Assy, Rh	Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7)
81110-26842	Headlamp Assy, Rh	Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7)
81110-26A40	Headlamp Assy, Rh	Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7)
81110-26A41	Headlamp Assy, Rh	Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7)
81125-26830	Cord, Headlamp, Rh	Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7)
81130-26720	Unit, Headlamp, Rh	Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7)
81130-26721	Unit, Headlamp, Rh	Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7)
81135-60G20	Cover, Headlamp Back, No.1	Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7)
81136-26710	Cover, Headlamp, No.2 Rh	Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7)
81145-26840	Unit, Headlamp, Rh	Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7)
81145-26841	Unit, Headlamp, Rh	Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7)
81145-26842	Unit, Headlamp, Rh	Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7)
81145-26A40	Unit, Headlamp, Rh	Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7)
81145-26A41	Unit, Headlamp, Rh	Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7)
81150-26720	Headlamp Assy, Lh	Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7)
81150-26721	Headlamp Assy, Lh	Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7)
81150-26840	Headlamp Assy, Lh	Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7)
81150-26841	Headlamp Assy, Lh	Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7)
81150-26842	Headlamp Assy, Lh	Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7)
81150-26A40	Headlamp Assy, Lh	Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7)
81150-26A41	Headlamp Assy, Lh	Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7)
81170-26720	Unit, Headlamp, Lh	Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7)
81170-26721	Unit, Headlamp, Lh	Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7)
81176-26710	Cover, Headlamp, No.2 Lh	Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7)
81185-26840	Unit, Headlamp, Lh	Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7)
81185-26841	Unit, Headlamp, Lh	Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7)
81185-26842	Unit, Headlamp, Lh	Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7)
81185-26A40	Unit, Headlamp, Lh	Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7)
81185-26A41	Unit, Headlamp, Lh	Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7)
85661-12010	Motor, Headlamp Leveling, Rh	Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7)
85661-12020	Motor, Headlamp Leveling, Rh	Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7)
90075-02051	Screw, Headlamp	Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7)
90075-02057	New Genuine Part	Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7)
90075-10011	Nut, Headlamp Self Locking	Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7)
90075-23002	Gasket, Headlamp - HEADLAMP HOUSING	Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7)
90075-60028	Socket, Headlamp, Bulb	Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7)
90075-65006	Cover, Headlamp Back, No.1	Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7)
90075-99120	Packing, Headlamp Leveling Motor Base	Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7)
90084-98033	Bulb(For Headlamp, No.1)	Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7)
90159-50346	SCREW	Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7)
90189-05142	GROMMET, SCREW	Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7)
90981-11069	Bulb, Tail Lamp	Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7)
90981-13046	Bulb(For Headlamp, No.1) (12V, 65W)	Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7)
90981-13058	Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)	Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7)
90981-15021	Bulb (For Front Turn Signal Lamp)	Headlamp ([12.2013 - 05.2014] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KD H201,TRH200..SG..CBU ; (1312-1405)K DH206,211,22#,TRH 21#,22#..CBU,IV6,IV7)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 443
Collected: 2026-08-03
