Search › Model › KDH211

KDH211

Toyota HIACE · 2007 · 5,521 parts · 443 categories

5,521 items

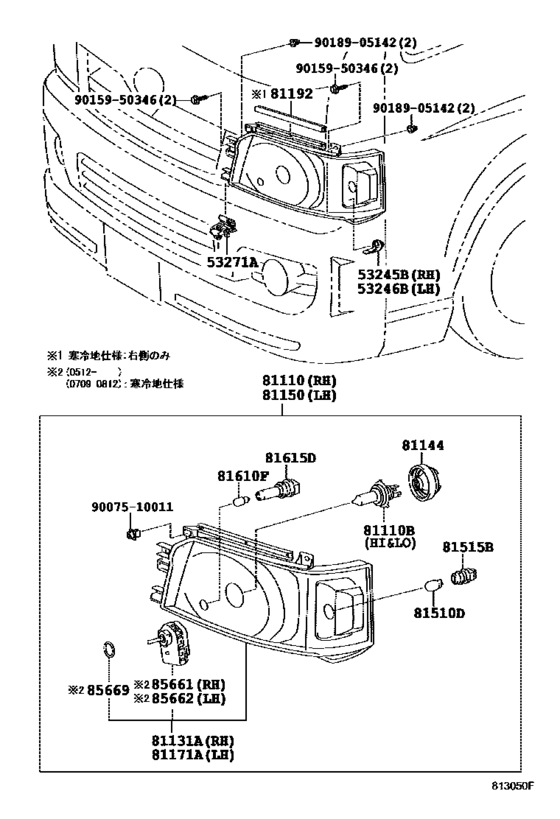

Headlamp ([08.2004 - 08.2010] (0408-1008)) 38

#	OEM	Part name
53245	53245-26040	Bracket, Headlamp, Rh
53246	53246-26020	Bracket, Headlamp, Lh
53271	53271-12060	Bracket, Headlamp Mounting
81110	81110-26480	Headlamp Assy, Rh
81110	81110-26540	Headlamp Assy, Rh
81110	81110-26560	Headlamp Assy, Rh
81110	81110-26A50	Headlamp Assy, Rh
81110	81110-26660	Headlamp Assy, Rh
81110	81110-26A60	Headlamp Assy, Rh
81110	90981-13046	Bulb(For Headlamp, No.1) (12V, 65W)
81110	90981-13058	Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)
81110	90084-98033	Bulb(For Headlamp, No.1)
81131	81130-26480	Unit, Headlamp, Rh
81131	81130-26540	Unit, Headlamp, Rh
81131	81130-26560	Unit, Headlamp, Rh
81131	81145-26660	Unit, Headlamp, Rh
81144	90075-65002	Cover, Headlamp Back, No.1
81150	81150-26480	Headlamp Assy, Lh
81150	81150-26540	Headlamp Assy, Lh
81150	81150-26560	Headlamp Assy, Lh
81150	81150-26660	Headlamp Assy, Lh
81171	81170-26480	Unit, Headlamp, Lh
81171	81170-26540	Unit, Headlamp, Lh
81171	81170-26560	Unit, Headlamp, Lh
81171	81185-26660	Unit, Headlamp, Lh
81192	81192-26010	Seal, Headlamp
81510	90981-15011	Bulb (For Turn Signal Lamp) 12V 21W, AMBER
81510	90981-15021	Bulb (For Front Turn Signal Lamp)
81515	90075-60028	Socket, Headlamp, Bulb
81610	99132-12050	Bulb (12V 5W)
81610	90080-81053	Bulb(For Clearance Lamp)
81615	90075-60077	Clearance Lamp Socket
85661	85661-12010	Motor, Headlamp Leveling, Rh
85661	85661-12020	Motor, Headlamp Leveling, Rh
85669	90075-99120	Packing, Headlamp Leveling Motor Base
9007510011	90075-10011	Nut, Headlamp Self Locking
9015950346	90159-50346	SCREW
9018905142	90189-05142	GROMMET, SCREW

OEM	Part name	Category
53245-26040	Bracket, Headlamp, Rh	Headlamp ([08.2004 - 08.2010] (0408-1008))
53246-26020	Bracket, Headlamp, Lh	Headlamp ([08.2004 - 08.2010] (0408-1008))
53271-12060	Bracket, Headlamp Mounting	Headlamp ([08.2004 - 08.2010] (0408-1008))
81110-26480	Headlamp Assy, Rh	Headlamp ([08.2004 - 08.2010] (0408-1008))
81110-26540	Headlamp Assy, Rh	Headlamp ([08.2004 - 08.2010] (0408-1008))
81110-26560	Headlamp Assy, Rh	Headlamp ([08.2004 - 08.2010] (0408-1008))
81110-26660	Headlamp Assy, Rh	Headlamp ([08.2004 - 08.2010] (0408-1008))
81110-26A50	Headlamp Assy, Rh	Headlamp ([08.2004 - 08.2010] (0408-1008))
81110-26A60	Headlamp Assy, Rh	Headlamp ([08.2004 - 08.2010] (0408-1008))
81130-26480	Unit, Headlamp, Rh	Headlamp ([08.2004 - 08.2010] (0408-1008))
81130-26540	Unit, Headlamp, Rh	Headlamp ([08.2004 - 08.2010] (0408-1008))
81130-26560	Unit, Headlamp, Rh	Headlamp ([08.2004 - 08.2010] (0408-1008))
81145-26660	Unit, Headlamp, Rh	Headlamp ([08.2004 - 08.2010] (0408-1008))
81150-26480	Headlamp Assy, Lh	Headlamp ([08.2004 - 08.2010] (0408-1008))
81150-26540	Headlamp Assy, Lh	Headlamp ([08.2004 - 08.2010] (0408-1008))
81150-26560	Headlamp Assy, Lh	Headlamp ([08.2004 - 08.2010] (0408-1008))
81150-26660	Headlamp Assy, Lh	Headlamp ([08.2004 - 08.2010] (0408-1008))
81170-26480	Unit, Headlamp, Lh	Headlamp ([08.2004 - 08.2010] (0408-1008))
81170-26540	Unit, Headlamp, Lh	Headlamp ([08.2004 - 08.2010] (0408-1008))
81170-26560	Unit, Headlamp, Lh	Headlamp ([08.2004 - 08.2010] (0408-1008))
81185-26660	Unit, Headlamp, Lh	Headlamp ([08.2004 - 08.2010] (0408-1008))
81192-26010	Seal, Headlamp	Headlamp ([08.2004 - 08.2010] (0408-1008))
85661-12010	Motor, Headlamp Leveling, Rh	Headlamp ([08.2004 - 08.2010] (0408-1008))
85661-12020	Motor, Headlamp Leveling, Rh	Headlamp ([08.2004 - 08.2010] (0408-1008))
90075-10011	Nut, Headlamp Self Locking	Headlamp ([08.2004 - 08.2010] (0408-1008))
90075-60028	Socket, Headlamp, Bulb	Headlamp ([08.2004 - 08.2010] (0408-1008))
90075-60077	Clearance Lamp Socket	Headlamp ([08.2004 - 08.2010] (0408-1008))
90075-65002	Cover, Headlamp Back, No.1	Headlamp ([08.2004 - 08.2010] (0408-1008))
90075-99120	Packing, Headlamp Leveling Motor Base	Headlamp ([08.2004 - 08.2010] (0408-1008))
90080-81053	Bulb(For Clearance Lamp)	Headlamp ([08.2004 - 08.2010] (0408-1008))
90084-98033	Bulb(For Headlamp, No.1)	Headlamp ([08.2004 - 08.2010] (0408-1008))
90159-50346	SCREW	Headlamp ([08.2004 - 08.2010] (0408-1008))
90189-05142	GROMMET, SCREW	Headlamp ([08.2004 - 08.2010] (0408-1008))
90981-13046	Bulb(For Headlamp, No.1) (12V, 65W)	Headlamp ([08.2004 - 08.2010] (0408-1008))
90981-13058	Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)	Headlamp ([08.2004 - 08.2010] (0408-1008))
90981-15011	Bulb (For Turn Signal Lamp) 12V 21W, AMBER	Headlamp ([08.2004 - 08.2010] (0408-1008))
90981-15021	Bulb (For Front Turn Signal Lamp)	Headlamp ([08.2004 - 08.2010] (0408-1008))
99132-12050	Bulb (12V 5W)	Headlamp ([08.2004 - 08.2010] (0408-1008))
