KDH211

Toyota HIACE · 2007 · 5,521 parts · 443 categories
KDH211 ×

← Back to categories

5,521 items

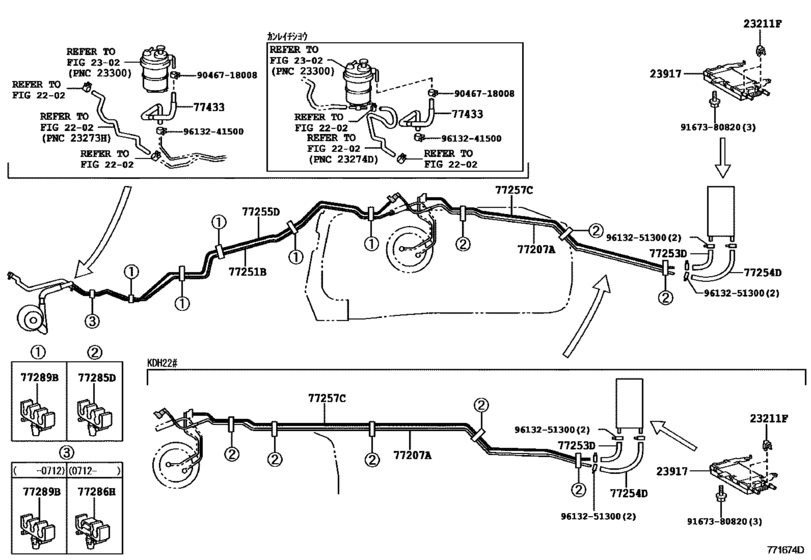

Fuel Tank & Tube ([08.2004 - 08.2010] ﾌｭｰｴﾙ ﾁｭｰﾌﾞ (0408-1008)KDH20#,211,22#) 19
#OEMPart name
23211 23211-30040 Bracket
23917 23917-30032 Cooler, Fuel
77207 77207-26060 Tube Sub-Assy, Fuel Return
77251 77251-26B30 Tube, Fuel Main
77251 77251-26B31 Tube, Fuel Main
77253 95333-08020 Hose, Lpg Injector
77253 95337-08020 Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)
77254 95333-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77254 95337-08024 Hose, Fuel
77255 77255-26700 Tube, Fuel Return
77257 77257-26060 Tube, Fuel Return, No.3
77285 77289-26010 Clamp, Fuel Tube, No.1
77286 77289-26030 Clamp, Fuel Tube, No.3
77433 77433-26010 Hose, Fuel Main, No.1
77433 77433-26011 Hose, Fuel Main, No.1
9046718008 90467-18008 Clip(For Water By-Pass Hose No.2)
9167380820 91673-80820 Bolt (For Transmission Control Cable Bracket)
9613241500 96132-41500 Clip(For Ventilation Tube)
9613251300 96132-51300 Clip(For Ventilation Hose No.2)
