KDH211

Toyota HIACE · 2007 · 5,521 parts · 443 categories

← Back to categories

5,521 items

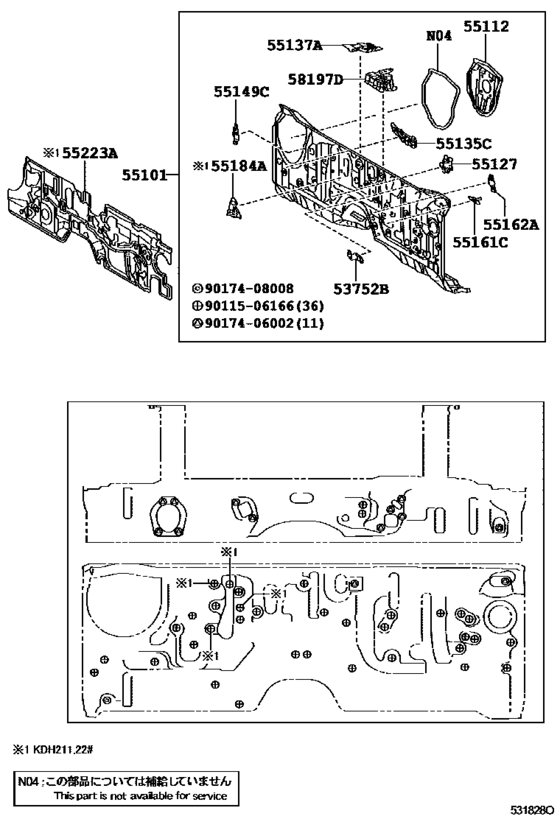

Front Fender Apron & Dash Panel ([08.2004 - ] (0408- )KDH211,22#,TRH21#,22#) 18

#	OEM	Part name
53752	53752-26010	Bracket, Washer Tank Mounting
55101	55015-26420	Panel Sub-Assy, Dash
55101	55015-26421	Panel Sub-Assy, Dash
55112	55112-26110	Panel, Dash, No.2
55112	55112-26112	Panel, Dash, No.2
55112	55112-26111	Panel, Dash, No.2
55127	55127-26010	Reinforcement, Parking Brake
55135	55135-26020	Bracket, Brake Pedal, No.2
55137	55137-26010	Brace, Dash To Frame, Rh
55149	55149-26010	Bracket, Dash Wiring Harness
55161	55161-26040	Bracket, Heater Mounting
55162	55162-26060	Bracket, Heater Mounting, Lwr
55184	55184-26020	Bracket, Dash Panel
55223	55223-26040	Insulator, Dash Panel, Outer
58197	58197-26010	Retainer, Instr Panel Brace Mt Bracket
9011506166	90115-06166	Bolt, Weld(For Front Floor Pan)
9017406002	90174-06002	New Genuine Part
9017408008	90174-08008	New Genuine Part

OEM	Part name	Category
53752-26010	Bracket, Washer Tank Mounting	Front Fender Apron & Dash Panel ([08.2004 - ] (0408- )KDH211,22#,TRH21#,22#)
55015-26420	Panel Sub-Assy, Dash	Front Fender Apron & Dash Panel ([08.2004 - ] (0408- )KDH211,22#,TRH21#,22#)
55015-26421	Panel Sub-Assy, Dash	Front Fender Apron & Dash Panel ([08.2004 - ] (0408- )KDH211,22#,TRH21#,22#)
55112-26110	Panel, Dash, No.2	Front Fender Apron & Dash Panel ([08.2004 - ] (0408- )KDH211,22#,TRH21#,22#)
55112-26111	Panel, Dash, No.2	Front Fender Apron & Dash Panel ([08.2004 - ] (0408- )KDH211,22#,TRH21#,22#)
55112-26112	Panel, Dash, No.2	Front Fender Apron & Dash Panel ([08.2004 - ] (0408- )KDH211,22#,TRH21#,22#)
55127-26010	Reinforcement, Parking Brake	Front Fender Apron & Dash Panel ([08.2004 - ] (0408- )KDH211,22#,TRH21#,22#)
55135-26020	Bracket, Brake Pedal, No.2	Front Fender Apron & Dash Panel ([08.2004 - ] (0408- )KDH211,22#,TRH21#,22#)
55137-26010	Brace, Dash To Frame, Rh	Front Fender Apron & Dash Panel ([08.2004 - ] (0408- )KDH211,22#,TRH21#,22#)
55149-26010	Bracket, Dash Wiring Harness	Front Fender Apron & Dash Panel ([08.2004 - ] (0408- )KDH211,22#,TRH21#,22#)
55161-26040	Bracket, Heater Mounting	Front Fender Apron & Dash Panel ([08.2004 - ] (0408- )KDH211,22#,TRH21#,22#)
55162-26060	Bracket, Heater Mounting, Lwr	Front Fender Apron & Dash Panel ([08.2004 - ] (0408- )KDH211,22#,TRH21#,22#)
55184-26020	Bracket, Dash Panel	Front Fender Apron & Dash Panel ([08.2004 - ] (0408- )KDH211,22#,TRH21#,22#)
55223-26040	Insulator, Dash Panel, Outer	Front Fender Apron & Dash Panel ([08.2004 - ] (0408- )KDH211,22#,TRH21#,22#)
58197-26010	Retainer, Instr Panel Brace Mt Bracket	Front Fender Apron & Dash Panel ([08.2004 - ] (0408- )KDH211,22#,TRH21#,22#)
90115-06166	Bolt, Weld(For Front Floor Pan)	Front Fender Apron & Dash Panel ([08.2004 - ] (0408- )KDH211,22#,TRH21#,22#)
90174-06002	New Genuine Part	Front Fender Apron & Dash Panel ([08.2004 - ] (0408- )KDH211,22#,TRH21#,22#)
90174-08008	New Genuine Part	Front Fender Apron & Dash Panel ([08.2004 - ] (0408- )KDH211,22#,TRH21#,22#)
