Search › Model › KDH211

KDH211

Toyota HIACE · 2007 · 5,521 parts · 443 categories

5,521 items

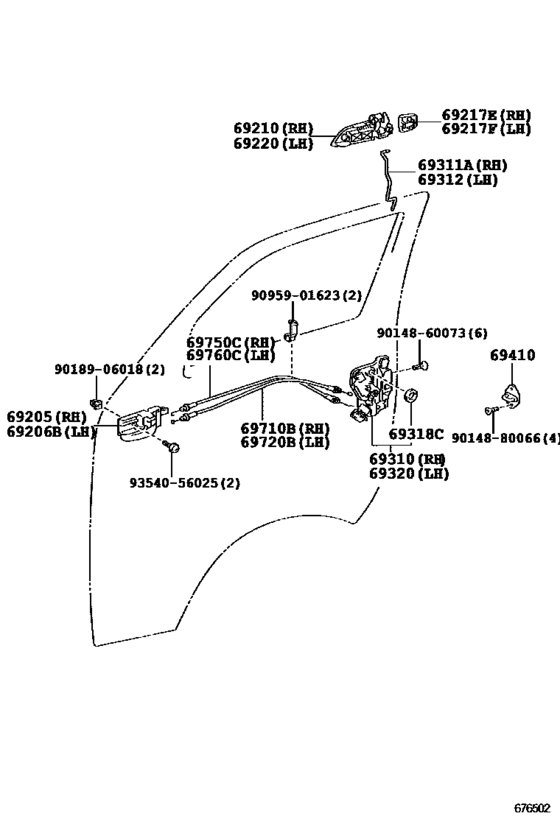

Front Door Lock & Handle ([08.2004 - ] (0408- )) 21

#	OEM	Part name
69205	69205-12200-B1	Handle Sub-Assy, Front Door Inside, Rh
69206	69206-12200-B1	Handle Sub-Assy, Front Door Inside, Lh
69210	69210-26050	Handle Assy, Front Door, Outside Rh
69217	69217-26020	Cover, Front Door Outside Handle, Rh
69217	69218-26020	Cover, Front Door Outside Handle, Lh
69220	69220-26050	Handle Assy, Front Door Outside, Lh
69310	69030-26140	Lock Assy, Front Door, Rh
69311	69311-26010	Rod, Front Door Lock Open, Rh
69312	69312-26010	Rod, Front Door Lock Open, Lh
69318	69318-51010	Seal, Front Door Lock Hole, Rh
69320	69040-26131	Lock Assy, Front Door, Lh
69320	69040-26140	Lock Assy, Front Door, Lh
69410	69410-20110	Plate Assy, Front Door Lock Striker
69710	69710-26010	Cable Assy, Front Door Lock Remote Control, Rh
69750	69750-26050	Cable Assy, Front Door Inside Locking, Rh
69760	69760-26050	Cable Assy, Front Door Inside Locking Lh
9014860073	90148-60073	SCREW HEXALOBULAR
9014880066	90148-80066	SCREW HEXALOBULAR
9018906018	90189-06018	GROMMET
9095901623	90959-01623	CLAMP
9354056025	93540-56025	SCREW

OEM	Part name	Category
69030-26140	Lock Assy, Front Door, Rh	Front Door Lock & Handle ([08.2004 - ] (0408- ))
69040-26131	Lock Assy, Front Door, Lh	Front Door Lock & Handle ([08.2004 - ] (0408- ))
69040-26140	Lock Assy, Front Door, Lh	Front Door Lock & Handle ([08.2004 - ] (0408- ))
69205-12200-B1	Handle Sub-Assy, Front Door Inside, Rh	Front Door Lock & Handle ([08.2004 - ] (0408- ))
69206-12200-B1	Handle Sub-Assy, Front Door Inside, Lh	Front Door Lock & Handle ([08.2004 - ] (0408- ))
69210-26050	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([08.2004 - ] (0408- ))
69217-26020	Cover, Front Door Outside Handle, Rh	Front Door Lock & Handle ([08.2004 - ] (0408- ))
69218-26020	Cover, Front Door Outside Handle, Lh	Front Door Lock & Handle ([08.2004 - ] (0408- ))
69220-26050	Handle Assy, Front Door Outside, Lh	Front Door Lock & Handle ([08.2004 - ] (0408- ))
69311-26010	Rod, Front Door Lock Open, Rh	Front Door Lock & Handle ([08.2004 - ] (0408- ))
69312-26010	Rod, Front Door Lock Open, Lh	Front Door Lock & Handle ([08.2004 - ] (0408- ))
69318-51010	Seal, Front Door Lock Hole, Rh	Front Door Lock & Handle ([08.2004 - ] (0408- ))
69410-20110	Plate Assy, Front Door Lock Striker	Front Door Lock & Handle ([08.2004 - ] (0408- ))
69710-26010	Cable Assy, Front Door Lock Remote Control, Rh	Front Door Lock & Handle ([08.2004 - ] (0408- ))
69750-26050	Cable Assy, Front Door Inside Locking, Rh	Front Door Lock & Handle ([08.2004 - ] (0408- ))
69760-26050	Cable Assy, Front Door Inside Locking Lh	Front Door Lock & Handle ([08.2004 - ] (0408- ))
90148-60073	SCREW HEXALOBULAR	Front Door Lock & Handle ([08.2004 - ] (0408- ))
90148-80066	SCREW HEXALOBULAR	Front Door Lock & Handle ([08.2004 - ] (0408- ))
90189-06018	GROMMET	Front Door Lock & Handle ([08.2004 - ] (0408- ))
90959-01623	CLAMP	Front Door Lock & Handle ([08.2004 - ] (0408- ))
93540-56025	SCREW	Front Door Lock & Handle ([08.2004 - ] (0408- ))
