KDH211

Toyota HIACE · 2007 · 5,521 parts · 443 categories
KDH211 ×

← Back to categories

5,521 items

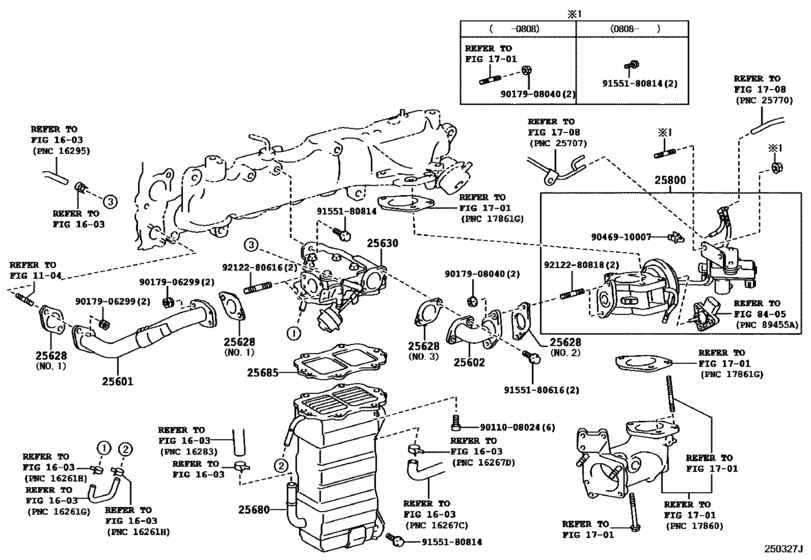

Exhaust Gas Recirculation System ([09.2007 - 08.2010] (0709-1008)1KDFTV) 26
#OEMPart name
25601 25601-30090 Pipe Sub-Assy, Egr, No.1
25601 16282-30021 Hose, Water By-Pass, No.5
25601 16283-30011 Hose, Water By-Pass, No.6
25601 16295-30011 Hose, Water By-Pass, No.7
25601 25601-30092 Pipe Sub-Assy, Egr, No.1
25601 90179-06298 NUT
25602 25612-30010 Pipe Sub-Assy, Egr, No.2
25628 25628-30010 Gasket, Egr Inlet
25628 25628-30040 Gasket, Egr Inlet
25628 25628-30050 Gasket, Egr Inlet
25628 25628-30060 Gasket, Egr Inlet
25630 25630-30030 Valve Assy, Egr, No.2
25630 25630-30040 Valve Assy, Egr, No.2
25680 25680-30020 Cooler Assy, Egr
25680 25680-30021 Cooler Assy, Egr
25685 25685-30020 Gasket, Egr Cooler, No.1
25800 25800-30150 Valve Assy, Electric Egr Control
25800 25800-30200 Valve Assy, Electric Egr Control
9011008024 90110-08024 New Genuine Part
9017906299 90179-06299 Nut, Wire Adjusting, No.1
9017908040 90179-08040 Nut, Cap(For Cylinder Head Cover)
9046910007 90469-10007 New Genuine Part
9155180616 91551-80616 BOLT FLANGE
9155180814 91551-80814 Bolt, Hexagon (For Rear Spring Seat Bolt)
9212280616 92122-80616 Bolt, Stud(For Head To Cylinder Head Cover)
9212280818 92122-80818 Bolt, Stud(For Water Pump Pulley Seat)
