Search › Model › KDH211

KDH211

Toyota HIACE · 2007 · 5,521 parts · 443 categories

← Back to categories

5,521 items

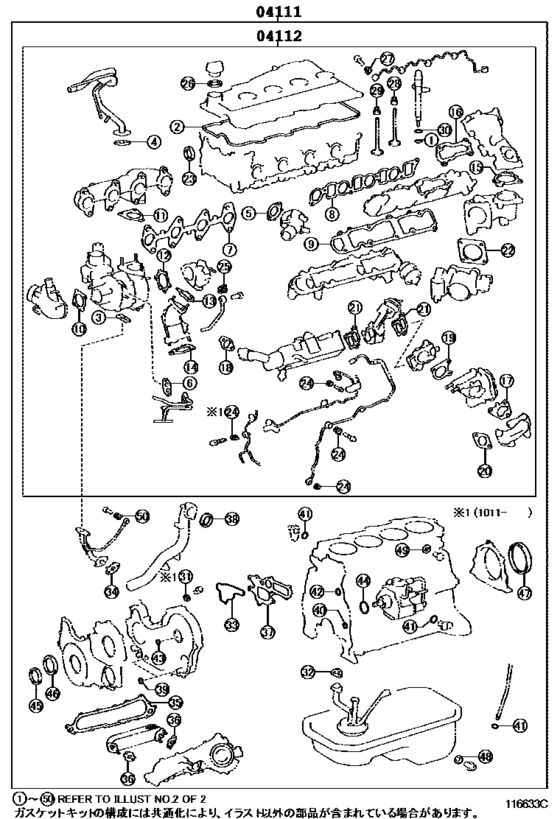

Engine Overhaul Gasket Kit ([08.2010 - ] (1008- )1KDFTV) 17

#	OEM	Part name
4111	04111-30645	Gasket Kit, Engine Overhaul
4111	04111-30647	Gasket Kit, Engine Overhaul
4111	04111-30695	Gasket Kit, Engine Overhaul
4111	04111-30646	Gasket Kit, Engine Overhaul
4111	04111-30740	Gasket Kit, Engine Overhaul
4111	04111-30743	Gasket Kit, Engine Overhaul
4111	04111-30741	Gasket Kit, Engine Overhaul
4111	04111-30742	Gasket Kit, Engine Overhaul
4111	04111-30810	Gasket Kit, Engine Overhaul
4111	04111-30811	Gasket Kit, Engine Overhaul
4111	04111-30812	Gasket Kit, Engine Overhaul
4112	04112-30360	Gasket Kit, Engine Valve Grind
4112	04112-30363	Gasket Kit, Engine Valve Grind
4112	04112-30361	Gasket Kit, Engine Valve Grind
4112	04112-30430	Gasket Kit, Engine Valve Grind
4112	04112-30432	Gasket Kit, Engine Valve Grind
4112	04112-30431	Gasket Kit, Engine Valve Grind

OEM	Part name	Category
04111-30645	Gasket Kit, Engine Overhaul	Engine Overhaul Gasket Kit ([08.2010 - ] (1008- )1KDFTV)
04111-30646	Gasket Kit, Engine Overhaul	Engine Overhaul Gasket Kit ([08.2010 - ] (1008- )1KDFTV)
04111-30647	Gasket Kit, Engine Overhaul	Engine Overhaul Gasket Kit ([08.2010 - ] (1008- )1KDFTV)
04111-30695	Gasket Kit, Engine Overhaul	Engine Overhaul Gasket Kit ([08.2010 - ] (1008- )1KDFTV)
04111-30740	Gasket Kit, Engine Overhaul	Engine Overhaul Gasket Kit ([08.2010 - ] (1008- )1KDFTV)
04111-30741	Gasket Kit, Engine Overhaul	Engine Overhaul Gasket Kit ([08.2010 - ] (1008- )1KDFTV)
04111-30742	Gasket Kit, Engine Overhaul	Engine Overhaul Gasket Kit ([08.2010 - ] (1008- )1KDFTV)
04111-30743	Gasket Kit, Engine Overhaul	Engine Overhaul Gasket Kit ([08.2010 - ] (1008- )1KDFTV)
04111-30810	Gasket Kit, Engine Overhaul	Engine Overhaul Gasket Kit ([08.2010 - ] (1008- )1KDFTV)
04111-30811	Gasket Kit, Engine Overhaul	Engine Overhaul Gasket Kit ([08.2010 - ] (1008- )1KDFTV)
04111-30812	Gasket Kit, Engine Overhaul	Engine Overhaul Gasket Kit ([08.2010 - ] (1008- )1KDFTV)
04112-30360	Gasket Kit, Engine Valve Grind	Engine Overhaul Gasket Kit ([08.2010 - ] (1008- )1KDFTV)
04112-30361	Gasket Kit, Engine Valve Grind	Engine Overhaul Gasket Kit ([08.2010 - ] (1008- )1KDFTV)
04112-30363	Gasket Kit, Engine Valve Grind	Engine Overhaul Gasket Kit ([08.2010 - ] (1008- )1KDFTV)
04112-30430	Gasket Kit, Engine Valve Grind	Engine Overhaul Gasket Kit ([08.2010 - ] (1008- )1KDFTV)
04112-30431	Gasket Kit, Engine Valve Grind	Engine Overhaul Gasket Kit ([08.2010 - ] (1008- )1KDFTV)
04112-30432	Gasket Kit, Engine Valve Grind	Engine Overhaul Gasket Kit ([08.2010 - ] (1008- )1KDFTV)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 443
Collected: 2026-08-03
