KDH211

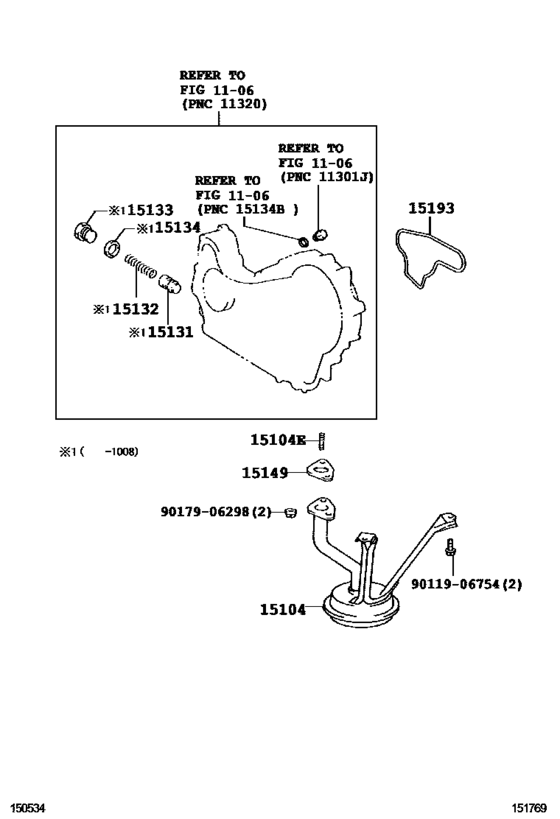

Engine Oil Pump ([08.2004 - ] (0408- )1KDFTV,2KDFTV) 10
| # | OEM | Part name |
|---|---|---|
| 15104 | 15104-67060 | Strainer Sub-Assy, Oil |
| 15104 | 90116-06140 | Bolt, Stud(For Oil Strainer) |
| 15131 | 15131-46040 | Valve, Oil Pump Relief |
| 15132 | 15132-17010 | Spring, Oil Pump Relief Valve |
| 15133 | 15133-17010 | Plug, Oil Pump Relief Valve |
| 15134 | 15134-67020 | Gasket, Oil Pump Relief Valve |
| 15149 | 15149-67010 | Gasket, Oil Strainer Flange |
| 15193 | 15193-67011 | Gasket, Oil Pump |
| 9011906754 | 90119-06754 | BOLT WWASHER |
| 9017906298 | 90179-06298 | NUT |
| OEM | Part name | Category |
|---|---|---|
| 15104-67060 | Strainer Sub-Assy, Oil | Engine Oil Pump ([08.2004 - ] (0408- )1KDFTV,2KDFTV) |
| 15131-46040 | Valve, Oil Pump Relief | Engine Oil Pump ([08.2004 - ] (0408- )1KDFTV,2KDFTV) |
| 15132-17010 | Spring, Oil Pump Relief Valve | Engine Oil Pump ([08.2004 - ] (0408- )1KDFTV,2KDFTV) |
| 15133-17010 | Plug, Oil Pump Relief Valve | Engine Oil Pump ([08.2004 - ] (0408- )1KDFTV,2KDFTV) |
| 15134-67020 | Gasket, Oil Pump Relief Valve | Engine Oil Pump ([08.2004 - ] (0408- )1KDFTV,2KDFTV) |
| 15149-67010 | Gasket, Oil Strainer Flange | Engine Oil Pump ([08.2004 - ] (0408- )1KDFTV,2KDFTV) |
| 15193-67011 | Gasket, Oil Pump | Engine Oil Pump ([08.2004 - ] (0408- )1KDFTV,2KDFTV) |
| 90116-06140 | Bolt, Stud(For Oil Strainer) | Engine Oil Pump ([08.2004 - ] (0408- )1KDFTV,2KDFTV) |
| 90119-06754 | BOLT WWASHER | Engine Oil Pump ([08.2004 - ] (0408- )1KDFTV,2KDFTV) |
| 90179-06298 | NUT | Engine Oil Pump ([08.2004 - ] (0408- )1KDFTV,2KDFTV) |
