KDH211

Toyota HIACE · 2007 · 5,521 parts · 443 categories

← Back to categories

5,521 items

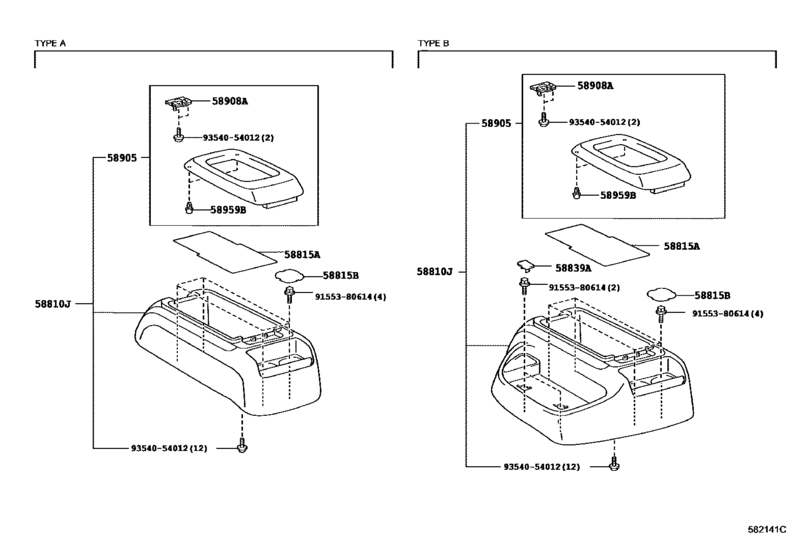

Console Box & Bracket ([08.2004 - ] (0408- )) 13

#	OEM	Part name
58810	58810-26220-B0	Box Assy, Console
58810	58810-26220-B1	Box Assy, Console
58815	58815-26070	Carpet, Console Box
58815	58815-26080	Carpet, Console Box
58839	58839-26030-B0	Cover, Console Box Hole
58839	58839-26030-B1	Cover, Console Box Hole
58905	58905-26200-B0	Door Sub-Assy, Console Compartment
58905	58905-26200-B1	Door Sub-Assy, Console Compartment
58908	58908-58010	Lock Sub-Assy, Console Compartment Door
58908	58908-12080	Lock Sub-Assy, Console Compartment Door
58959	58959-60060	Cushion, Instrument Panel
9155380614	91553-80614	BOLT FLANGE
9354054012	93540-54012	Screw, Headlamp

OEM	Part name	Category
58810-26220-B0	Box Assy, Console	Console Box & Bracket ([08.2004 - ] (0408- ))
58810-26220-B1	Box Assy, Console	Console Box & Bracket ([08.2004 - ] (0408- ))
58815-26070	Carpet, Console Box	Console Box & Bracket ([08.2004 - ] (0408- ))
58815-26080	Carpet, Console Box	Console Box & Bracket ([08.2004 - ] (0408- ))
58839-26030-B0	Cover, Console Box Hole	Console Box & Bracket ([08.2004 - ] (0408- ))
58839-26030-B1	Cover, Console Box Hole	Console Box & Bracket ([08.2004 - ] (0408- ))
58905-26200-B0	Door Sub-Assy, Console Compartment	Console Box & Bracket ([08.2004 - ] (0408- ))
58905-26200-B1	Door Sub-Assy, Console Compartment	Console Box & Bracket ([08.2004 - ] (0408- ))
58908-12080	Lock Sub-Assy, Console Compartment Door	Console Box & Bracket ([08.2004 - ] (0408- ))
58908-58010	Lock Sub-Assy, Console Compartment Door	Console Box & Bracket ([08.2004 - ] (0408- ))
58959-60060	Cushion, Instrument Panel	Console Box & Bracket ([08.2004 - ] (0408- ))
91553-80614	BOLT FLANGE	Console Box & Bracket ([08.2004 - ] (0408- ))
93540-54012	Screw, Headlamp	Console Box & Bracket ([08.2004 - ] (0408- ))
