Search › Model › KDH211
KDH211

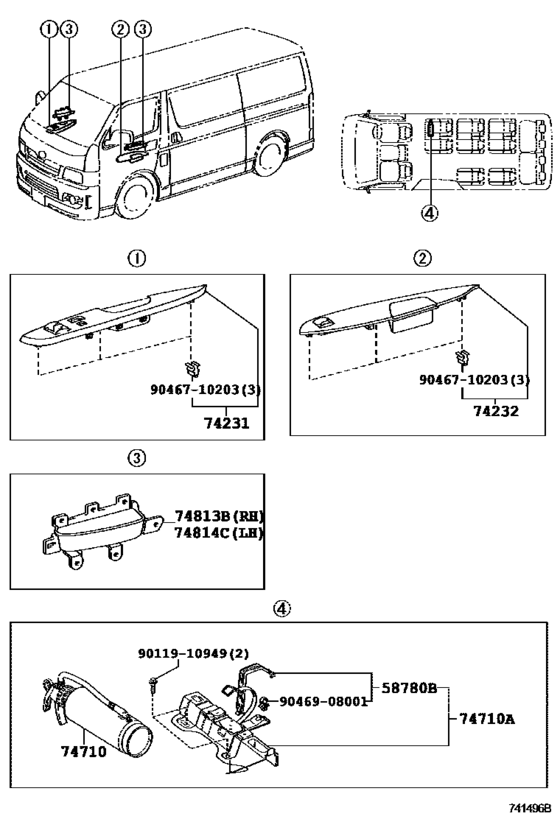

Armrest & Visor ([08.2004 - ] ｱｰﾑﾚｽﾄ & ｼｮｳｶｷ (0408- )) 5
| # | OEM | Part name |
|---|---|---|
| 74231 | 74231-26270-B0 | Panel, Front Armrest Base, Upper Rh |
| 74232 | 74232-26120-B0 | Panel, Front Armrest Base, Upper Lh |
| 9011910949 | 90119-10949 | BOLT WWASHER |
| 9046710203 | 90467-10203 | Direct |
| 9046908001 | 90469-08001 | Clamp, Jack Carrier |
| OEM | Part name | Category |
|---|---|---|
| 74231-26270-B0 | Panel, Front Armrest Base, Upper Rh | Armrest & Visor ([08.2004 - ] ｱｰﾑﾚｽﾄ & ｼｮｳｶｷ (0408- )) |
| 74232-26120-B0 | Panel, Front Armrest Base, Upper Lh | Armrest & Visor ([08.2004 - ] ｱｰﾑﾚｽﾄ & ｼｮｳｶｷ (0408- )) |
| 90119-10949 | BOLT WWASHER | Armrest & Visor ([08.2004 - ] ｱｰﾑﾚｽﾄ & ｼｮｳｶｷ (0408- )) |
| 90467-10203 | Direct | Armrest & Visor ([08.2004 - ] ｱｰﾑﾚｽﾄ & ｼｮｳｶｷ (0408- )) |
| 90469-08001 | Clamp, Jack Carrier | Armrest & Visor ([08.2004 - ] ｱｰﾑﾚｽﾄ & ｼｮｳｶｷ (0408- )) |
