KDH211

Toyota HIACE · 2007 · 5,521 parts · 443 categories
KDH211 ×

← Back to categories

5,521 items

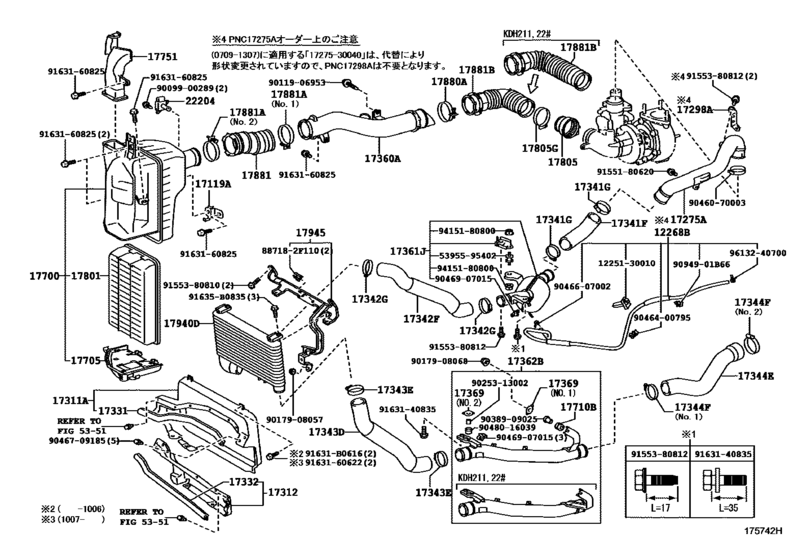

Air Cleaner ([09.2007 - 08.2010] (0709-1008)1KDFTV) 77
#OEMPart name
12268 12268-30030 Hose, Oil Return
12268 12268-30050 Hose, Oil Return
17119 17119-30020 Bracket, Air Cleaner
17275 17206-30020 Elbow, Compressor Outlet
17275 17275-30040 Elbow, Compressor Outlet
17275 19529-30020 Clamp
17275 90460-67008 Clamp Or Clip(For Air Hose, No.1)
17298 17298-30040 Stay, Compressor Elbow
17311 17311-30030 Duct, Air Inlet, No.1
17311 17311-30031 Duct, Air Inlet, No.1
17312 17312-30030 Duct, Air Inlet, No.2
17312 17312-30032 Duct, Air Inlet, No.2
17312 17312-30031 Duct, Air Inlet, No.2
17331 17331-30020 Seal, Duct Air Inlet No.1
17332 17332-30020 Seal, Duct Air Inlet No.2
17341 17341-30071 Hose, Air, No.1
17342 17342-30062 Hose, Air, No.2(For Intercooler)
17343 17343-30022 Hose, Air, No.3
17343 17343-30023 Hose, Air, No.3
17344 17344-30030 Hose, Air, No.4
17344 17344-30031 Hose, Air, No.4
17344 90460-77002 Clamp Or Clip(For Air Hose, No.1)
17360 17360-30011 Tube Assy, Air
17361 17361-30021 Tube, Air, No.1
17362 17362-30011 Tube, Air, No.2
17369 17369-30010 Bracket, Air Tube Support
17369 17369-30020 Bracket, Air Tube Support
17700 17700-30250 Cleaner Assy, Air
17700 17700-30251 Cleaner Assy, Air
17700 17700-30252 Cleaner Assy, Air
17700 17700-30280 Cleaner Assy, Air
17700 17700-30281 Cleaner Assy, Air
17700 17700-30282 CLEANER ASSY AIR
17705 17705-30140 Cap Sub-Assy, Air Cleaner
17705 17705-30141 CAP SUBASSY AIR
17710 90480-16021 Grommet
17751 17750-30010 Inlet, Air Cleaner, No.1
17751 17750-30040 Inlet, Air Cleaner, No.1
17801 17801-30060 Element Sub-Assy, Air Cleaner Filter
17805 17805-30020 Connector Sub-Assy, Intake Air
17805 90460-67004 Clamp Or Clip(For Air Hose, No.1)
17880 90460-80006 Clamp, Hose
17880 96111-10800 Clamp, Hose(For Air Cleaner Duct)
17881 17881-30110 Hose, Air Cleaner, No.1
17881 17881-30150 Hose, Air Cleaner, No.1
17881 96111-10900 Clamp, Hose
17881 17881-30130 Hose, Air Cleaner, No.1
17881 17881-30131 Hose, Air Cleaner, No.1
17940 17940-30050 Intercooler Assy
17945 17945-30050 Bracket, Intercooler Support
22204 22204-30020 Meter Sub-Assy, Intake Air Flow
91631 91631-B0616 BOLT WWASHER
91635 91635-B0835 New Genuine Part
887182 88718-2F110 Clamp(For Cooler Refrigerant Hose), No.1
9094901 90949-01B66 New Genuine Part
1225130010 12251-30010 Clamp, Ventilation Tube
5395595402 53955-95402 Cushion, Air Cleaner Inlet
9009900289 90099-00289 SCREW
9011906953 90119-06953 BOLT WWASHER
9017908057 90179-08057 NUT
9017908068 90179-08068 NUT
9025313002 90253-13002 Pin, Ring(For Chain Cace)
9038909025 90389-09025 Bush(For Air Tube Support)
9046070003 90460-70003 Clamp Or Clip(For Air Hose, No.1)
9046400795 90464-00795 New Genuine Part
9046607002 90466-07002 Clamp Or Clip(For Air Hose)
9046709185 90467-09185 CLIPS
9046907015 90469-07015 Clamp, No.2(For Air Tube, No.2)
9048016039 90480-16039 Grommet
9155180620 91551-80620 Bolt
9155380810 91553-80810 New Genuine Part
9155380812 91553-80812 New Genuine Part
9163140835 91631-40835 New Genuine Part
9163160622 91631-60622 Screw
9163160825 91631-60825 BOLT WWASHER
9415180800 94151-80800 Nut (For Transmission Control Cable)
9613240700 96132-40700 Clip(For Fuel Vapor Feed Hose)
