Search › Model › KDH206

KDH206

Toyota HIACE · 2007 · 4,632 parts · 223 categories

4,632 items

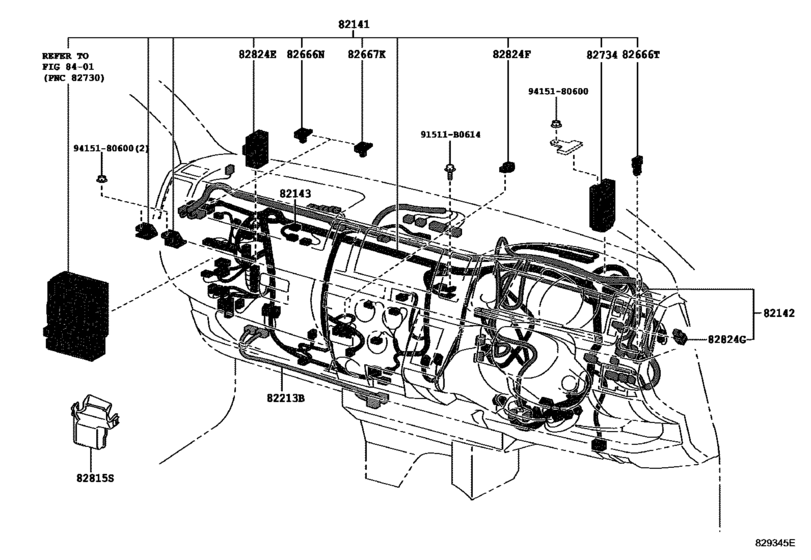

Wiring & Clamp ([12.2013 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1312- )) 48

#	OEM	Part name
82141	82141-26773	Wire, Instrument Panel
82141	82141-26774	Wire, Instrument Panel
82141	82141-26870	Wire, Instrument Panel
82141	82141-26871	Wire, Instrument Panel
82141	82141-26D00	Wire, Instrument Panel
82141	82141-26D01	Wire, Instrument Panel
82141	82141-26D02	Wire, Instrument Panel
82141	82141-26D10	Wire, Instrument Panel
82141	82141-26D11	Wire, Instrument Panel
82141	82141-26D12	Wire, Instrument Panel
82141	82141-26C70	Wire, Instrument Panel
82141	82141-26C71	Wire, Instrument Panel
82141	82141-26C72	Wire, Instrument Panel
82141	82141-26C73	Wire, Instrument Panel
82141	82141-26C90	Wire, Instrument Panel
82141	82141-26C91	Wire, Instrument Panel
82141	82141-26C92	Wire, Instrument Panel
82142	82142-26126	Wire, Instrument Panel, No.2
82142	82142-26127	Wire, Instrument Panel, No.2
82142	82142-26145	Wire, Instrument Panel, No.2
82142	82142-26146	Wire, Instrument Panel, No.2
82142	82142-26154	Wire, Instrument Panel, No.2
82142	82142-26155	Wire, Instrument Panel, No.2
82142	82142-26342	Wire, Instrument Panel, No.2
82142	82142-26343	Wire, Instrument Panel, No.2
82142	82142-26390	Wire, Instrument Panel, No.2
82142	82142-26391	Wire, Instrument Panel, No.2
82142	82142-26400	Wire, Instrument Panel, No.2
82142	82142-26401	Wire, Instrument Panel, No.2
82142	82142-26410	Wire, Instrument Panel, No.2
82142	82142-26411	Wire, Instrument Panel, No.2
82142	82142-26420	Wire, Instrument Panel, No.2
82142	82142-26421	Wire, Instrument Panel, No.2
82142	82142-26025	Wire, Instrument Panel, No.2
82142	82142-26026	Wire, Instrument Panel, No.2
82143	82143-26022	Wire, Instrument Panel, No.3
82213	82213-26020	Wire, Heater
82666	82666-26350	Holder, Connector No.10
82666	82666-26380	Holder, Connector No.10
82666	82666-26180	Holder, Connector No.3
82667	82666-60C10	Holder, Connector No.4 - CONNECTOR NO.14
82734	82734-26060	Block, Center Junction
82815	82815-26851	Cover, Wiring Harness Protector, No.15
82824	82824-33520	Connector, Wiring Harness
82824	82824-26220	Connector, Wiring Harness
82824	82824-26200	Connector, Wiring Harness
91511	91511-B0614	BOLT, FLANGE
9415180600	94151-80600	Nut, Cap(For Cylinder Head Cover)

OEM	Part name	Category
82141-26773	Wire, Instrument Panel	Wiring & Clamp ([12.2013 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1312- ))
82141-26774	Wire, Instrument Panel	Wiring & Clamp ([12.2013 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1312- ))
82141-26870	Wire, Instrument Panel	Wiring & Clamp ([12.2013 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1312- ))
82141-26871	Wire, Instrument Panel	Wiring & Clamp ([12.2013 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1312- ))
82141-26C70	Wire, Instrument Panel	Wiring & Clamp ([12.2013 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1312- ))
82141-26C71	Wire, Instrument Panel	Wiring & Clamp ([12.2013 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1312- ))
82141-26C72	Wire, Instrument Panel	Wiring & Clamp ([12.2013 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1312- ))
82141-26C73	Wire, Instrument Panel	Wiring & Clamp ([12.2013 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1312- ))
82141-26C90	Wire, Instrument Panel	Wiring & Clamp ([12.2013 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1312- ))
82141-26C91	Wire, Instrument Panel	Wiring & Clamp ([12.2013 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1312- ))
82141-26C92	Wire, Instrument Panel	Wiring & Clamp ([12.2013 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1312- ))
82141-26D00	Wire, Instrument Panel	Wiring & Clamp ([12.2013 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1312- ))
82141-26D01	Wire, Instrument Panel	Wiring & Clamp ([12.2013 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1312- ))
82141-26D02	Wire, Instrument Panel	Wiring & Clamp ([12.2013 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1312- ))
82141-26D10	Wire, Instrument Panel	Wiring & Clamp ([12.2013 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1312- ))
82141-26D11	Wire, Instrument Panel	Wiring & Clamp ([12.2013 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1312- ))
82141-26D12	Wire, Instrument Panel	Wiring & Clamp ([12.2013 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1312- ))
82142-26025	Wire, Instrument Panel, No.2	Wiring & Clamp ([12.2013 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1312- ))
82142-26026	Wire, Instrument Panel, No.2	Wiring & Clamp ([12.2013 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1312- ))
82142-26126	Wire, Instrument Panel, No.2	Wiring & Clamp ([12.2013 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1312- ))
82142-26127	Wire, Instrument Panel, No.2	Wiring & Clamp ([12.2013 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1312- ))
82142-26145	Wire, Instrument Panel, No.2	Wiring & Clamp ([12.2013 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1312- ))
82142-26146	Wire, Instrument Panel, No.2	Wiring & Clamp ([12.2013 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1312- ))
82142-26154	Wire, Instrument Panel, No.2	Wiring & Clamp ([12.2013 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1312- ))
82142-26155	Wire, Instrument Panel, No.2	Wiring & Clamp ([12.2013 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1312- ))
82142-26342	Wire, Instrument Panel, No.2	Wiring & Clamp ([12.2013 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1312- ))
82142-26343	Wire, Instrument Panel, No.2	Wiring & Clamp ([12.2013 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1312- ))
82142-26390	Wire, Instrument Panel, No.2	Wiring & Clamp ([12.2013 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1312- ))
82142-26391	Wire, Instrument Panel, No.2	Wiring & Clamp ([12.2013 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1312- ))
82142-26400	Wire, Instrument Panel, No.2	Wiring & Clamp ([12.2013 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1312- ))
82142-26401	Wire, Instrument Panel, No.2	Wiring & Clamp ([12.2013 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1312- ))
82142-26410	Wire, Instrument Panel, No.2	Wiring & Clamp ([12.2013 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1312- ))
82142-26411	Wire, Instrument Panel, No.2	Wiring & Clamp ([12.2013 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1312- ))
82142-26420	Wire, Instrument Panel, No.2	Wiring & Clamp ([12.2013 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1312- ))
82142-26421	Wire, Instrument Panel, No.2	Wiring & Clamp ([12.2013 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1312- ))
82143-26022	Wire, Instrument Panel, No.3	Wiring & Clamp ([12.2013 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1312- ))
82213-26020	Wire, Heater	Wiring & Clamp ([12.2013 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1312- ))
82666-26180	Holder, Connector No.3	Wiring & Clamp ([12.2013 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1312- ))
82666-26350	Holder, Connector No.10	Wiring & Clamp ([12.2013 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1312- ))
82666-26380	Holder, Connector No.10	Wiring & Clamp ([12.2013 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1312- ))
82666-60C10	Holder, Connector No.4 - CONNECTOR NO.14	Wiring & Clamp ([12.2013 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1312- ))
82734-26060	Block, Center Junction	Wiring & Clamp ([12.2013 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1312- ))
82815-26851	Cover, Wiring Harness Protector, No.15	Wiring & Clamp ([12.2013 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1312- ))
82824-26200	Connector, Wiring Harness	Wiring & Clamp ([12.2013 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1312- ))
82824-26220	Connector, Wiring Harness	Wiring & Clamp ([12.2013 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1312- ))
82824-33520	Connector, Wiring Harness	Wiring & Clamp ([12.2013 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1312- ))
91511-B0614	BOLT, FLANGE	Wiring & Clamp ([12.2013 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1312- ))
94151-80600	Nut, Cap(For Cylinder Head Cover)	Wiring & Clamp ([12.2013 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1312- ))

Source: Public OEM parts-catalog data
Variants: 2 / 36
Category: 223
Collected: 2026-08-03
