Search › Model › KDH206
KDH206

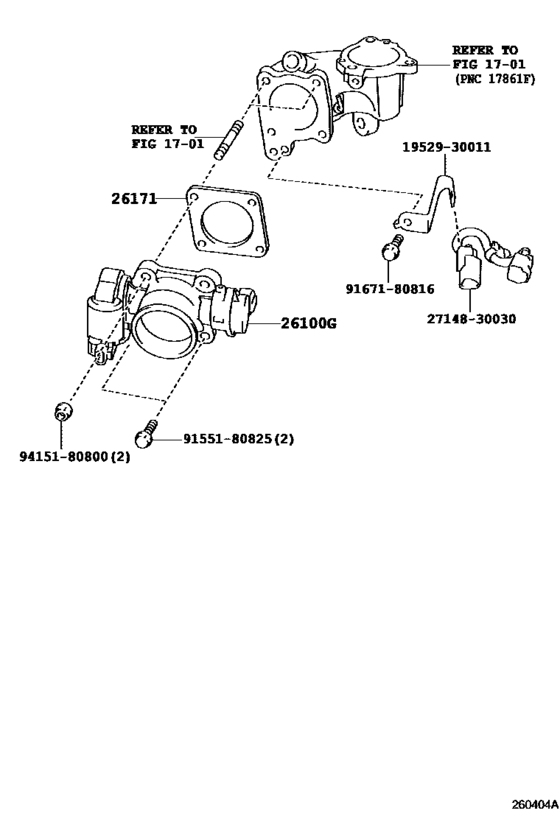

Venturi ([12.2013 - ] (1312- )1KDFTV) 7
| # | OEM | Part name |
|---|---|---|
| 26100 | 26100-30060 | Body Assy, Diesel Throttle |
| 26171 | 26171-30020 | Gasket, Venturi |
| 1952930011 | 19529-30011 | Clamp |
| 2714830030 | 27148-30030 | Wire, Alternator Connecting |
| 9155180825 | 91551-80825 | Bolt(For Cylinder Head Set Sub) |
| 9167180816 | 91671-80816 | Bolt (For Transmission Control Cable Bracket) |
| 9415180800 | 94151-80800 | Nut (For Transmission Control Cable) |
| OEM | Part name | Category |
|---|---|---|
| 19529-30011 | Clamp | Venturi ([12.2013 - ] (1312- )1KDFTV) |
| 26100-30060 | Body Assy, Diesel Throttle | Venturi ([12.2013 - ] (1312- )1KDFTV) |
| 26171-30020 | Gasket, Venturi | Venturi ([12.2013 - ] (1312- )1KDFTV) |
| 27148-30030 | Wire, Alternator Connecting | Venturi ([12.2013 - ] (1312- )1KDFTV) |
| 91551-80825 | Bolt(For Cylinder Head Set Sub) | Venturi ([12.2013 - ] (1312- )1KDFTV) |
| 91671-80816 | Bolt (For Transmission Control Cable Bracket) | Venturi ([12.2013 - ] (1312- )1KDFTV) |
| 94151-80800 | Nut (For Transmission Control Cable) | Venturi ([12.2013 - ] (1312- )1KDFTV) |
