Search › Model › KDH206

KDH206

Toyota HIACE · 2007 · 4,632 parts · 223 categories

4,632 items

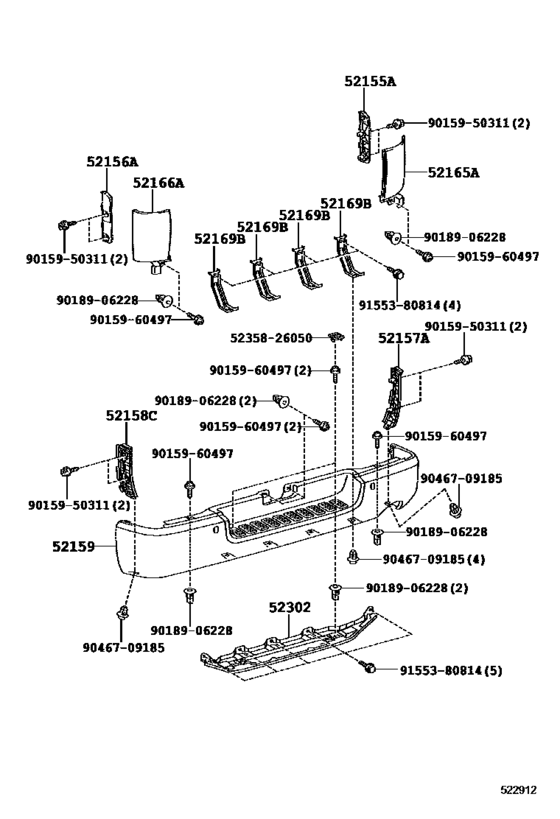

Rear Bumper & Bumper Stay ([12.2013 - ] ｱﾘ(ｽﾃｯﾌﾟ) (1312- )02S,03S,05S,06S,09S..CBU,IV5) 40

#	OEM	Part name
52155	52155-26150	Support, Rear Bumper Side, Rh
52156	52156-26010	Support, Rear Bumper Side, Lh
52157	52157-26010	Support, Rear Bumper Side, No.2 Rh
52158	52158-26010	Support, Rear Bumper Side, No.2 Lh
52159	52159-26510-A0	Cover, Rear Bumper
52159	52159-26510-A1	Cover, Rear Bumper
52159	52159-26510-B0	Cover, Rear Bumper
52159	52159-26510-B1	Cover, Rear Bumper
52159	52159-26510-C0	Cover, Rear Bumper
52159	52159-26510-C1	Cover, Rear Bumper
52159	52159-26510-D0	Cover, Rear Bumper
52159	52159-26510-J0	Cover, Rear Bumper
52159	52159-26490	Cover, Rear Bumper
52165	52165-26030-A1	Cover, Rear Bumper, Upr Rh
52165	52165-26030-B0	Cover, Rear Bumper, Upr Rh
52165	52165-26030-B1	Cover, Rear Bumper, Upr Rh
52165	52165-26030-C0	Cover, Rear Bumper, Upr Rh
52165	52165-26030-C2	Cover, Rear Bumper, Upr Rh
52165	52165-26030-D0	Cover, Rear Bumper, Upr Rh
52165	52165-26030-J0	Cover, Rear Bumper, Upr Rh
52165	52165-26040-A0	Cover, Rear Bumper, Upr Rh
52165	52165-26030-F1	Cover, Rear Bumper, Upr Rh
52166	52166-26030-A1	Cover, Rear Bumper, Upr Lh
52166	52166-26030-B0	Cover, Rear Bumper, Upr Lh
52166	52166-26030-B1	Cover, Rear Bumper, Upr Lh
52166	52166-26030-C0	Cover, Rear Bumper, Upr Lh
52166	52166-26030-C2	Cover, Rear Bumper, Upr Lh
52166	52166-26030-D0	Cover, Rear Bumper, Upr Lh
52166	52166-26030-J0	Cover, Rear Bumper, Upr Lh
52166	52166-26040-A0	Cover, Rear Bumper, Upr Lh
52166	52166-26030-F1	Cover, Rear Bumper, Upr Lh
52169	58385-26070	Bracket, Rear Bumper, Center
52302	52302-26010	Step Sub-Assy, Back
5235826050	52358-26050	Shutter, Rear Cross To Bumper
9015950311	90159-50311	SCREW
9015950311	90159-A0034	SCREW WWASHER
9015960497	90159-60497	SCREW WWASHER
9018906228	90189-06228	Grommet(For Rear Bumper)
9046709185	90467-09185	CLIPS
9155380814	91553-80814	BOLT FLANGE

OEM	Part name	Category
52155-26150	Support, Rear Bumper Side, Rh	Rear Bumper & Bumper Stay ([12.2013 - ] ｱﾘ(ｽﾃｯﾌﾟ) (1312- )02S,03S,05S,06S,09S..CBU,IV5)
52156-26010	Support, Rear Bumper Side, Lh	Rear Bumper & Bumper Stay ([12.2013 - ] ｱﾘ(ｽﾃｯﾌﾟ) (1312- )02S,03S,05S,06S,09S..CBU,IV5)
52157-26010	Support, Rear Bumper Side, No.2 Rh	Rear Bumper & Bumper Stay ([12.2013 - ] ｱﾘ(ｽﾃｯﾌﾟ) (1312- )02S,03S,05S,06S,09S..CBU,IV5)
52158-26010	Support, Rear Bumper Side, No.2 Lh	Rear Bumper & Bumper Stay ([12.2013 - ] ｱﾘ(ｽﾃｯﾌﾟ) (1312- )02S,03S,05S,06S,09S..CBU,IV5)
52159-26490	Cover, Rear Bumper	Rear Bumper & Bumper Stay ([12.2013 - ] ｱﾘ(ｽﾃｯﾌﾟ) (1312- )02S,03S,05S,06S,09S..CBU,IV5)
52159-26510-A0	Cover, Rear Bumper	Rear Bumper & Bumper Stay ([12.2013 - ] ｱﾘ(ｽﾃｯﾌﾟ) (1312- )02S,03S,05S,06S,09S..CBU,IV5)
52159-26510-A1	Cover, Rear Bumper	Rear Bumper & Bumper Stay ([12.2013 - ] ｱﾘ(ｽﾃｯﾌﾟ) (1312- )02S,03S,05S,06S,09S..CBU,IV5)
52159-26510-B0	Cover, Rear Bumper	Rear Bumper & Bumper Stay ([12.2013 - ] ｱﾘ(ｽﾃｯﾌﾟ) (1312- )02S,03S,05S,06S,09S..CBU,IV5)
52159-26510-B1	Cover, Rear Bumper	Rear Bumper & Bumper Stay ([12.2013 - ] ｱﾘ(ｽﾃｯﾌﾟ) (1312- )02S,03S,05S,06S,09S..CBU,IV5)
52159-26510-C0	Cover, Rear Bumper	Rear Bumper & Bumper Stay ([12.2013 - ] ｱﾘ(ｽﾃｯﾌﾟ) (1312- )02S,03S,05S,06S,09S..CBU,IV5)
52159-26510-C1	Cover, Rear Bumper	Rear Bumper & Bumper Stay ([12.2013 - ] ｱﾘ(ｽﾃｯﾌﾟ) (1312- )02S,03S,05S,06S,09S..CBU,IV5)
52159-26510-D0	Cover, Rear Bumper	Rear Bumper & Bumper Stay ([12.2013 - ] ｱﾘ(ｽﾃｯﾌﾟ) (1312- )02S,03S,05S,06S,09S..CBU,IV5)
52159-26510-J0	Cover, Rear Bumper	Rear Bumper & Bumper Stay ([12.2013 - ] ｱﾘ(ｽﾃｯﾌﾟ) (1312- )02S,03S,05S,06S,09S..CBU,IV5)
52165-26030-A1	Cover, Rear Bumper, Upr Rh	Rear Bumper & Bumper Stay ([12.2013 - ] ｱﾘ(ｽﾃｯﾌﾟ) (1312- )02S,03S,05S,06S,09S..CBU,IV5)
52165-26030-B0	Cover, Rear Bumper, Upr Rh	Rear Bumper & Bumper Stay ([12.2013 - ] ｱﾘ(ｽﾃｯﾌﾟ) (1312- )02S,03S,05S,06S,09S..CBU,IV5)
52165-26030-B1	Cover, Rear Bumper, Upr Rh	Rear Bumper & Bumper Stay ([12.2013 - ] ｱﾘ(ｽﾃｯﾌﾟ) (1312- )02S,03S,05S,06S,09S..CBU,IV5)
52165-26030-C0	Cover, Rear Bumper, Upr Rh	Rear Bumper & Bumper Stay ([12.2013 - ] ｱﾘ(ｽﾃｯﾌﾟ) (1312- )02S,03S,05S,06S,09S..CBU,IV5)
52165-26030-C2	Cover, Rear Bumper, Upr Rh	Rear Bumper & Bumper Stay ([12.2013 - ] ｱﾘ(ｽﾃｯﾌﾟ) (1312- )02S,03S,05S,06S,09S..CBU,IV5)
52165-26030-D0	Cover, Rear Bumper, Upr Rh	Rear Bumper & Bumper Stay ([12.2013 - ] ｱﾘ(ｽﾃｯﾌﾟ) (1312- )02S,03S,05S,06S,09S..CBU,IV5)
52165-26030-F1	Cover, Rear Bumper, Upr Rh	Rear Bumper & Bumper Stay ([12.2013 - ] ｱﾘ(ｽﾃｯﾌﾟ) (1312- )02S,03S,05S,06S,09S..CBU,IV5)
52165-26030-J0	Cover, Rear Bumper, Upr Rh	Rear Bumper & Bumper Stay ([12.2013 - ] ｱﾘ(ｽﾃｯﾌﾟ) (1312- )02S,03S,05S,06S,09S..CBU,IV5)
52165-26040-A0	Cover, Rear Bumper, Upr Rh	Rear Bumper & Bumper Stay ([12.2013 - ] ｱﾘ(ｽﾃｯﾌﾟ) (1312- )02S,03S,05S,06S,09S..CBU,IV5)
52166-26030-A1	Cover, Rear Bumper, Upr Lh	Rear Bumper & Bumper Stay ([12.2013 - ] ｱﾘ(ｽﾃｯﾌﾟ) (1312- )02S,03S,05S,06S,09S..CBU,IV5)
52166-26030-B0	Cover, Rear Bumper, Upr Lh	Rear Bumper & Bumper Stay ([12.2013 - ] ｱﾘ(ｽﾃｯﾌﾟ) (1312- )02S,03S,05S,06S,09S..CBU,IV5)
52166-26030-B1	Cover, Rear Bumper, Upr Lh	Rear Bumper & Bumper Stay ([12.2013 - ] ｱﾘ(ｽﾃｯﾌﾟ) (1312- )02S,03S,05S,06S,09S..CBU,IV5)
52166-26030-C0	Cover, Rear Bumper, Upr Lh	Rear Bumper & Bumper Stay ([12.2013 - ] ｱﾘ(ｽﾃｯﾌﾟ) (1312- )02S,03S,05S,06S,09S..CBU,IV5)
52166-26030-C2	Cover, Rear Bumper, Upr Lh	Rear Bumper & Bumper Stay ([12.2013 - ] ｱﾘ(ｽﾃｯﾌﾟ) (1312- )02S,03S,05S,06S,09S..CBU,IV5)
52166-26030-D0	Cover, Rear Bumper, Upr Lh	Rear Bumper & Bumper Stay ([12.2013 - ] ｱﾘ(ｽﾃｯﾌﾟ) (1312- )02S,03S,05S,06S,09S..CBU,IV5)
52166-26030-F1	Cover, Rear Bumper, Upr Lh	Rear Bumper & Bumper Stay ([12.2013 - ] ｱﾘ(ｽﾃｯﾌﾟ) (1312- )02S,03S,05S,06S,09S..CBU,IV5)
52166-26030-J0	Cover, Rear Bumper, Upr Lh	Rear Bumper & Bumper Stay ([12.2013 - ] ｱﾘ(ｽﾃｯﾌﾟ) (1312- )02S,03S,05S,06S,09S..CBU,IV5)
52166-26040-A0	Cover, Rear Bumper, Upr Lh	Rear Bumper & Bumper Stay ([12.2013 - ] ｱﾘ(ｽﾃｯﾌﾟ) (1312- )02S,03S,05S,06S,09S..CBU,IV5)
52302-26010	Step Sub-Assy, Back	Rear Bumper & Bumper Stay ([12.2013 - ] ｱﾘ(ｽﾃｯﾌﾟ) (1312- )02S,03S,05S,06S,09S..CBU,IV5)
52358-26050	Shutter, Rear Cross To Bumper	Rear Bumper & Bumper Stay ([12.2013 - ] ｱﾘ(ｽﾃｯﾌﾟ) (1312- )02S,03S,05S,06S,09S..CBU,IV5)
58385-26070	Bracket, Rear Bumper, Center	Rear Bumper & Bumper Stay ([12.2013 - ] ｱﾘ(ｽﾃｯﾌﾟ) (1312- )02S,03S,05S,06S,09S..CBU,IV5)
90159-50311	SCREW	Rear Bumper & Bumper Stay ([12.2013 - ] ｱﾘ(ｽﾃｯﾌﾟ) (1312- )02S,03S,05S,06S,09S..CBU,IV5)
90159-60497	SCREW WWASHER	Rear Bumper & Bumper Stay ([12.2013 - ] ｱﾘ(ｽﾃｯﾌﾟ) (1312- )02S,03S,05S,06S,09S..CBU,IV5)
90159-A0034	SCREW WWASHER	Rear Bumper & Bumper Stay ([12.2013 - ] ｱﾘ(ｽﾃｯﾌﾟ) (1312- )02S,03S,05S,06S,09S..CBU,IV5)
90189-06228	Grommet(For Rear Bumper)	Rear Bumper & Bumper Stay ([12.2013 - ] ｱﾘ(ｽﾃｯﾌﾟ) (1312- )02S,03S,05S,06S,09S..CBU,IV5)
90467-09185	CLIPS	Rear Bumper & Bumper Stay ([12.2013 - ] ｱﾘ(ｽﾃｯﾌﾟ) (1312- )02S,03S,05S,06S,09S..CBU,IV5)
91553-80814	BOLT FLANGE	Rear Bumper & Bumper Stay ([12.2013 - ] ｱﾘ(ｽﾃｯﾌﾟ) (1312- )02S,03S,05S,06S,09S..CBU,IV5)

Source: Public OEM parts-catalog data
Variants: 2 / 36
Category: 223
Collected: 2026-08-03
