Search › Model › KDH206

KDH206

Toyota HIACE · 2007 · 4,632 parts · 223 categories

4,632 items

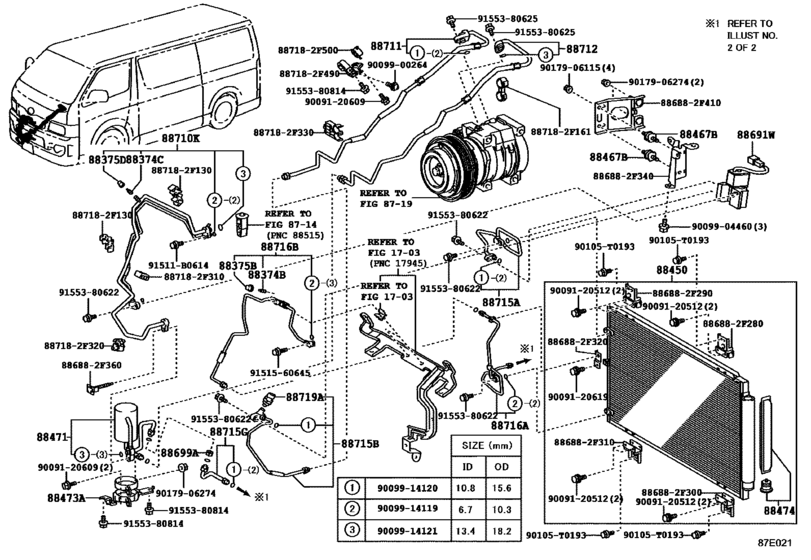

Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F) 55

#	OEM	Part name
88374	88374-30010	Valve, Service, No.1
88375	88375-30280	Cap, Service Valve (For Cooler Pipe)
88375	88375-30290	Cap, Service Valve (For Cooler Pipe)
88450	88450-26120	Condenser Assy, W/receiver
88467	88467-30270	Cushion, Cooler Condenser, No.1
88471	88471-26031	Tank, Receiver Air Conditioner
88471	88471-26021	Tank, Receiver Air Conditioner
88473	88473-26011	Holder, Receiver
88474	88474-17010	Dryer, Cooler
88691	88691-26020	Valve, Magnet
88699	88699-60010	Valve, Air
88710	88710-2F862	Tube & Accessory Assy, Air Conditioner, No.3
88711	88711-2F320	Hose, Cooler Refrigerant Discharge, No.1
88712	88712-2F370	Hose, Cooler Refrigerant Suction, No.1
88715	88715-26390	Pipe, Cooler Refrigerant Discharge, A
88715	88715-26410	Pipe, Cooler Refrigerant Discharge, A
88715	88710-2F730	Pipe, Cooler Refrigerant Discharge, B
88715	88715-26460	Tube, Discharge, G
88716	88710-2F631	Pipe, Cooler Refrigerant Liquid, A
88716	88716-2N120	Pipe, Cooler Refrigerant Liquid, B
88716	88716-2N151	Pipe, Cooler Refrigerant Liquid, B
88716	88710-2F620	Pipe, Cooler Refrigerant Liquid, A
88719	88719-33020	Sensor, Airconditioner Pressure
90105	90105-T0193	New Genuine Part
91511	91511-B0614	BOLT, FLANGE
886882	88688-2F280	Bracket, Cooler Diaphragm
886882	88688-2F290	Bracket, Cooler Diaphragm
886882	88688-2F300	Bracket, Cooler Diaphragm
886882	88688-2F310	Bracket, Cooler Diaphragm
886882	88688-2F320	Bracket, Cooler Diaphragm
886882	88688-2F340	Bracket, Cooler Diaphragm
886882	88688-2F360	Bracket, Cooler Diaphragm
886882	88688-2F410	Bracket, Cooler Diaphragm
887182	88718-2F130	Pipe, Cooler Refrigerant Suction, No.2
887182	88718-2F161	Pipe, Cooler Refrigerant Suction, No.2
887182	88718-2F310	Pipe, Cooler Refrigerant Suction, No.2
887182	88718-2F320	Pipe, Cooler Refrigerant Suction, No.2
887182	88718-2F330	Pipe, Cooler Refrigerant Suction, No.2
887182	88718-2F490	Pipe, Cooler Refrigerant Suction, No.2
887182	88718-2F500	Pipe, Cooler Refrigerant Suction, No.2
9009120512	90091-20512	BOLT WWASHER
9009120609	90091-20609	BOLT
9009120619	90091-20619	BOLT
9009900264	90099-00264	SCREW
9009904460	90099-04460	New Genuine Part
9009914119	90099-14119	Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119	90099-14119-TH	O RING
9009914120	90099-14120	O-Ring, Cooler Evaporator No.1(Discharge)
9009914121	90099-14121	O-Ring, Cooler Evaporator No.1(Suction)
9017906115	90179-06115	Nut (For Rear Wiper Arm Setting)
9017906274	90179-06274	Nut
9151560645	91515-60645	New Genuine Part
9155380622	91553-80622	BOLT FLANGE
9155380625	91553-80625	New Genuine Part
9155380814	91553-80814	BOLT FLANGE

OEM	Part name	Category
88374-30010	Valve, Service, No.1	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
88375-30280	Cap, Service Valve (For Cooler Pipe)	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
88375-30290	Cap, Service Valve (For Cooler Pipe)	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
88450-26120	Condenser Assy, W/receiver	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
88467-30270	Cushion, Cooler Condenser, No.1	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
88471-26021	Tank, Receiver Air Conditioner	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
88471-26031	Tank, Receiver Air Conditioner	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
88473-26011	Holder, Receiver	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
88474-17010	Dryer, Cooler	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
88688-2F280	Bracket, Cooler Diaphragm	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
88688-2F290	Bracket, Cooler Diaphragm	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
88688-2F300	Bracket, Cooler Diaphragm	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
88688-2F310	Bracket, Cooler Diaphragm	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
88688-2F320	Bracket, Cooler Diaphragm	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
88688-2F340	Bracket, Cooler Diaphragm	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
88688-2F360	Bracket, Cooler Diaphragm	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
88688-2F410	Bracket, Cooler Diaphragm	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
88691-26020	Valve, Magnet	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
88699-60010	Valve, Air	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
88710-2F620	Pipe, Cooler Refrigerant Liquid, A	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
88710-2F631	Pipe, Cooler Refrigerant Liquid, A	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
88710-2F730	Pipe, Cooler Refrigerant Discharge, B	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
88710-2F862	Tube & Accessory Assy, Air Conditioner, No.3	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
88711-2F320	Hose, Cooler Refrigerant Discharge, No.1	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
88712-2F370	Hose, Cooler Refrigerant Suction, No.1	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
88715-26390	Pipe, Cooler Refrigerant Discharge, A	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
88715-26410	Pipe, Cooler Refrigerant Discharge, A	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
88715-26460	Tube, Discharge, G	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
88716-2N120	Pipe, Cooler Refrigerant Liquid, B	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
88716-2N151	Pipe, Cooler Refrigerant Liquid, B	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
88718-2F130	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
88718-2F161	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
88718-2F310	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
88718-2F320	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
88718-2F330	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
88718-2F490	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
88718-2F500	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
88719-33020	Sensor, Airconditioner Pressure	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
90091-20512	BOLT WWASHER	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
90091-20609	BOLT	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
90091-20619	BOLT	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
90099-00264	SCREW	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
90099-04460	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
90099-14119	Ring, O(For Cooler Refrigerant Liquid Pipe)	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
90099-14119-TH	O RING	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
90099-14120	O-Ring, Cooler Evaporator No.1(Discharge)	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
90099-14121	O-Ring, Cooler Evaporator No.1(Suction)	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
90105-T0193	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
90179-06115	Nut (For Rear Wiper Arm Setting)	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
90179-06274	Nut	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
91511-B0614	BOLT, FLANGE	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
91515-60645	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
91553-80622	BOLT FLANGE	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
91553-80625	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)
91553-80814	BOLT FLANGE	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ (1312- )KDH20#..SG ; (1312- )KDH206..SP..5 F)

Source: Public OEM parts-catalog data
Variants: 2 / 36
Category: 223
Collected: 2026-08-03
