KDH206

Toyota HIACE · 2007 · 4,632 parts · 223 categories

← Back to categories

4,632 items

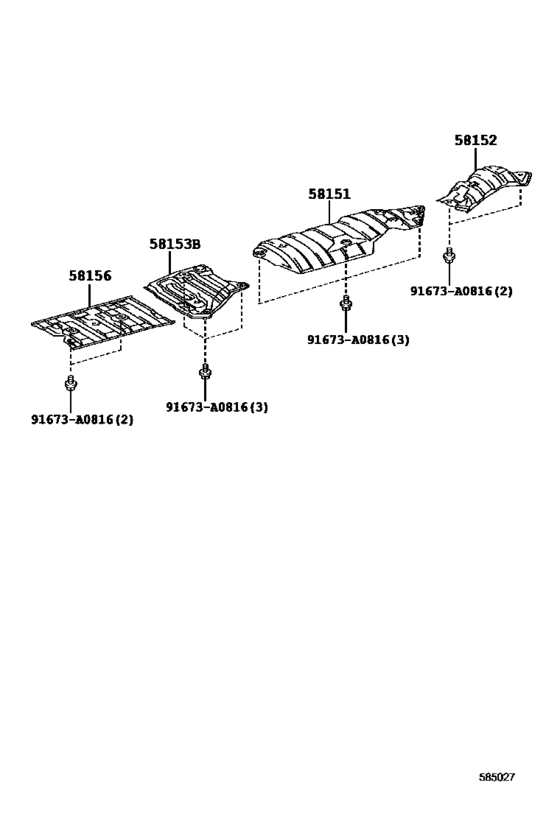

Floor Insulator ([12.2013 - ] (1312- )KDH20#,211,22#,TRH200,21#) 5

#	OEM	Part name
58151	58151-26101	Insulator, Front Floor Heat, No.1
58152	58152-26040	Insulator Sub-Assy, Center Floor Heat, No.2
58153	58153-26040	Insulator, Floor Heat, No.3
58156	58156-26031	Insulator, Front Floor Heat, No.4
91673	91673-A0816	BOLT FLANGE

OEM	Part name	Category
58151-26101	Insulator, Front Floor Heat, No.1	Floor Insulator ([12.2013 - ] (1312- )KDH20#,211,22#,TRH200,21#)
58152-26040	Insulator Sub-Assy, Center Floor Heat, No.2	Floor Insulator ([12.2013 - ] (1312- )KDH20#,211,22#,TRH200,21#)
58153-26040	Insulator, Floor Heat, No.3	Floor Insulator ([12.2013 - ] (1312- )KDH20#,211,22#,TRH200,21#)
58156-26031	Insulator, Front Floor Heat, No.4	Floor Insulator ([12.2013 - ] (1312- )KDH20#,211,22#,TRH200,21#)
91673-A0816	BOLT FLANGE	Floor Insulator ([12.2013 - ] (1312- )KDH20#,211,22#,TRH200,21#)
