Search › Model › KDH206
KDH206

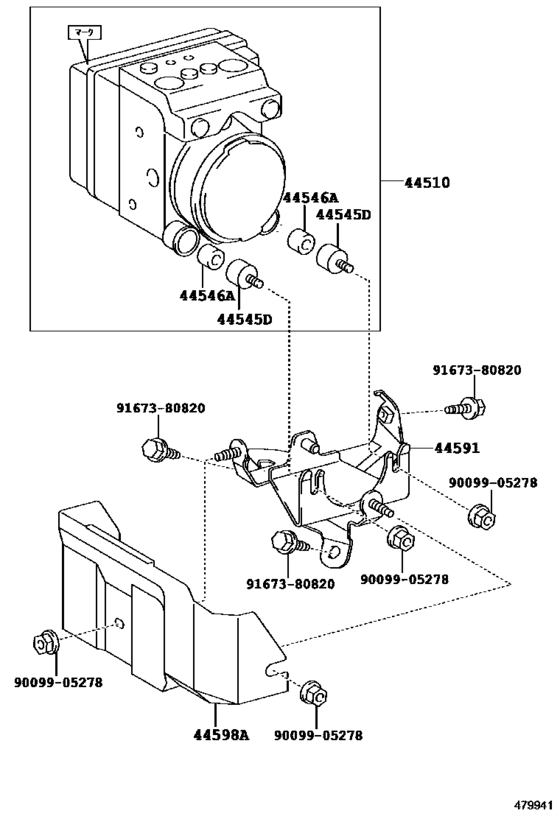

Brake Tube & Clamp ([12.2013 - ] ｱﾘ(ABS) (1312- )) 8
| # | OEM | Part name |
|---|---|---|
| 44510 | 44050-26112 | Actuator Assy, Brake |
| 44510 | 44050-26210 | Actuator Assy, Brake |
| 44545 | 44545-12010 | Holder, Brake Actuator Bolt |
| 44546 | 44546-60060 | Cushion, Brake Actuator Bolt |
| 44591 | 44590-26040 | Bracket, Brake Actuator, No.1 |
| 44598 | 44598-26010 | Cover, Brake Actuator |
| 9009905278 | 90099-05278 | New Genuine Part |
| 9167380820 | 91673-80820 | Bolt (For Transmission Control Cable Bracket) |
| OEM | Part name | Category |
|---|---|---|
| 44050-26112 | Actuator Assy, Brake | Brake Tube & Clamp ([12.2013 - ] ｱﾘ(ABS) (1312- )) |
| 44050-26210 | Actuator Assy, Brake | Brake Tube & Clamp ([12.2013 - ] ｱﾘ(ABS) (1312- )) |
| 44545-12010 | Holder, Brake Actuator Bolt | Brake Tube & Clamp ([12.2013 - ] ｱﾘ(ABS) (1312- )) |
| 44546-60060 | Cushion, Brake Actuator Bolt | Brake Tube & Clamp ([12.2013 - ] ｱﾘ(ABS) (1312- )) |
| 44590-26040 | Bracket, Brake Actuator, No.1 | Brake Tube & Clamp ([12.2013 - ] ｱﾘ(ABS) (1312- )) |
| 44598-26010 | Cover, Brake Actuator | Brake Tube & Clamp ([12.2013 - ] ｱﾘ(ABS) (1312- )) |
| 90099-05278 | New Genuine Part | Brake Tube & Clamp ([12.2013 - ] ｱﾘ(ABS) (1312- )) |
| 91673-80820 | Bolt (For Transmission Control Cable Bracket) | Brake Tube & Clamp ([12.2013 - ] ｱﾘ(ABS) (1312- )) |
