Search › Model › KDH206

KDH206

Toyota HIACE · 2007 · 4,632 parts · 223 categories

4,632 items

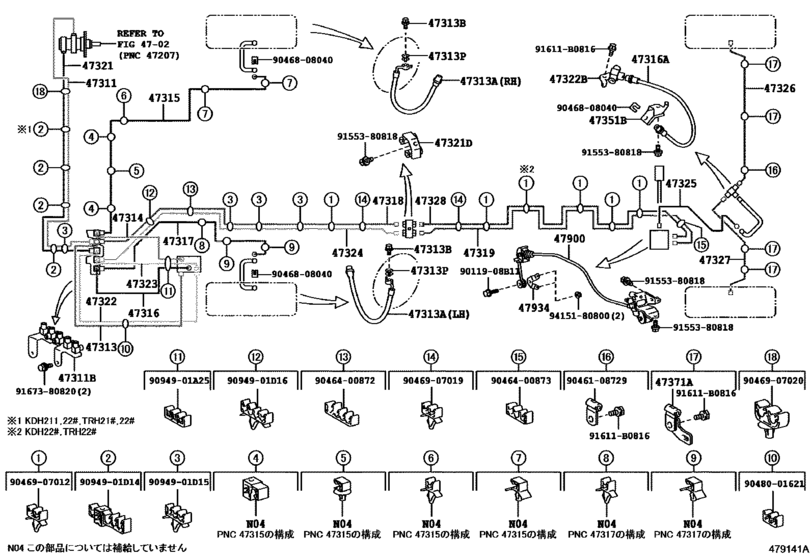

Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501)) 68

#	OEM	Part name
47311	47311-26A00	Tube, Front Brake, No.1
47311	47311-26A30	Tube, Front Brake, No.1
47311	47311-26B30	Tube, Front Brake, No.1
47311	90413-10305	Way, No.1(For Front Brake Tube)
47311	90413-10338	Way, No.1(For Front Brake Tube)
47313	47313-26320	Tube, Front Brake, No.3
47313	47313-26390	Tube, Front Brake, No.3
47313	90947-02D95	Hose, Flexible, No.1(For Front)
47313	90947-02D96	Hose, Flexible, No.1(For Front)
47313	90947-02H55	Hose, Flexible, No.1(For Front)
47313	90947-02H56	Hose, Flexible, No.1(For Front)
47313	90401-10058	Bolt, Union(For Front Flexible Hose)
47313	47389-50020	Gasket(For Front Flexible Hose)
47314	47314-26370	Tube, Front Brake, No.4
47314	47314-26390	Tube, Front Brake, No.4
47315	47315-26310	Tube, Front Brake, No.5
47315	47315-26350	Tube, Front Brake, No.5
47316	47316-26470	Tube, Front Brake, No.6
47316	47316-26490	Tube, Front Brake, No.6
47316	90947-02F56	Hose, Flexible(For Rear Brake Tube)
47316	90947-02H57	Hose, Flexible(For Rear Brake Tube)
47317	47317-26350	Tube, Front Brake, No.7
47317	47317-26370	Tube, Front Brake, No.7
47318	47318-26280	Tube, Front Brake, No.8
47319	47319-26350	Tube, Front Brake, No.9
47321	47321-26750	Tube, Rear Brake, No.1
47321	47321-26780	Tube, Rear Brake, No.1
47321	47321-26850	Tube, Rear Brake, No.1
47321	90412-10166	Way, No.1(For Rear Brake Tube)
47321	90412-10285	Way, No.1(For Front Brake Tube)
47322	47322-26420	Tube, Rear Brake, No.2
47322	47322-26430	Tube, Rear Brake, No.2
47322	90413-10307	Way, No.2(For Rear Brake Tube)
47322	90413-10337	Way, No.2(For Rear Brake Tube)
47323	47323-26410	Tube, Rear Brake, No.3
47323	47323-26420	Tube, Rear Brake, No.3
47324	47324-26550	Tube, Front Brake, No.9
47324	47324-26570	Tube, Rear Brake, No.4
47324	47324-26571	Tube, Rear Brake, No.4
47325	47325-26400	Tube, Rear Brake, No.5
47325	47325-26420	Tube, Rear Brake, No.5
47326	47326-26470	Tube, Rear Brake, No.6
47326	47326-26500	Tube, Rear Brake, No.6
47327	47327-26320	Tube, Rear Brake, No.7
47327	47327-26350	Tube, Rear Brake, No.7
47328	47328-26150	Tube, Rear Brake, No.8
47328	47328-26170	Tube, Rear Brake, No.8
47351	47351-26210	Bracket, Flexible Hose, No.1
47371	47371-26200	Clamp, Brake Tube, No.1
47900	47900-26510	Valve Assy, Load Sensing W/spring
47934	47934-26110	Bracket, Load Sensing
91611	91611-B0816	Bolt
9011908	90119-08B11	BOLT WWASHER
9094901	90949-01A25	Clamp, Brake Tube, No.1
9094901	90949-01D14	CLAMP
9094901	90949-01D15	CLAMP
9094901	90949-01D16	Clamp, Brake Tube, No.3
9046108729	90461-08729	New Genuine Part
9046400872	90464-00872	New Genuine Part
9046400873	90464-00873	CLAMP
9046808040	90468-08040	CLIP
9046907012	90469-07012	Clamp Or Clip(For Air Hose, No.5)
9046907019	90469-07019	Clamp, Brake Tube, No.1
9046907020	90469-07020	Clamp, Brake Tube, No.6
9048001621	90480-01621	Grommet(For Front Brake Tube)
9155380818	91553-80818	BOLT FLANGE
9167380820	91673-80820	Bolt (For Transmission Control Cable Bracket)
9415180800	94151-80800	Nut (For Transmission Control Cable)

OEM	Part name	Category
47311-26A00	Tube, Front Brake, No.1	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
47311-26A30	Tube, Front Brake, No.1	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
47311-26B30	Tube, Front Brake, No.1	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
47313-26320	Tube, Front Brake, No.3	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
47313-26390	Tube, Front Brake, No.3	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
47314-26370	Tube, Front Brake, No.4	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
47314-26390	Tube, Front Brake, No.4	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
47315-26310	Tube, Front Brake, No.5	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
47315-26350	Tube, Front Brake, No.5	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
47316-26470	Tube, Front Brake, No.6	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
47316-26490	Tube, Front Brake, No.6	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
47317-26350	Tube, Front Brake, No.7	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
47317-26370	Tube, Front Brake, No.7	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
47318-26280	Tube, Front Brake, No.8	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
47319-26350	Tube, Front Brake, No.9	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
47321-26750	Tube, Rear Brake, No.1	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
47321-26780	Tube, Rear Brake, No.1	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
47321-26850	Tube, Rear Brake, No.1	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
47322-26420	Tube, Rear Brake, No.2	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
47322-26430	Tube, Rear Brake, No.2	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
47323-26410	Tube, Rear Brake, No.3	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
47323-26420	Tube, Rear Brake, No.3	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
47324-26550	Tube, Front Brake, No.9	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
47324-26570	Tube, Rear Brake, No.4	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
47324-26571	Tube, Rear Brake, No.4	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
47325-26400	Tube, Rear Brake, No.5	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
47325-26420	Tube, Rear Brake, No.5	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
47326-26470	Tube, Rear Brake, No.6	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
47326-26500	Tube, Rear Brake, No.6	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
47327-26320	Tube, Rear Brake, No.7	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
47327-26350	Tube, Rear Brake, No.7	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
47328-26150	Tube, Rear Brake, No.8	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
47328-26170	Tube, Rear Brake, No.8	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
47351-26210	Bracket, Flexible Hose, No.1	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
47371-26200	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
47389-50020	Gasket(For Front Flexible Hose)	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
47900-26510	Valve Assy, Load Sensing W/spring	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
47934-26110	Bracket, Load Sensing	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
90119-08B11	BOLT WWASHER	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
90401-10058	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
90412-10166	Way, No.1(For Rear Brake Tube)	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
90412-10285	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
90413-10305	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
90413-10307	Way, No.2(For Rear Brake Tube)	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
90413-10337	Way, No.2(For Rear Brake Tube)	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
90413-10338	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
90461-08729	New Genuine Part	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
90464-00872	New Genuine Part	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
90464-00873	CLAMP	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
90468-08040	CLIP	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
90469-07012	Clamp Or Clip(For Air Hose, No.5)	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
90469-07019	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
90469-07020	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
90480-01621	Grommet(For Front Brake Tube)	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
90947-02D95	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
90947-02D96	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
90947-02F56	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
90947-02H55	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
90947-02H56	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
90947-02H57	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
90949-01A25	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
90949-01D14	CLAMP	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
90949-01D15	CLAMP	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
90949-01D16	Clamp, Brake Tube, No.3	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
91553-80818	BOLT FLANGE	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
91611-B0816	Bolt	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
91673-80820	Bolt (For Transmission Control Cable Bracket)	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
94151-80800	Nut (For Transmission Control Cable)	Brake Tube & Clamp ([12.2013 - 01.2015] (1312-1501))
