Search › Model › KDH206
KDH206

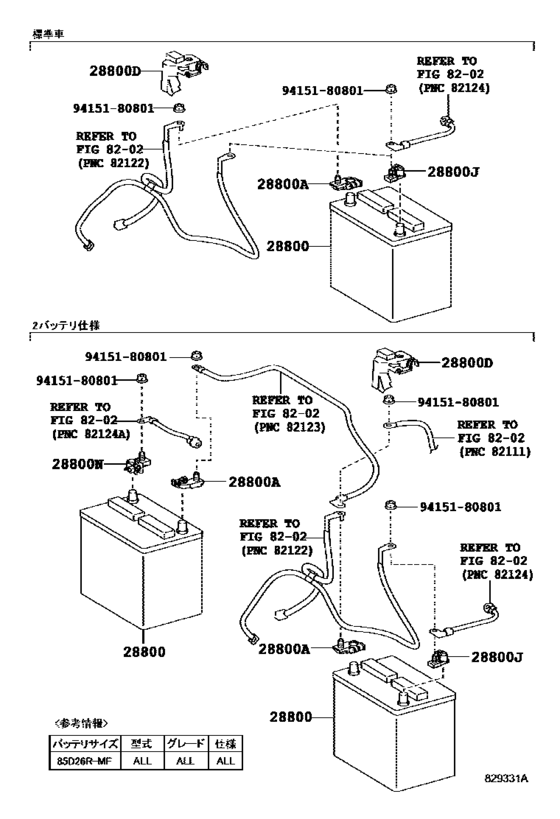

Battery & Battery Cable ([12.2013 - ] (1312- )KDH20#,211,22#) 5
| # | OEM | Part name |
|---|---|---|
| 28800 | 28800-67131 | Battery |
| 28800 | 90982-05064 | Terminal, Battery Positive |
| 28800 | 82821-26150 | Cover, Connector(For Battery Terminal) |
| 28800 | 90982-06056 | Terminal, Battery Negative |
| 9415180801 | 94151-80801 | NUT FLANGE |
| OEM | Part name | Category |
|---|---|---|
| 28800-67131 | Battery | Battery & Battery Cable ([12.2013 - ] (1312- )KDH20#,211,22#) |
| 82821-26150 | Cover, Connector(For Battery Terminal) | Battery & Battery Cable ([12.2013 - ] (1312- )KDH20#,211,22#) |
| 90982-05064 | Terminal, Battery Positive | Battery & Battery Cable ([12.2013 - ] (1312- )KDH20#,211,22#) |
| 90982-06056 | Terminal, Battery Negative | Battery & Battery Cable ([12.2013 - ] (1312- )KDH20#,211,22#) |
| 94151-80801 | NUT FLANGE | Battery & Battery Cable ([12.2013 - ] (1312- )KDH20#,211,22#) |
