Search › Model › KDH206

KDH206

Toyota HIACE · 2007 · 4,632 parts · 223 categories

4,632 items

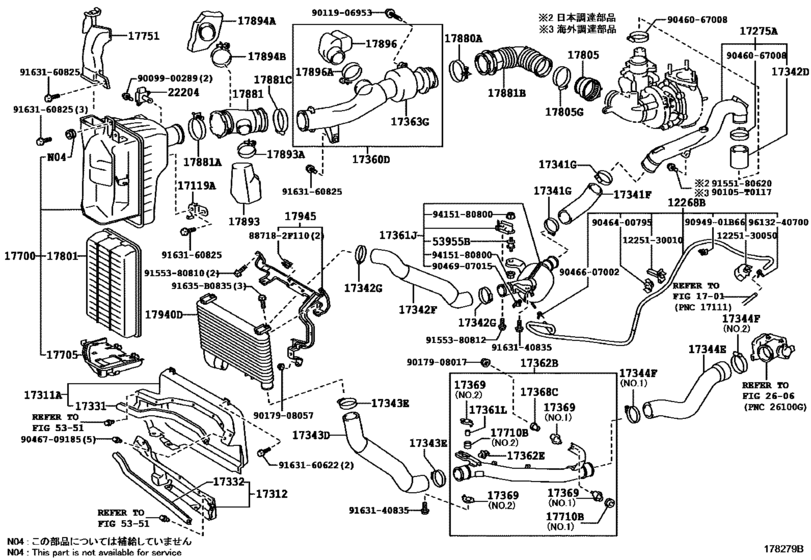

Air Cleaner ([12.2013 - ] (1312- )1KDFTV) 70

#	OEM	Part name
12268	12268-30070	Hose, Oil Return
17119	17119-30020	Bracket, Air Cleaner
17275	17206-30020	Elbow, Compressor Outlet
17311	17311-30050	Duct, Air Inlet, No.1
17312	17312-11010	Duct, Air Inlet, No.2
17312	17312-30021	Duct, Air Inlet, No.2
17331	17331-30030	Seal, Duct Air Inlet No.1
17332	17332-30010	Seal, Duct Air Inlet No.2
17341	17341-30081	Hose, Air, No.1
17341	90460-67008	Clamp Or Clip(For Air Hose, No.1)
17342	17342-30080	Hose, Air, No.2
17342	17342-30062	Hose, Air, No.2(For Intercooler)
17343	17343-30023	Hose, Air, No.3
17344	17344-30031	Hose, Air, No.4
17344	90460-77002	Clamp Or Clip(For Air Hose, No.1)
17360	17360-30050	Pipe Assy, Air
17361	17361-30021	Tube, Air, No.1
17361	90253-13002	Pin, Ring(For Chain Cace)
17362	17362-30021	Tube, Air, No.2
17362	90469-07015	Clamp, No.2(For Air Tube, No.2)
17363	17361-30070	Tube, Air, No.3
17368	90389-09025	Bush(For Air Tube Support)
17369	17369-30010	Bracket, Air Tube Support
17369	17369-30020	Bracket, Air Tube Support
17700	17700-30281	Cleaner Assy, Air
17700	17700-30282	CLEANER ASSY AIR
17705	17705-30140	Cap Sub-Assy, Air Cleaner
17705	17705-30141	CAP SUBASSY AIR
17710	90480-16021	Grommet
17710	90480-16039	Grommet
17751	17750-30040	Inlet, Air Cleaner, No.1
17801	17801-30060	Element Sub-Assy, Air Cleaner Filter
17805	17805-30020	Connector Sub-Assy, Intake Air
17805	90460-67004	Clamp Or Clip(For Air Hose, No.1)
17880	96111-10800	Clamp, Hose(For Air Cleaner Duct)
17881	17881-30150	Hose, Air Cleaner, No.1
17881	96111-10900	Clamp, Hose
17881	17881-30121	Hose, Air Cleaner, No.1
17893	17893-30060	Resonator, Intake Air
17893	96111-10500	Clamp, Sub Radiator Inlet Hose
17894	17894-30020	Resonator, Intake Air, No.2
17894	96111-10690	Clamp, Hose
17896	17896-30010	Resonator, Intake Air, No.3
17896	96111-10670	Clamp, Hose
17940	17940-30050	Intercooler Assy
17940	17940-30051	Intercooler Assy
17945	17945-30040	Bracket, Intercooler Support
22204	22204-30020	Meter Sub-Assy, Intake Air Flow
53955	53955-95402	Cushion, Air Cleaner Inlet
90105	90105-T0117	BOLT FLANGE
91635	91635-B0835	New Genuine Part
887182	88718-2F110	Clamp(For Cooler Refrigerant Hose), No.1
9094901	90949-01B66	New Genuine Part
1225130010	12251-30010	Clamp, Ventilation Tube
1225130050	12251-30050	Clamp, Ventilation Tube
9009900289	90099-00289	SCREW
9011906953	90119-06953	BOLT WWASHER
9017908017	90179-08017	NUT
9017908057	90179-08057	NUT
9046400795	90464-00795	New Genuine Part
9046607002	90466-07002	Clamp Or Clip(For Air Hose)
9046709185	90467-09185	CLIPS
9155180620	91551-80620	Bolt
9155380810	91553-80810	New Genuine Part
9155380812	91553-80812	New Genuine Part
9163140835	91631-40835	New Genuine Part
9163160622	91631-60622	Screw
9163160825	91631-60825	BOLT WWASHER
9415180800	94151-80800	Nut (For Transmission Control Cable)
9613240700	96132-40700	Clip(For Fuel Vapor Feed Hose)

OEM	Part name	Category
12251-30010	Clamp, Ventilation Tube	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
12251-30050	Clamp, Ventilation Tube	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
12268-30070	Hose, Oil Return	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
17119-30020	Bracket, Air Cleaner	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
17206-30020	Elbow, Compressor Outlet	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
17311-30050	Duct, Air Inlet, No.1	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
17312-11010	Duct, Air Inlet, No.2	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
17312-30021	Duct, Air Inlet, No.2	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
17331-30030	Seal, Duct Air Inlet No.1	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
17332-30010	Seal, Duct Air Inlet No.2	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
17341-30081	Hose, Air, No.1	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
17342-30062	Hose, Air, No.2(For Intercooler)	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
17342-30080	Hose, Air, No.2	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
17343-30023	Hose, Air, No.3	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
17344-30031	Hose, Air, No.4	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
17360-30050	Pipe Assy, Air	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
17361-30021	Tube, Air, No.1	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
17361-30070	Tube, Air, No.3	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
17362-30021	Tube, Air, No.2	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
17369-30010	Bracket, Air Tube Support	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
17369-30020	Bracket, Air Tube Support	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
17700-30281	Cleaner Assy, Air	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
17700-30282	CLEANER ASSY AIR	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
17705-30140	Cap Sub-Assy, Air Cleaner	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
17705-30141	CAP SUBASSY AIR	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
17750-30040	Inlet, Air Cleaner, No.1	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
17801-30060	Element Sub-Assy, Air Cleaner Filter	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
17805-30020	Connector Sub-Assy, Intake Air	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
17881-30121	Hose, Air Cleaner, No.1	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
17881-30150	Hose, Air Cleaner, No.1	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
17893-30060	Resonator, Intake Air	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
17894-30020	Resonator, Intake Air, No.2	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
17896-30010	Resonator, Intake Air, No.3	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
17940-30050	Intercooler Assy	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
17940-30051	Intercooler Assy	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
17945-30040	Bracket, Intercooler Support	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
22204-30020	Meter Sub-Assy, Intake Air Flow	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
53955-95402	Cushion, Air Cleaner Inlet	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
88718-2F110	Clamp(For Cooler Refrigerant Hose), No.1	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
90099-00289	SCREW	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
90105-T0117	BOLT FLANGE	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
90119-06953	BOLT WWASHER	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
90179-08017	NUT	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
90179-08057	NUT	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
90253-13002	Pin, Ring(For Chain Cace)	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
90389-09025	Bush(For Air Tube Support)	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
90460-67004	Clamp Or Clip(For Air Hose, No.1)	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
90460-67008	Clamp Or Clip(For Air Hose, No.1)	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
90460-77002	Clamp Or Clip(For Air Hose, No.1)	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
90464-00795	New Genuine Part	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
90466-07002	Clamp Or Clip(For Air Hose)	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
90467-09185	CLIPS	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
90469-07015	Clamp, No.2(For Air Tube, No.2)	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
90480-16021	Grommet	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
90480-16039	Grommet	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
90949-01B66	New Genuine Part	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
91551-80620	Bolt	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
91553-80810	New Genuine Part	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
91553-80812	New Genuine Part	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
91631-40835	New Genuine Part	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
91631-60622	Screw	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
91631-60825	BOLT WWASHER	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
91635-B0835	New Genuine Part	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
94151-80800	Nut (For Transmission Control Cable)	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
96111-10500	Clamp, Sub Radiator Inlet Hose	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
96111-10670	Clamp, Hose	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
96111-10690	Clamp, Hose	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
96111-10800	Clamp, Hose(For Air Cleaner Duct)	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
96111-10900	Clamp, Hose	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)
96132-40700	Clip(For Fuel Vapor Feed Hose)	Air Cleaner ([12.2013 - ] (1312- )1KDFTV)

Source: Public OEM parts-catalog data
Variants: 2 / 36
Category: 223
Collected: 2026-08-03
