KDH203

Toyota HIACE · 2006 · 4,111 parts · 247 categories

4,111 items

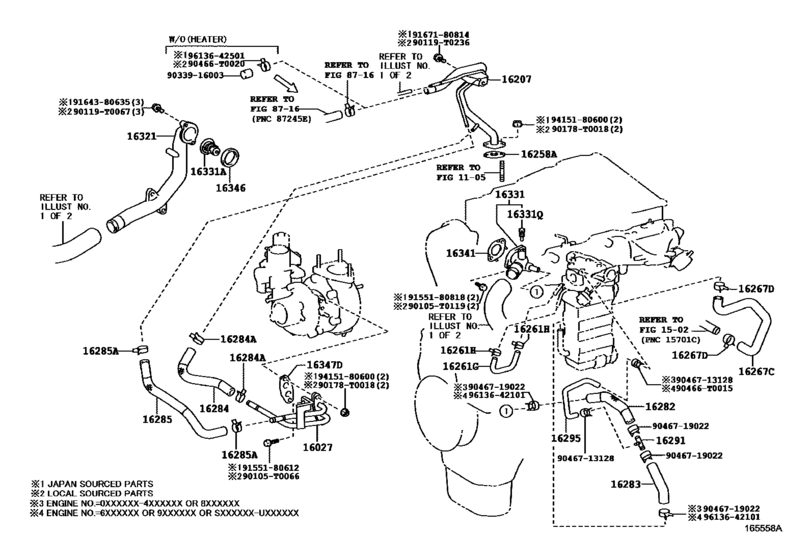

Radiator & Water Outlet ([12.2013 - ] EXCEPT EURO 5 REGULATION (1312- )1KDFTV..KDH203..15S ; (1312- )1KDF TV..KDH201..4D..5F..GEN,TH ; (1312- )1KDFTV..KDH2 13,223..11S,12S,13S,14S,16S..GEN,TH) 36

#	OEM	Part name
16027	16027-30100	Pipe Sub-Assy, Turbo Water, No.1
16207	16207-30160	Pipe Sub-Assy, Water By-Pass, No.2
16258	16258-67010	Gasket(For Heater Return)
16261	16261-30140	Hose, Water By-Pass, No.1
16261	90467-13128	Clamp Or Clip, Hose(For Water By-Pass Hose)
16267	16267-30110	Hose, Water By-Pass, No.4
16267	90467-19022	Clip(For Ventilation Hose No.2)
16282	16282-30021	Hose, Water By-Pass, No.5
16283	16283-30011	Hose, Water By-Pass, No.6
16284	16284-30100	Hose, Turbo Water, No.1
16285	16285-30081	Hose, Turbo Water, No.2
16291	16291-30010	Joint, Water Hose
16295	16295-30011	Hose, Water By-Pass, No.7
16321	16321-0K010	Inlet, Water
16331	16331-30070	Outlet, Water
16331	90916-03118	Thermostat - *WAX 82-95C
16331	90910-09133	Plug(For Water Outlet)
16341	16341-30020	Gasket, Water Outlet
16346	16346-0K010	Gasket, Thermostat
16347	16347-30010	Gasket, Water By-Pass
90105	90105-T0066	BOLT FLANGE
90105	90105-T0119	BOLT FLANGE
90119	90119-T0067	New Genuine Part
90119	90119-T0236	New Genuine Part
90178	90178-T0018	NUT FLANGE
90466	90466-T0015	Clamp Or Clip, Hose(For Water By-Pass Hose)
90466	90466-T0020	Clip(For Water By-Pass Hose No.1)
9033916003	90339-16003	PLUG
9155180612	91551-80612	Bolt (For Front Differential Breather Plug Oil Deflector)
9155180818	91551-80818	Bolt, Union(For Clutch Master Cylinder)
9164380635	91643-80635	New Genuine Part
9167180814	91671-80814	BOLT FLANGE WWASER
9167180814	90119-A0165	New Genuine Part
9415180600	94151-80600	Nut, Cap(For Cylinder Head Cover)
9613642101	96136-42101	Clip, Hose(For Radiator Hose Sub-Assy)
9613642501	96136-42501	Clip(For Ventilation Hose)

OEM	Part name	Category
16027-30100	Pipe Sub-Assy, Turbo Water, No.1	Radiator & Water Outlet ([12.2013 - ] EXCEPT EURO 5 REGULATION (1312- )1KDFTV..KDH203..15S ; (1312- )1KDF TV..KDH201..4D..5F..GEN,TH ; (1312- )1KDFTV..KDH2 13,223..11S,12S,13S,14S,16S..GEN,TH)
16207-30160	Pipe Sub-Assy, Water By-Pass, No.2	Radiator & Water Outlet ([12.2013 - ] EXCEPT EURO 5 REGULATION (1312- )1KDFTV..KDH203..15S ; (1312- )1KDF TV..KDH201..4D..5F..GEN,TH ; (1312- )1KDFTV..KDH2 13,223..11S,12S,13S,14S,16S..GEN,TH)
16258-67010	Gasket(For Heater Return)	Radiator & Water Outlet ([12.2013 - ] EXCEPT EURO 5 REGULATION (1312- )1KDFTV..KDH203..15S ; (1312- )1KDF TV..KDH201..4D..5F..GEN,TH ; (1312- )1KDFTV..KDH2 13,223..11S,12S,13S,14S,16S..GEN,TH)
16261-30140	Hose, Water By-Pass, No.1	Radiator & Water Outlet ([12.2013 - ] EXCEPT EURO 5 REGULATION (1312- )1KDFTV..KDH203..15S ; (1312- )1KDF TV..KDH201..4D..5F..GEN,TH ; (1312- )1KDFTV..KDH2 13,223..11S,12S,13S,14S,16S..GEN,TH)
16267-30110	Hose, Water By-Pass, No.4	Radiator & Water Outlet ([12.2013 - ] EXCEPT EURO 5 REGULATION (1312- )1KDFTV..KDH203..15S ; (1312- )1KDF TV..KDH201..4D..5F..GEN,TH ; (1312- )1KDFTV..KDH2 13,223..11S,12S,13S,14S,16S..GEN,TH)
16282-30021	Hose, Water By-Pass, No.5	Radiator & Water Outlet ([12.2013 - ] EXCEPT EURO 5 REGULATION (1312- )1KDFTV..KDH203..15S ; (1312- )1KDF TV..KDH201..4D..5F..GEN,TH ; (1312- )1KDFTV..KDH2 13,223..11S,12S,13S,14S,16S..GEN,TH)
16283-30011	Hose, Water By-Pass, No.6	Radiator & Water Outlet ([12.2013 - ] EXCEPT EURO 5 REGULATION (1312- )1KDFTV..KDH203..15S ; (1312- )1KDF TV..KDH201..4D..5F..GEN,TH ; (1312- )1KDFTV..KDH2 13,223..11S,12S,13S,14S,16S..GEN,TH)
16284-30100	Hose, Turbo Water, No.1	Radiator & Water Outlet ([12.2013 - ] EXCEPT EURO 5 REGULATION (1312- )1KDFTV..KDH203..15S ; (1312- )1KDF TV..KDH201..4D..5F..GEN,TH ; (1312- )1KDFTV..KDH2 13,223..11S,12S,13S,14S,16S..GEN,TH)
16285-30081	Hose, Turbo Water, No.2	Radiator & Water Outlet ([12.2013 - ] EXCEPT EURO 5 REGULATION (1312- )1KDFTV..KDH203..15S ; (1312- )1KDF TV..KDH201..4D..5F..GEN,TH ; (1312- )1KDFTV..KDH2 13,223..11S,12S,13S,14S,16S..GEN,TH)
16291-30010	Joint, Water Hose	Radiator & Water Outlet ([12.2013 - ] EXCEPT EURO 5 REGULATION (1312- )1KDFTV..KDH203..15S ; (1312- )1KDF TV..KDH201..4D..5F..GEN,TH ; (1312- )1KDFTV..KDH2 13,223..11S,12S,13S,14S,16S..GEN,TH)
16295-30011	Hose, Water By-Pass, No.7	Radiator & Water Outlet ([12.2013 - ] EXCEPT EURO 5 REGULATION (1312- )1KDFTV..KDH203..15S ; (1312- )1KDF TV..KDH201..4D..5F..GEN,TH ; (1312- )1KDFTV..KDH2 13,223..11S,12S,13S,14S,16S..GEN,TH)
16321-0K010	Inlet, Water	Radiator & Water Outlet ([12.2013 - ] EXCEPT EURO 5 REGULATION (1312- )1KDFTV..KDH203..15S ; (1312- )1KDF TV..KDH201..4D..5F..GEN,TH ; (1312- )1KDFTV..KDH2 13,223..11S,12S,13S,14S,16S..GEN,TH)
16331-30070	Outlet, Water	Radiator & Water Outlet ([12.2013 - ] EXCEPT EURO 5 REGULATION (1312- )1KDFTV..KDH203..15S ; (1312- )1KDF TV..KDH201..4D..5F..GEN,TH ; (1312- )1KDFTV..KDH2 13,223..11S,12S,13S,14S,16S..GEN,TH)
16341-30020	Gasket, Water Outlet	Radiator & Water Outlet ([12.2013 - ] EXCEPT EURO 5 REGULATION (1312- )1KDFTV..KDH203..15S ; (1312- )1KDF TV..KDH201..4D..5F..GEN,TH ; (1312- )1KDFTV..KDH2 13,223..11S,12S,13S,14S,16S..GEN,TH)
16346-0K010	Gasket, Thermostat	Radiator & Water Outlet ([12.2013 - ] EXCEPT EURO 5 REGULATION (1312- )1KDFTV..KDH203..15S ; (1312- )1KDF TV..KDH201..4D..5F..GEN,TH ; (1312- )1KDFTV..KDH2 13,223..11S,12S,13S,14S,16S..GEN,TH)
16347-30010	Gasket, Water By-Pass	Radiator & Water Outlet ([12.2013 - ] EXCEPT EURO 5 REGULATION (1312- )1KDFTV..KDH203..15S ; (1312- )1KDF TV..KDH201..4D..5F..GEN,TH ; (1312- )1KDFTV..KDH2 13,223..11S,12S,13S,14S,16S..GEN,TH)
90105-T0066	BOLT FLANGE	Radiator & Water Outlet ([12.2013 - ] EXCEPT EURO 5 REGULATION (1312- )1KDFTV..KDH203..15S ; (1312- )1KDF TV..KDH201..4D..5F..GEN,TH ; (1312- )1KDFTV..KDH2 13,223..11S,12S,13S,14S,16S..GEN,TH)
90105-T0119	BOLT FLANGE	Radiator & Water Outlet ([12.2013 - ] EXCEPT EURO 5 REGULATION (1312- )1KDFTV..KDH203..15S ; (1312- )1KDF TV..KDH201..4D..5F..GEN,TH ; (1312- )1KDFTV..KDH2 13,223..11S,12S,13S,14S,16S..GEN,TH)
90119-A0165	New Genuine Part	Radiator & Water Outlet ([12.2013 - ] EXCEPT EURO 5 REGULATION (1312- )1KDFTV..KDH203..15S ; (1312- )1KDF TV..KDH201..4D..5F..GEN,TH ; (1312- )1KDFTV..KDH2 13,223..11S,12S,13S,14S,16S..GEN,TH)
90119-T0067	New Genuine Part	Radiator & Water Outlet ([12.2013 - ] EXCEPT EURO 5 REGULATION (1312- )1KDFTV..KDH203..15S ; (1312- )1KDF TV..KDH201..4D..5F..GEN,TH ; (1312- )1KDFTV..KDH2 13,223..11S,12S,13S,14S,16S..GEN,TH)
90119-T0236	New Genuine Part	Radiator & Water Outlet ([12.2013 - ] EXCEPT EURO 5 REGULATION (1312- )1KDFTV..KDH203..15S ; (1312- )1KDF TV..KDH201..4D..5F..GEN,TH ; (1312- )1KDFTV..KDH2 13,223..11S,12S,13S,14S,16S..GEN,TH)
90178-T0018	NUT FLANGE	Radiator & Water Outlet ([12.2013 - ] EXCEPT EURO 5 REGULATION (1312- )1KDFTV..KDH203..15S ; (1312- )1KDF TV..KDH201..4D..5F..GEN,TH ; (1312- )1KDFTV..KDH2 13,223..11S,12S,13S,14S,16S..GEN,TH)
90339-16003	PLUG	Radiator & Water Outlet ([12.2013 - ] EXCEPT EURO 5 REGULATION (1312- )1KDFTV..KDH203..15S ; (1312- )1KDF TV..KDH201..4D..5F..GEN,TH ; (1312- )1KDFTV..KDH2 13,223..11S,12S,13S,14S,16S..GEN,TH)
90466-T0015	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([12.2013 - ] EXCEPT EURO 5 REGULATION (1312- )1KDFTV..KDH203..15S ; (1312- )1KDF TV..KDH201..4D..5F..GEN,TH ; (1312- )1KDFTV..KDH2 13,223..11S,12S,13S,14S,16S..GEN,TH)
90466-T0020	Clip(For Water By-Pass Hose No.1)	Radiator & Water Outlet ([12.2013 - ] EXCEPT EURO 5 REGULATION (1312- )1KDFTV..KDH203..15S ; (1312- )1KDF TV..KDH201..4D..5F..GEN,TH ; (1312- )1KDFTV..KDH2 13,223..11S,12S,13S,14S,16S..GEN,TH)
90467-13128	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([12.2013 - ] EXCEPT EURO 5 REGULATION (1312- )1KDFTV..KDH203..15S ; (1312- )1KDF TV..KDH201..4D..5F..GEN,TH ; (1312- )1KDFTV..KDH2 13,223..11S,12S,13S,14S,16S..GEN,TH)
90467-19022	Clip(For Ventilation Hose No.2)	Radiator & Water Outlet ([12.2013 - ] EXCEPT EURO 5 REGULATION (1312- )1KDFTV..KDH203..15S ; (1312- )1KDF TV..KDH201..4D..5F..GEN,TH ; (1312- )1KDFTV..KDH2 13,223..11S,12S,13S,14S,16S..GEN,TH)
90910-09133	Plug(For Water Outlet)	Radiator & Water Outlet ([12.2013 - ] EXCEPT EURO 5 REGULATION (1312- )1KDFTV..KDH203..15S ; (1312- )1KDF TV..KDH201..4D..5F..GEN,TH ; (1312- )1KDFTV..KDH2 13,223..11S,12S,13S,14S,16S..GEN,TH)
90916-03118	Thermostat - *WAX 82-95C	Radiator & Water Outlet ([12.2013 - ] EXCEPT EURO 5 REGULATION (1312- )1KDFTV..KDH203..15S ; (1312- )1KDF TV..KDH201..4D..5F..GEN,TH ; (1312- )1KDFTV..KDH2 13,223..11S,12S,13S,14S,16S..GEN,TH)
91551-80612	Bolt (For Front Differential Breather Plug Oil Deflector)	Radiator & Water Outlet ([12.2013 - ] EXCEPT EURO 5 REGULATION (1312- )1KDFTV..KDH203..15S ; (1312- )1KDF TV..KDH201..4D..5F..GEN,TH ; (1312- )1KDFTV..KDH2 13,223..11S,12S,13S,14S,16S..GEN,TH)
91551-80818	Bolt, Union(For Clutch Master Cylinder)	Radiator & Water Outlet ([12.2013 - ] EXCEPT EURO 5 REGULATION (1312- )1KDFTV..KDH203..15S ; (1312- )1KDF TV..KDH201..4D..5F..GEN,TH ; (1312- )1KDFTV..KDH2 13,223..11S,12S,13S,14S,16S..GEN,TH)
91643-80635	New Genuine Part	Radiator & Water Outlet ([12.2013 - ] EXCEPT EURO 5 REGULATION (1312- )1KDFTV..KDH203..15S ; (1312- )1KDF TV..KDH201..4D..5F..GEN,TH ; (1312- )1KDFTV..KDH2 13,223..11S,12S,13S,14S,16S..GEN,TH)
91671-80814	BOLT FLANGE WWASER	Radiator & Water Outlet ([12.2013 - ] EXCEPT EURO 5 REGULATION (1312- )1KDFTV..KDH203..15S ; (1312- )1KDF TV..KDH201..4D..5F..GEN,TH ; (1312- )1KDFTV..KDH2 13,223..11S,12S,13S,14S,16S..GEN,TH)
94151-80600	Nut, Cap(For Cylinder Head Cover)	Radiator & Water Outlet ([12.2013 - ] EXCEPT EURO 5 REGULATION (1312- )1KDFTV..KDH203..15S ; (1312- )1KDF TV..KDH201..4D..5F..GEN,TH ; (1312- )1KDFTV..KDH2 13,223..11S,12S,13S,14S,16S..GEN,TH)
96136-42101	Clip, Hose(For Radiator Hose Sub-Assy)	Radiator & Water Outlet ([12.2013 - ] EXCEPT EURO 5 REGULATION (1312- )1KDFTV..KDH203..15S ; (1312- )1KDF TV..KDH201..4D..5F..GEN,TH ; (1312- )1KDFTV..KDH2 13,223..11S,12S,13S,14S,16S..GEN,TH)
96136-42501	Clip(For Ventilation Hose)	Radiator & Water Outlet ([12.2013 - ] EXCEPT EURO 5 REGULATION (1312- )1KDFTV..KDH203..15S ; (1312- )1KDF TV..KDH201..4D..5F..GEN,TH ; (1312- )1KDFTV..KDH2 13,223..11S,12S,13S,14S,16S..GEN,TH)

Source: Public OEM parts-catalog data
Variants: 2 / 10
Category: 247
Collected: 2026-08-03
