KDH203

Toyota HIACE · 2006 · 4,111 parts · 247 categories
KDH203 ×

← Back to categories

4,111 items

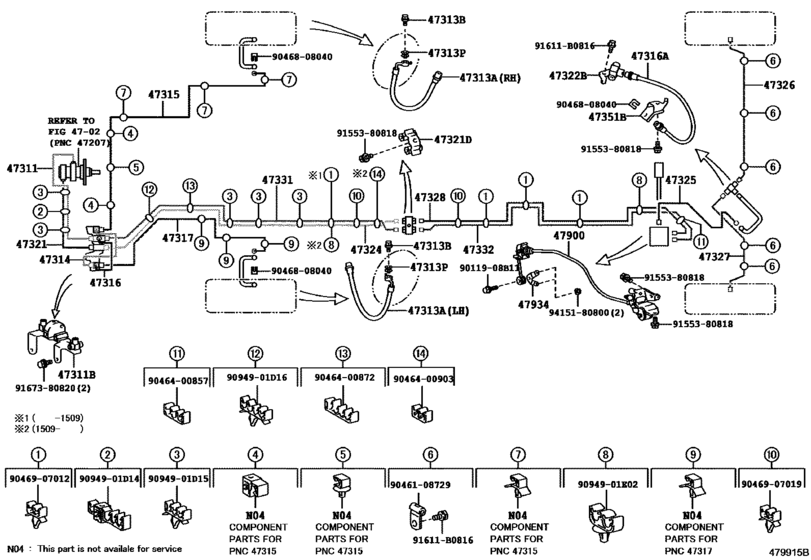

Brake Tube & Clamp ([01.2015 - ] (1501- )KDH20#,LH20#,TRH201,203..LHD..03S,06S ,12S,15S) 49
#OEMPart name
47311 47311-26A50 Tube, Front Brake, No.1
47311 90413-10338 Way, No.1(For Front Brake Tube)
47311 90413-10339 Way, No.1(For Front Brake Tube)
47313 90947-02G74 Hose, Flexible, No.1(For Front)
47313 90947-02H54 Hose, Flexible, No.1(For Front)
47313 90401-10058 Bolt, Union(For Front Flexible Hose)
47313 47389-50020 Gasket(For Front Flexible Hose)
47314 47314-26390 Tube, Front Brake, No.4
47314 47314-26400 Tube, Front Brake, No.4
47315 47315-26330 Tube, Front Brake, No.5
47316 47316-26490 Tube, Front Brake, No.6
47316 47316-26500 Tube, Front Brake, No.6
47316 90947-02H57 Hose, Flexible(For Rear Brake Tube)
47317 47317-26360 Tube, Front Brake, No.7
47321 47321-26800 Tube, Rear Brake, No.1
47321 90412-10285 Way, No.1(For Front Brake Tube)
47322 90413-10337 Way, No.2(For Rear Brake Tube)
47324 47324-26570 Tube, Rear Brake, No.4
47324 47324-26571 Tube, Rear Brake, No.4
47324 47324-26580 Tube, Rear Brake, No.4
47324 47324-26581 Tube, Rear Brake, No.4
47325 47325-26420 Tube, Rear Brake, No.5
47326 47326-26500 Tube, Rear Brake, No.6
47327 47327-26350 Tube, Rear Brake, No.7
47328 47328-26170 Tube, Rear Brake, No.8
47331 47331-26250 Tube, Rear Brake, No.10
47331 47331-26251 Tube, Rear Brake, No.10
47331 47331-26260 Tube, Rear Brake, No.10
47331 47331-26261 Tube, Rear Brake, No.10
47332 47332-26160 Tube, Rear Brake, No.11
47351 47351-26210 Bracket, Flexible Hose, No.1
47900 47900-26510 Valve Assy, Load Sensing W/spring
47934 47934-26110 Bracket, Load Sensing
91611 91611-B0816 Bolt
9011908 90119-08B11 BOLT WWASHER
9094901 90949-01D14 CLAMP
9094901 90949-01D15 CLAMP
9094901 90949-01D16 Clamp, Brake Tube, No.3
909490100 90949-01E02 Clamp, Brake Tube, No.7
9046108729 90461-08729 New Genuine Part
9046400857 90464-00857 Clamp, Brake Tube, No.1
9046400872 90464-00872 New Genuine Part
9046400903 90464-00903 Clamp, Brake Tube, No.1 - BRAKE TUBE, NO.6
9046808040 90468-08040 CLIP
9046907012 90469-07012 Clamp Or Clip(For Air Hose, No.5)
9046907019 90469-07019 Clamp, Brake Tube, No.1
9155380818 91553-80818 BOLT FLANGE
9167380820 91673-80820 Bolt (For Transmission Control Cable Bracket)
9415180800 94151-80800 Nut (For Transmission Control Cable)
