Search › Model › KDH202

KDH202

Toyota HIACE · 2005 · 4,111 parts · 232 categories

4,111 items

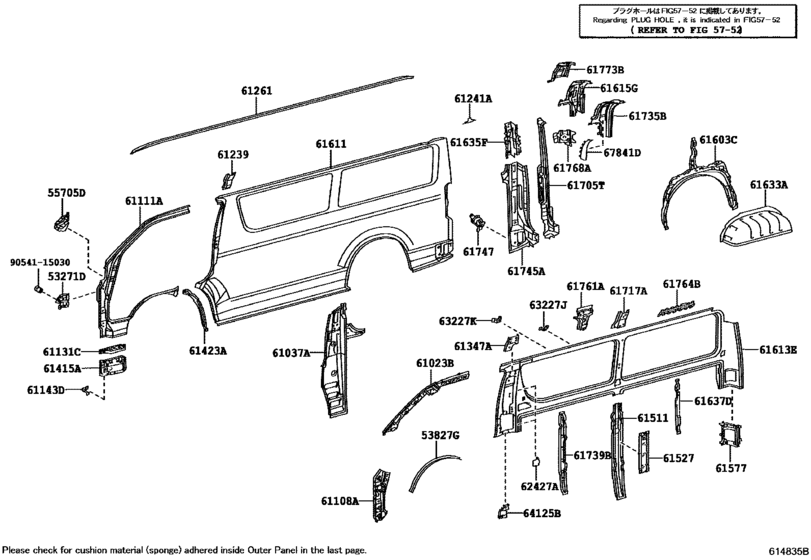

Side Member ([12.2013 - ] RH (1312- )KDH202,TRH203..MA) 41

#	OEM	Part name
53271	53271-26021	Bracket, Headlamp Mounting, Rh
53827	53827-26010	Protector, Front Fender Side Panel, Rh
55705	55705-26080	Panel Sub-Assy, Cowl Top Side, Rh,
61023	61023-26190	Pillar Sub-Assy, Front Body, Inner Rh
61037	61037-26040	Reinforcement Sub-Assy, Center Body Pillar, Rh
61108	61108-26010	Reinforce Sub-Assy, Front Body Pillar, Lower Rh
61111	61111-26301	Panel, Front Side, Outer Rh
61131	61131-26081	Pillar, Front Body, Outer Rh
61143	61143-26010	Retainer, Front Bumper Side, Rh
61239	61239-26010	Retainer, Roof Side Rail Outer, Rh
61241	61241-26010	Gusset, Roof Side Rail, Rear Rh
61261	61261-26051	Channel, Roof Drip, Rh
61347	61347-26040	Reinforcement, Belt Anchor To Center Pillar, Rh
61415	61415-26021	Panel, Front Step, Under, Rh
61423	61423-26030	Panel, Fender, Inner Lower Rh
61511	61511-26060	Pillar, Quarter Lock, Rh
61527	61527-26030	Reinforcement, Quarter Lock Piller, Lower Rh
61577	61071-26100	Plate, Cab Rear Pillar, Lower Rh
61603	61610-26240	Panel Sub-Assy, Quarter Wheel House, Rh
61611	61611-26460	Panel, Quarter, Rh
61613	61613-26J50	Panel, Quarter, Inner Rh
61615	61615-26140	Reinforcement, Rear Body Rear Side Panel, Rh
61633	61633-26050	Panel, Quarter Wheel House, Inner Rh
61635	61635-26050	Reinforcement, Quarter Panel, Upr Rh
61637	61637-26030	Reinforcement, Quarter, Inner Rh
61705	61705-26260	Frame Sub-Assy, Back Door Opening Side, Rh
61717	61717-26050	Reinforcement, Quarter Panel Extension, Rh
61735	61735-26A30	Extension, Quarter Panel, Inner Rh
61739	61739-26040	Reinforcement, Extension Quarter Inner Panel
61745	61745-26050	Reinforcement, Back Door Opening, Lower Rh
61747	61747-26020	Brace, Roof Side Inner To Wheel House, Rh
61761	61761-26080	Reinforce, Seat Belt Anchor, No.1 Upper Rh
61764	61077-26070	Reinforcement, Seat Belt Anchor, No.2 Rh
61768	61768-26090	Reinforcement, Seat Belt Anchor, No.2 Rh
61773	61773-26130	Frame, Back Door Opening Side, Upper Rh
62427	62427-26050	Bracket, Center Pillar Garnish, Rh
63227	63227-26070	Bracket, Roof Headlining, Fr Rh No.4
63227	63227-26080	Bracket, Roof Headlining, Fr Rh No.5
64125	64125-26050	Anchor, Pillar Seat Belt
67841	67841-26030-B0	Cover, Quarter Service Hole, Rh
9054115030	90541-15030	Cushion, Luggage Door Hinge

OEM	Part name	Category
53271-26021	Bracket, Headlamp Mounting, Rh	Side Member ([12.2013 - ] RH (1312- )KDH202,TRH203..MA)
53827-26010	Protector, Front Fender Side Panel, Rh	Side Member ([12.2013 - ] RH (1312- )KDH202,TRH203..MA)
55705-26080	Panel Sub-Assy, Cowl Top Side, Rh,	Side Member ([12.2013 - ] RH (1312- )KDH202,TRH203..MA)
61023-26190	Pillar Sub-Assy, Front Body, Inner Rh	Side Member ([12.2013 - ] RH (1312- )KDH202,TRH203..MA)
61037-26040	Reinforcement Sub-Assy, Center Body Pillar, Rh	Side Member ([12.2013 - ] RH (1312- )KDH202,TRH203..MA)
61071-26100	Plate, Cab Rear Pillar, Lower Rh	Side Member ([12.2013 - ] RH (1312- )KDH202,TRH203..MA)
61077-26070	Reinforcement, Seat Belt Anchor, No.2 Rh	Side Member ([12.2013 - ] RH (1312- )KDH202,TRH203..MA)
61108-26010	Reinforce Sub-Assy, Front Body Pillar, Lower Rh	Side Member ([12.2013 - ] RH (1312- )KDH202,TRH203..MA)
61111-26301	Panel, Front Side, Outer Rh	Side Member ([12.2013 - ] RH (1312- )KDH202,TRH203..MA)
61131-26081	Pillar, Front Body, Outer Rh	Side Member ([12.2013 - ] RH (1312- )KDH202,TRH203..MA)
61143-26010	Retainer, Front Bumper Side, Rh	Side Member ([12.2013 - ] RH (1312- )KDH202,TRH203..MA)
61239-26010	Retainer, Roof Side Rail Outer, Rh	Side Member ([12.2013 - ] RH (1312- )KDH202,TRH203..MA)
61241-26010	Gusset, Roof Side Rail, Rear Rh	Side Member ([12.2013 - ] RH (1312- )KDH202,TRH203..MA)
61261-26051	Channel, Roof Drip, Rh	Side Member ([12.2013 - ] RH (1312- )KDH202,TRH203..MA)
61347-26040	Reinforcement, Belt Anchor To Center Pillar, Rh	Side Member ([12.2013 - ] RH (1312- )KDH202,TRH203..MA)
61415-26021	Panel, Front Step, Under, Rh	Side Member ([12.2013 - ] RH (1312- )KDH202,TRH203..MA)
61423-26030	Panel, Fender, Inner Lower Rh	Side Member ([12.2013 - ] RH (1312- )KDH202,TRH203..MA)
61511-26060	Pillar, Quarter Lock, Rh	Side Member ([12.2013 - ] RH (1312- )KDH202,TRH203..MA)
61527-26030	Reinforcement, Quarter Lock Piller, Lower Rh	Side Member ([12.2013 - ] RH (1312- )KDH202,TRH203..MA)
61610-26240	Panel Sub-Assy, Quarter Wheel House, Rh	Side Member ([12.2013 - ] RH (1312- )KDH202,TRH203..MA)
61611-26460	Panel, Quarter, Rh	Side Member ([12.2013 - ] RH (1312- )KDH202,TRH203..MA)
61613-26J50	Panel, Quarter, Inner Rh	Side Member ([12.2013 - ] RH (1312- )KDH202,TRH203..MA)
61615-26140	Reinforcement, Rear Body Rear Side Panel, Rh	Side Member ([12.2013 - ] RH (1312- )KDH202,TRH203..MA)
61633-26050	Panel, Quarter Wheel House, Inner Rh	Side Member ([12.2013 - ] RH (1312- )KDH202,TRH203..MA)
61635-26050	Reinforcement, Quarter Panel, Upr Rh	Side Member ([12.2013 - ] RH (1312- )KDH202,TRH203..MA)
61637-26030	Reinforcement, Quarter, Inner Rh	Side Member ([12.2013 - ] RH (1312- )KDH202,TRH203..MA)
61705-26260	Frame Sub-Assy, Back Door Opening Side, Rh	Side Member ([12.2013 - ] RH (1312- )KDH202,TRH203..MA)
61717-26050	Reinforcement, Quarter Panel Extension, Rh	Side Member ([12.2013 - ] RH (1312- )KDH202,TRH203..MA)
61735-26A30	Extension, Quarter Panel, Inner Rh	Side Member ([12.2013 - ] RH (1312- )KDH202,TRH203..MA)
61739-26040	Reinforcement, Extension Quarter Inner Panel	Side Member ([12.2013 - ] RH (1312- )KDH202,TRH203..MA)
61745-26050	Reinforcement, Back Door Opening, Lower Rh	Side Member ([12.2013 - ] RH (1312- )KDH202,TRH203..MA)
61747-26020	Brace, Roof Side Inner To Wheel House, Rh	Side Member ([12.2013 - ] RH (1312- )KDH202,TRH203..MA)
61761-26080	Reinforce, Seat Belt Anchor, No.1 Upper Rh	Side Member ([12.2013 - ] RH (1312- )KDH202,TRH203..MA)
61768-26090	Reinforcement, Seat Belt Anchor, No.2 Rh	Side Member ([12.2013 - ] RH (1312- )KDH202,TRH203..MA)
61773-26130	Frame, Back Door Opening Side, Upper Rh	Side Member ([12.2013 - ] RH (1312- )KDH202,TRH203..MA)
62427-26050	Bracket, Center Pillar Garnish, Rh	Side Member ([12.2013 - ] RH (1312- )KDH202,TRH203..MA)
63227-26070	Bracket, Roof Headlining, Fr Rh No.4	Side Member ([12.2013 - ] RH (1312- )KDH202,TRH203..MA)
63227-26080	Bracket, Roof Headlining, Fr Rh No.5	Side Member ([12.2013 - ] RH (1312- )KDH202,TRH203..MA)
64125-26050	Anchor, Pillar Seat Belt	Side Member ([12.2013 - ] RH (1312- )KDH202,TRH203..MA)
67841-26030-B0	Cover, Quarter Service Hole, Rh	Side Member ([12.2013 - ] RH (1312- )KDH202,TRH203..MA)
90541-15030	Cushion, Luggage Door Hinge	Side Member ([12.2013 - ] RH (1312- )KDH202,TRH203..MA)
