KDH202

Toyota HIACE · 2005 · 4,111 parts · 232 categories
KDH202 ×

← Back to categories

4,111 items

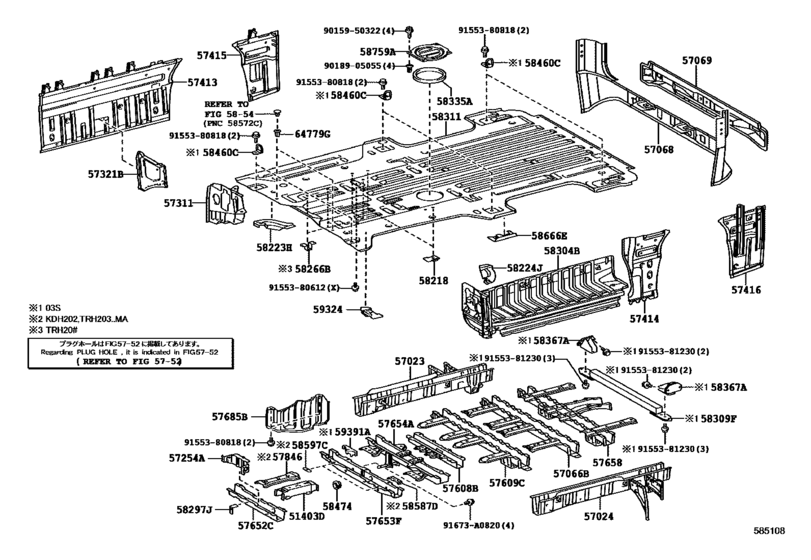

Rear Floor Panel & Rear Floor Member ([12.2013 - ] (1312- )KDH20#,LH20#,TRH201,203..RHD..4D) 76
#OEMPart name
51403 51403-26290 Bracket Sub-Assy, Engine Rear Mounting
51403 51403-26330 Bracket Sub-Assy, Engine Rear Mounting
57023 57023-26660 Member Sub-Assy, Rear Side, Rh
57023 57023-26640 Member Sub-Assy, Rear Side, Rh
57024 57024-26670 Member Sub-Assy, Rear Side, Lh
57024 57024-26640 Member Sub-Assy, Rear Side, Lh
57066 57066-26350 Member Sub-Assy, Rear Floor Cross, No.6
57066 57066-26121 Member Sub-Assy, Rear Floor Cross, No.6
57066 57066-26131 Member Sub-Assy, Rear Floor Cross, No.6
57068 57068-26230 Member Sub-Assy, Rear Floor Rear Cross, Inner
57068 57068-26250 Member Sub-Assy, Rear Floor Rear Cross, Inner
57069 57069-26130 Member Sub-Assy, Rear Floor Rear Cross, Outer
57069 57069-26120 Member Sub-Assy, Rear Floor Rear Cross, Outer
57254 57254-26041 Reinforcement, Engine Rear Mounting Member
57311 57301-26090 Outrigger, No.1 Rh
57311 57301-26070 Outrigger, No.1 Rh
57321 57321-26010 Outrigger, No.5, Rh
57413 57405-2F020 Rail, Floor Side, Center Rh
57413 57405-26A00 Rail, Floor Side, Center Rh
57413 57405-26A30 Rail, Floor Side, Center Rh
57414 57406-26520 Rail, Floor Side, Center Lh
57414 57414-26510 Rail, Floor Side, Center Lh
57415 57047-26180 Rail, Floor Side, Rear Rh
57415 57415-26210 Rail, Floor Side, Rear Rh
57416 57048-26160 Rail, Floor Side, Rear Lh
57416 57416-26160 Rail, Floor Side, Rear Lh
57608 57608-26321 Member Sub-Assy, Rear Floor Cross, No.4
57608 57608-26301 Member Sub-Assy, Rear Floor Cross, No.4
57608 57608-26311 Member Sub-Assy, Rear Floor Cross, No.4
57609 57609-26292 Member Sub-Assy, Rear Floor Cross, No.5
57609 57609-26182 Member Sub-Assy, Rear Floor Cross, No.5
57609 57609-26192 Member Sub-Assy, Rear Floor Cross, No.5
57609 57609-26282 Member Sub-Assy, Rear Floor Cross, No.5
57652 57652-26120 Member, Rear Floor Cross, No.1
57653 57653-26131 Member, Rear Floor Cross, No.2
57654 57607-26591 Member, Rear Floor Cross, No.3
57654 57607-26A20 Member, Rear Floor Cross, No.3
57654 57607-26651 Member, Rear Floor Cross, No.3
57654 57607-26A50 Member, Rear Floor Cross, No.3
57658 57067-26340 Member, Rear Floor Cross, No.7
57658 57067-26101 Member, Rear Floor Cross, No.7
57658 57067-26131 Member, Rear Floor Cross, No.7
57685 57685-26040 Guard, Fuel Tank
57846 57846-26010 Reinforcement, Rear No.2 Seat Leg, Rear Lh
58218 58218-26010 Plate, Seat Floor Panel
58223 58223-26071 Reinforcement, Floor Panel Side, Rh
58224 58224-26091 Reinforcement, Floor Panel Side, Lh
58297 58297-26020 Retainer, Floor Clamp
58304 58304-26680 Step Sub-Assy, Rear Floor, Lh
58304 58304-26370 Step Sub-Assy, Rear Floor, Lh
58311 58311-26F40 Pan, Rear Floor
58311 58311-26F41 Pan, Rear Floor
58311 58311-26A10 Pan, Rear Floor
58311 58311-26A11 Pan, Rear Floor
58311 58311-26A30 Pan, Rear Floor
58311 58311-26A31 Pan, Rear Floor
58311 58311-26F30 Pan, Rear Floor
58311 58311-26F31 Pan, Rear Floor
58311 58311-26F50 Pan, Rear Floor
58311 58311-26F51 Pan, Rear Floor
58335 58335-26030 Seal, Rear Floor Side Service Hole Cover
58474 58474-26010 Cover, Inspection Hole
58587 58587-26010 Plate, No.3 Seat Leg Space Pocket, No.1
58597 58597-26030 Plate, Seat Track Set
58666 58666-26010 Plate, Rear Floor, Center Lower No.2 Lh
58759 58759-26010 Cover, Fuel Tank Inspection Hole
59324 59324-26010 Base, Sub Floor Leg, No.2
59324 59324-26020 Base, Sub Floor Leg, No.2
59391 59391-26010 Retainer, Rear Floor, No.1
64779 64779-26020 Clip(For Front Floor Carpet)
91673 91673-A0820 BOLT FLANGE
9015950322 90159-50322 SCREW WWASHER
9018905055 90189-05055 GROMMET
9155380612 91553-80612 BOLT FLANGE
9155380818 91553-80818 BOLT FLANGE
9155381230 91553-81230 BOLT FLANGE
