KDH202

Toyota HIACE · 2005 · 4,111 parts · 232 categories

4,111 items

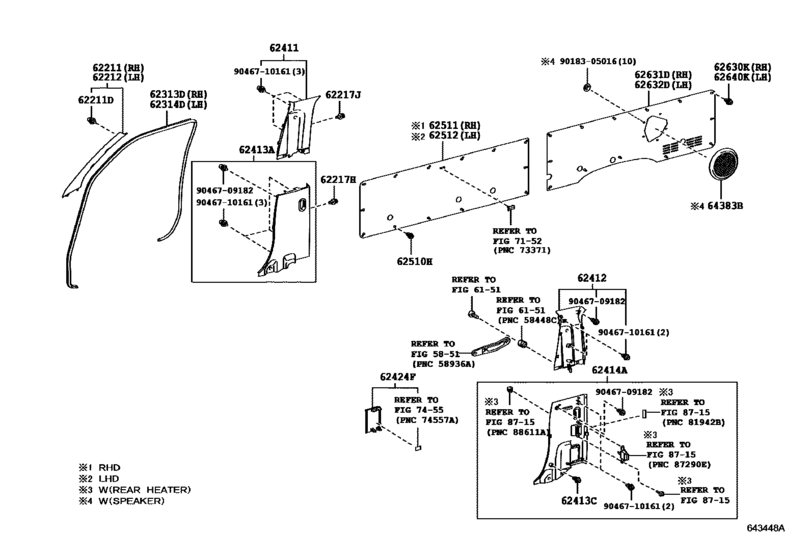

Inside Trim Board ([12.2013 - ] W(DUAL AIR CONDITIONER) (1312- )KDH202,203,LH202,TRH203..SRF..STD) 33

#	OEM	Part name
62211	62210-26041-B0	Garnish, Front Pillar, Rh
62211	62210-26052-B0	Garnish, Front Pillar, Rh
62211	67771-28150	Clip(For Front Body Pillar Garnish)
62211	90467-09236	Clip(For Front Body Pillar Garnish)
62211	90467-10161	Clip
62212	62220-26021-B0	Garnish, Front Pillar, Lh
62212	62220-26032-B0	Garnish, Front Pillar, Lh
62217	62489-26010-B0	Clip, Center Piller Garnish
62217	62489-26010-B2	Clip, Center Piller Garnish
62313	62313-26010-C0	Trim, Front Door Opening, Rh
62314	62314-26010-C0	Trim, Front Door Opening, Lh
62411	62410-26050-B0	Garnish, Center Pillar, Rh
62412	62420-26050-B0	Garnish, Center Pillar, Lh
62413	62413-26170-B0	Garnish, Center Pillar, Lower Rh
62413	62413-26190-B0	Garnish, Center Pillar, Lower Rh
62413	75867-33030	Clip (For Center Lower Garnish)
62414	62414-26220-B0	Garnish, Center Pillar, Lower Lh
62414	62414-26320-B2	Garnish, Center Pillar, Lower Lh
62414	62414-26340-B2	Garnish, Center Pillar, Lower Lh
62414	62414-26420-B1	Garnish, Center Pillar, Lower Lh
62424	62424-26031-B0	Cover, Center Pillar Garnish, Lower Lh
62424	62424-26032-B0	Cover, Center Pillar Garnish, Lower Lh
62511	62511-26210-B1	Board, Quarter Inside Trim, Rh
62511	62511-26230-B1	Board, Quarter Inside Trim, Rh
62631	62631-26240-B1	Board, Quarter Trim, Rear Rh
62631	62631-26660-B1	Board, Quarter Trim, Rear Rh
62631	62631-26760-B1	Board, Quarter Trim, Rear Rh
62632	62632-26310-B1	Board, Quarter Trim, Rear Lh
62632	62632-26360-B1	Board, Quarter Trim, Rear Lh
62632	62632-26810-B1	Board, Quarter Trim, Rear Lh
64383	64383-26060-B1	Grille, Rear Speaker, Rh
9018305016	90183-05016	NUT
9046709182	90467-09182	Clip(For Rear Door Trim Board)

OEM	Part name	Category
62210-26041-B0	Garnish, Front Pillar, Rh	Inside Trim Board ([12.2013 - ] W(DUAL AIR CONDITIONER) (1312- )KDH202,203,LH202,TRH203..SRF..STD)
62210-26052-B0	Garnish, Front Pillar, Rh	Inside Trim Board ([12.2013 - ] W(DUAL AIR CONDITIONER) (1312- )KDH202,203,LH202,TRH203..SRF..STD)
62220-26021-B0	Garnish, Front Pillar, Lh	Inside Trim Board ([12.2013 - ] W(DUAL AIR CONDITIONER) (1312- )KDH202,203,LH202,TRH203..SRF..STD)
62220-26032-B0	Garnish, Front Pillar, Lh	Inside Trim Board ([12.2013 - ] W(DUAL AIR CONDITIONER) (1312- )KDH202,203,LH202,TRH203..SRF..STD)
62313-26010-C0	Trim, Front Door Opening, Rh	Inside Trim Board ([12.2013 - ] W(DUAL AIR CONDITIONER) (1312- )KDH202,203,LH202,TRH203..SRF..STD)
62314-26010-C0	Trim, Front Door Opening, Lh	Inside Trim Board ([12.2013 - ] W(DUAL AIR CONDITIONER) (1312- )KDH202,203,LH202,TRH203..SRF..STD)
62410-26050-B0	Garnish, Center Pillar, Rh	Inside Trim Board ([12.2013 - ] W(DUAL AIR CONDITIONER) (1312- )KDH202,203,LH202,TRH203..SRF..STD)
62413-26170-B0	Garnish, Center Pillar, Lower Rh	Inside Trim Board ([12.2013 - ] W(DUAL AIR CONDITIONER) (1312- )KDH202,203,LH202,TRH203..SRF..STD)
62413-26190-B0	Garnish, Center Pillar, Lower Rh	Inside Trim Board ([12.2013 - ] W(DUAL AIR CONDITIONER) (1312- )KDH202,203,LH202,TRH203..SRF..STD)
62414-26220-B0	Garnish, Center Pillar, Lower Lh	Inside Trim Board ([12.2013 - ] W(DUAL AIR CONDITIONER) (1312- )KDH202,203,LH202,TRH203..SRF..STD)
62414-26320-B2	Garnish, Center Pillar, Lower Lh	Inside Trim Board ([12.2013 - ] W(DUAL AIR CONDITIONER) (1312- )KDH202,203,LH202,TRH203..SRF..STD)
62414-26340-B2	Garnish, Center Pillar, Lower Lh	Inside Trim Board ([12.2013 - ] W(DUAL AIR CONDITIONER) (1312- )KDH202,203,LH202,TRH203..SRF..STD)
62414-26420-B1	Garnish, Center Pillar, Lower Lh	Inside Trim Board ([12.2013 - ] W(DUAL AIR CONDITIONER) (1312- )KDH202,203,LH202,TRH203..SRF..STD)
62420-26050-B0	Garnish, Center Pillar, Lh	Inside Trim Board ([12.2013 - ] W(DUAL AIR CONDITIONER) (1312- )KDH202,203,LH202,TRH203..SRF..STD)
62424-26031-B0	Cover, Center Pillar Garnish, Lower Lh	Inside Trim Board ([12.2013 - ] W(DUAL AIR CONDITIONER) (1312- )KDH202,203,LH202,TRH203..SRF..STD)
62424-26032-B0	Cover, Center Pillar Garnish, Lower Lh	Inside Trim Board ([12.2013 - ] W(DUAL AIR CONDITIONER) (1312- )KDH202,203,LH202,TRH203..SRF..STD)
62489-26010-B0	Clip, Center Piller Garnish	Inside Trim Board ([12.2013 - ] W(DUAL AIR CONDITIONER) (1312- )KDH202,203,LH202,TRH203..SRF..STD)
62489-26010-B2	Clip, Center Piller Garnish	Inside Trim Board ([12.2013 - ] W(DUAL AIR CONDITIONER) (1312- )KDH202,203,LH202,TRH203..SRF..STD)
62511-26210-B1	Board, Quarter Inside Trim, Rh	Inside Trim Board ([12.2013 - ] W(DUAL AIR CONDITIONER) (1312- )KDH202,203,LH202,TRH203..SRF..STD)
62511-26230-B1	Board, Quarter Inside Trim, Rh	Inside Trim Board ([12.2013 - ] W(DUAL AIR CONDITIONER) (1312- )KDH202,203,LH202,TRH203..SRF..STD)
62631-26240-B1	Board, Quarter Trim, Rear Rh	Inside Trim Board ([12.2013 - ] W(DUAL AIR CONDITIONER) (1312- )KDH202,203,LH202,TRH203..SRF..STD)
62631-26660-B1	Board, Quarter Trim, Rear Rh	Inside Trim Board ([12.2013 - ] W(DUAL AIR CONDITIONER) (1312- )KDH202,203,LH202,TRH203..SRF..STD)
62631-26760-B1	Board, Quarter Trim, Rear Rh	Inside Trim Board ([12.2013 - ] W(DUAL AIR CONDITIONER) (1312- )KDH202,203,LH202,TRH203..SRF..STD)
62632-26310-B1	Board, Quarter Trim, Rear Lh	Inside Trim Board ([12.2013 - ] W(DUAL AIR CONDITIONER) (1312- )KDH202,203,LH202,TRH203..SRF..STD)
62632-26360-B1	Board, Quarter Trim, Rear Lh	Inside Trim Board ([12.2013 - ] W(DUAL AIR CONDITIONER) (1312- )KDH202,203,LH202,TRH203..SRF..STD)
62632-26810-B1	Board, Quarter Trim, Rear Lh	Inside Trim Board ([12.2013 - ] W(DUAL AIR CONDITIONER) (1312- )KDH202,203,LH202,TRH203..SRF..STD)
64383-26060-B1	Grille, Rear Speaker, Rh	Inside Trim Board ([12.2013 - ] W(DUAL AIR CONDITIONER) (1312- )KDH202,203,LH202,TRH203..SRF..STD)
67771-28150	Clip(For Front Body Pillar Garnish)	Inside Trim Board ([12.2013 - ] W(DUAL AIR CONDITIONER) (1312- )KDH202,203,LH202,TRH203..SRF..STD)
75867-33030	Clip (For Center Lower Garnish)	Inside Trim Board ([12.2013 - ] W(DUAL AIR CONDITIONER) (1312- )KDH202,203,LH202,TRH203..SRF..STD)
90183-05016	NUT	Inside Trim Board ([12.2013 - ] W(DUAL AIR CONDITIONER) (1312- )KDH202,203,LH202,TRH203..SRF..STD)
90467-09182	Clip(For Rear Door Trim Board)	Inside Trim Board ([12.2013 - ] W(DUAL AIR CONDITIONER) (1312- )KDH202,203,LH202,TRH203..SRF..STD)
90467-09236	Clip(For Front Body Pillar Garnish)	Inside Trim Board ([12.2013 - ] W(DUAL AIR CONDITIONER) (1312- )KDH202,203,LH202,TRH203..SRF..STD)
90467-10161	Clip	Inside Trim Board ([12.2013 - ] W(DUAL AIR CONDITIONER) (1312- )KDH202,203,LH202,TRH203..SRF..STD)
