KDH202

Toyota HIACE · 2005 · 4,111 parts · 232 categories

4,111 items

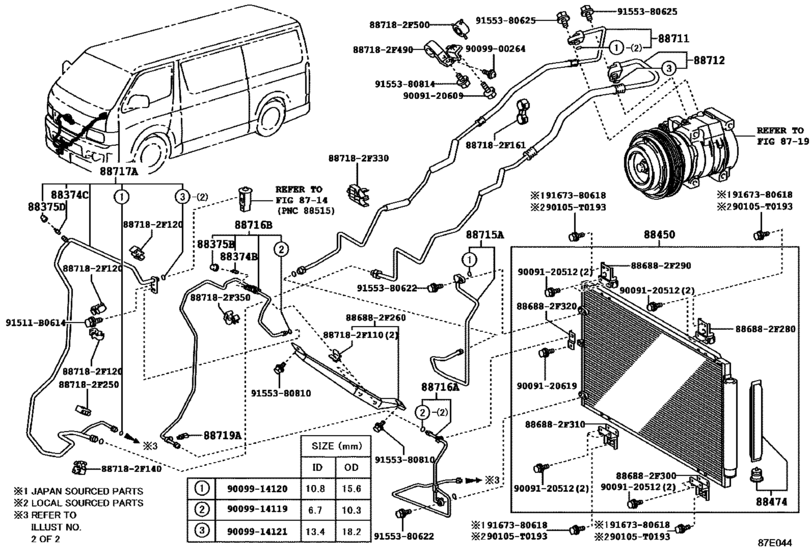

Heating & Air Conditioning - Cooler Piping ([12.2013 - ] FRONT:DUAL A/C (1312- )KDH202..RHD ; (1312- )KDH200..RHD. .GEN,SA) 45

#	OEM	Part name
88374	88374-30010	Valve, Service, No.1
88375	88375-30280	Cap, Service Valve (For Cooler Pipe)
88375	88375-30290	Cap, Service Valve (For Cooler Pipe)
88450	88450-0L010	Condenser Assy, W/receiver
88450	88450-26120	Condenser Assy, W/receiver
88474	88474-17010	Dryer, Cooler
88711	88711-2F310	Hose, Cooler Refrigerant Discharge, No.1
88712	88712-2F360	Hose, Cooler Refrigerant Suction, No.1
88715	88715-0L010	Pipe, Cooler Refrigerant Discharge, A
88715	88715-26390	Pipe, Cooler Refrigerant Discharge, A
88716	88710-0L010	Pipe, Cooler Refrigerant Liquid, A
88716	88716-2N120	Pipe, Cooler Refrigerant Liquid, B
88716	88710-2F631	Pipe, Cooler Refrigerant Liquid, A
88717	88717-2F650	Pipe, Cooler Refrigerant Suction, A
88719	88719-33020	Sensor, Airconditioner Pressure
90105	90105-T0193	New Genuine Part
91511	91511-B0614	BOLT, FLANGE
886882	88688-2F260	Bracket, Cooler Diaphragm
886882	88688-2F280	Bracket, Cooler Diaphragm
886882	88688-2F290	Bracket, Cooler Diaphragm
886882	88688-2F300	Bracket, Cooler Diaphragm
886882	88688-2F310	Bracket, Cooler Diaphragm
886882	88688-2F320	Bracket, Cooler Diaphragm
887182	88718-2F110	Clamp(For Cooler Refrigerant Hose), No.1
887182	88718-2F120	Pipe, Cooler Refrigerant Suction, No.2
887182	88718-2F140	Pipe, Cooler Refrigerant Suction, No.2
887182	88718-2F161	Pipe, Cooler Refrigerant Suction, No.2
887182	88718-2F250	Pipe, Cooler Refrigerant Suction, No.2
887182	88718-2F330	Pipe, Cooler Refrigerant Suction, No.2
887182	88718-2F350	Clamp(For Cooler Refrigerant Pipe), No.1
887182	88718-2F490	Pipe, Cooler Refrigerant Suction, No.2
887182	88718-2F500	Pipe, Cooler Refrigerant Suction, No.2
9009120512	90091-20512	BOLT WWASHER
9009120609	90091-20609	BOLT
9009120619	90091-20619	BOLT
9009900264	90099-00264	SCREW
9009914119	90099-14119	Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119	90099-14119-TH	O RING
9009914120	90099-14120	O-Ring, Cooler Evaporator No.1(Discharge)
9009914121	90099-14121	O-Ring, Cooler Evaporator No.1(Suction)
9155380622	91553-80622	BOLT FLANGE
9155380625	91553-80625	New Genuine Part
9155380810	91553-80810	New Genuine Part
9155380814	91553-80814	BOLT FLANGE
9167380618	91673-80618	BOLT FLANGE WWASER

OEM	Part name	Category
88374-30010	Valve, Service, No.1	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] FRONT:DUAL A/C (1312- )KDH202..RHD ; (1312- )KDH200..RHD. .GEN,SA)
88375-30280	Cap, Service Valve (For Cooler Pipe)	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] FRONT:DUAL A/C (1312- )KDH202..RHD ; (1312- )KDH200..RHD. .GEN,SA)
88375-30290	Cap, Service Valve (For Cooler Pipe)	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] FRONT:DUAL A/C (1312- )KDH202..RHD ; (1312- )KDH200..RHD. .GEN,SA)
88450-0L010	Condenser Assy, W/receiver	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] FRONT:DUAL A/C (1312- )KDH202..RHD ; (1312- )KDH200..RHD. .GEN,SA)
88450-26120	Condenser Assy, W/receiver	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] FRONT:DUAL A/C (1312- )KDH202..RHD ; (1312- )KDH200..RHD. .GEN,SA)
88474-17010	Dryer, Cooler	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] FRONT:DUAL A/C (1312- )KDH202..RHD ; (1312- )KDH200..RHD. .GEN,SA)
88688-2F260	Bracket, Cooler Diaphragm	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] FRONT:DUAL A/C (1312- )KDH202..RHD ; (1312- )KDH200..RHD. .GEN,SA)
88688-2F280	Bracket, Cooler Diaphragm	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] FRONT:DUAL A/C (1312- )KDH202..RHD ; (1312- )KDH200..RHD. .GEN,SA)
88688-2F290	Bracket, Cooler Diaphragm	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] FRONT:DUAL A/C (1312- )KDH202..RHD ; (1312- )KDH200..RHD. .GEN,SA)
88688-2F300	Bracket, Cooler Diaphragm	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] FRONT:DUAL A/C (1312- )KDH202..RHD ; (1312- )KDH200..RHD. .GEN,SA)
88688-2F310	Bracket, Cooler Diaphragm	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] FRONT:DUAL A/C (1312- )KDH202..RHD ; (1312- )KDH200..RHD. .GEN,SA)
88688-2F320	Bracket, Cooler Diaphragm	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] FRONT:DUAL A/C (1312- )KDH202..RHD ; (1312- )KDH200..RHD. .GEN,SA)
88710-0L010	Pipe, Cooler Refrigerant Liquid, A	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] FRONT:DUAL A/C (1312- )KDH202..RHD ; (1312- )KDH200..RHD. .GEN,SA)
88710-2F631	Pipe, Cooler Refrigerant Liquid, A	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] FRONT:DUAL A/C (1312- )KDH202..RHD ; (1312- )KDH200..RHD. .GEN,SA)
88711-2F310	Hose, Cooler Refrigerant Discharge, No.1	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] FRONT:DUAL A/C (1312- )KDH202..RHD ; (1312- )KDH200..RHD. .GEN,SA)
88712-2F360	Hose, Cooler Refrigerant Suction, No.1	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] FRONT:DUAL A/C (1312- )KDH202..RHD ; (1312- )KDH200..RHD. .GEN,SA)
88715-0L010	Pipe, Cooler Refrigerant Discharge, A	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] FRONT:DUAL A/C (1312- )KDH202..RHD ; (1312- )KDH200..RHD. .GEN,SA)
88715-26390	Pipe, Cooler Refrigerant Discharge, A	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] FRONT:DUAL A/C (1312- )KDH202..RHD ; (1312- )KDH200..RHD. .GEN,SA)
88716-2N120	Pipe, Cooler Refrigerant Liquid, B	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] FRONT:DUAL A/C (1312- )KDH202..RHD ; (1312- )KDH200..RHD. .GEN,SA)
88717-2F650	Pipe, Cooler Refrigerant Suction, A	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] FRONT:DUAL A/C (1312- )KDH202..RHD ; (1312- )KDH200..RHD. .GEN,SA)
88718-2F110	Clamp(For Cooler Refrigerant Hose), No.1	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] FRONT:DUAL A/C (1312- )KDH202..RHD ; (1312- )KDH200..RHD. .GEN,SA)
88718-2F120	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] FRONT:DUAL A/C (1312- )KDH202..RHD ; (1312- )KDH200..RHD. .GEN,SA)
88718-2F140	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] FRONT:DUAL A/C (1312- )KDH202..RHD ; (1312- )KDH200..RHD. .GEN,SA)
88718-2F161	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] FRONT:DUAL A/C (1312- )KDH202..RHD ; (1312- )KDH200..RHD. .GEN,SA)
88718-2F250	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] FRONT:DUAL A/C (1312- )KDH202..RHD ; (1312- )KDH200..RHD. .GEN,SA)
88718-2F330	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] FRONT:DUAL A/C (1312- )KDH202..RHD ; (1312- )KDH200..RHD. .GEN,SA)
88718-2F350	Clamp(For Cooler Refrigerant Pipe), No.1	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] FRONT:DUAL A/C (1312- )KDH202..RHD ; (1312- )KDH200..RHD. .GEN,SA)
88718-2F490	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] FRONT:DUAL A/C (1312- )KDH202..RHD ; (1312- )KDH200..RHD. .GEN,SA)
88718-2F500	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] FRONT:DUAL A/C (1312- )KDH202..RHD ; (1312- )KDH200..RHD. .GEN,SA)
88719-33020	Sensor, Airconditioner Pressure	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] FRONT:DUAL A/C (1312- )KDH202..RHD ; (1312- )KDH200..RHD. .GEN,SA)
90091-20512	BOLT WWASHER	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] FRONT:DUAL A/C (1312- )KDH202..RHD ; (1312- )KDH200..RHD. .GEN,SA)
90091-20609	BOLT	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] FRONT:DUAL A/C (1312- )KDH202..RHD ; (1312- )KDH200..RHD. .GEN,SA)
90091-20619	BOLT	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] FRONT:DUAL A/C (1312- )KDH202..RHD ; (1312- )KDH200..RHD. .GEN,SA)
90099-00264	SCREW	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] FRONT:DUAL A/C (1312- )KDH202..RHD ; (1312- )KDH200..RHD. .GEN,SA)
90099-14119	Ring, O(For Cooler Refrigerant Liquid Pipe)	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] FRONT:DUAL A/C (1312- )KDH202..RHD ; (1312- )KDH200..RHD. .GEN,SA)
90099-14119-TH	O RING	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] FRONT:DUAL A/C (1312- )KDH202..RHD ; (1312- )KDH200..RHD. .GEN,SA)
90099-14120	O-Ring, Cooler Evaporator No.1(Discharge)	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] FRONT:DUAL A/C (1312- )KDH202..RHD ; (1312- )KDH200..RHD. .GEN,SA)
90099-14121	O-Ring, Cooler Evaporator No.1(Suction)	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] FRONT:DUAL A/C (1312- )KDH202..RHD ; (1312- )KDH200..RHD. .GEN,SA)
90105-T0193	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] FRONT:DUAL A/C (1312- )KDH202..RHD ; (1312- )KDH200..RHD. .GEN,SA)
91511-B0614	BOLT, FLANGE	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] FRONT:DUAL A/C (1312- )KDH202..RHD ; (1312- )KDH200..RHD. .GEN,SA)
91553-80622	BOLT FLANGE	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] FRONT:DUAL A/C (1312- )KDH202..RHD ; (1312- )KDH200..RHD. .GEN,SA)
91553-80625	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] FRONT:DUAL A/C (1312- )KDH202..RHD ; (1312- )KDH200..RHD. .GEN,SA)
91553-80810	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] FRONT:DUAL A/C (1312- )KDH202..RHD ; (1312- )KDH200..RHD. .GEN,SA)
91553-80814	BOLT FLANGE	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] FRONT:DUAL A/C (1312- )KDH202..RHD ; (1312- )KDH200..RHD. .GEN,SA)
91673-80618	BOLT FLANGE WWASER	Heating & Air Conditioning - Cooler Piping ([12.2013 - ] FRONT:DUAL A/C (1312- )KDH202..RHD ; (1312- )KDH200..RHD. .GEN,SA)
