KDH202

Toyota HIACE · 2005 · 4,111 parts · 232 categories

← Back to categories

4,111 items

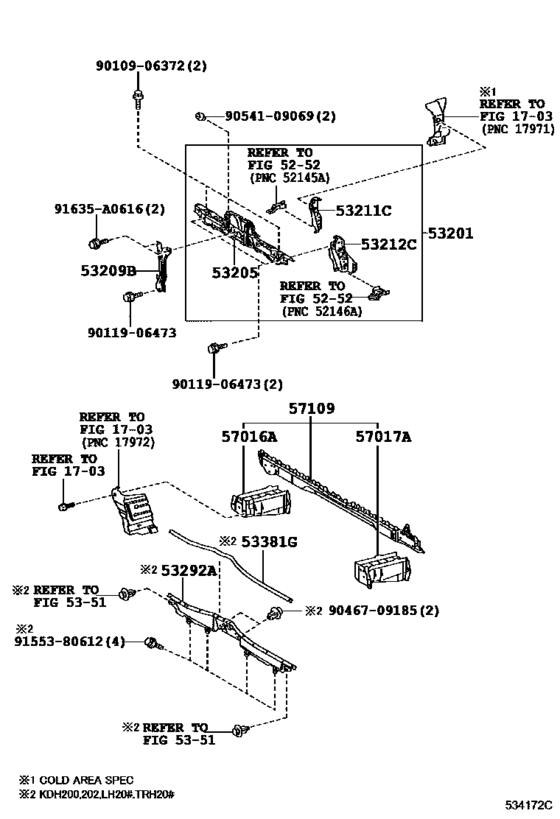

Front Fender Apron & Dash Panel ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#) 16

#	OEM	Part name
53201	53201-26082	Support Sub-Assy, Radiator
53205	53205-26012	Support Sub-Assy, Radiator, Upper
53209	53209-26100	Brace Sub-Assy, Hood Lock Support
53211	53211-26080	Support, Radiator, Rh
53212	53212-26080	Support, Radiator, Lh
53292	53292-26070	Seal, Radiator Support, Upper
53381	53381-26110	Seal, Hood To Radiator Support, No.1
57016	57016-26010	Reinforcement Sub-Assy, Front Side Member, Rh
57017	57017-26010	Reinforcement Sub-Assy, Front Side Member, Lh
57109	57109-26021	Reinforcement Sub-Assy, Dash Panel Cross Member
91635	91635-A0616	BOLT WWASHER
9010906372	90109-06372	Bolt, Hood Lock
9011906473	90119-06473	BOLTWWASHER
9046709185	90467-09185	CLIPS
9054109069	90541-09069	Cushion, Hood Bumper
9155380612	91553-80612	BOLT FLANGE

OEM	Part name	Category
53201-26082	Support Sub-Assy, Radiator	Front Fender Apron & Dash Panel ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#)
53205-26012	Support Sub-Assy, Radiator, Upper	Front Fender Apron & Dash Panel ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#)
53209-26100	Brace Sub-Assy, Hood Lock Support	Front Fender Apron & Dash Panel ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#)
53211-26080	Support, Radiator, Rh	Front Fender Apron & Dash Panel ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#)
53212-26080	Support, Radiator, Lh	Front Fender Apron & Dash Panel ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#)
53292-26070	Seal, Radiator Support, Upper	Front Fender Apron & Dash Panel ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#)
53381-26110	Seal, Hood To Radiator Support, No.1	Front Fender Apron & Dash Panel ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#)
57016-26010	Reinforcement Sub-Assy, Front Side Member, Rh	Front Fender Apron & Dash Panel ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#)
57017-26010	Reinforcement Sub-Assy, Front Side Member, Lh	Front Fender Apron & Dash Panel ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#)
57109-26021	Reinforcement Sub-Assy, Dash Panel Cross Member	Front Fender Apron & Dash Panel ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#)
90109-06372	Bolt, Hood Lock	Front Fender Apron & Dash Panel ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#)
90119-06473	BOLTWWASHER	Front Fender Apron & Dash Panel ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#)
90467-09185	CLIPS	Front Fender Apron & Dash Panel ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#)
90541-09069	Cushion, Hood Bumper	Front Fender Apron & Dash Panel ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#)
91553-80612	BOLT FLANGE	Front Fender Apron & Dash Panel ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#)
91635-A0616	BOLT WWASHER	Front Fender Apron & Dash Panel ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#)
