Search › Model › KDH200

KDH200

Toyota HIACE · 2004 · 3,778 parts · 211 categories

← Back to categories

3,778 items

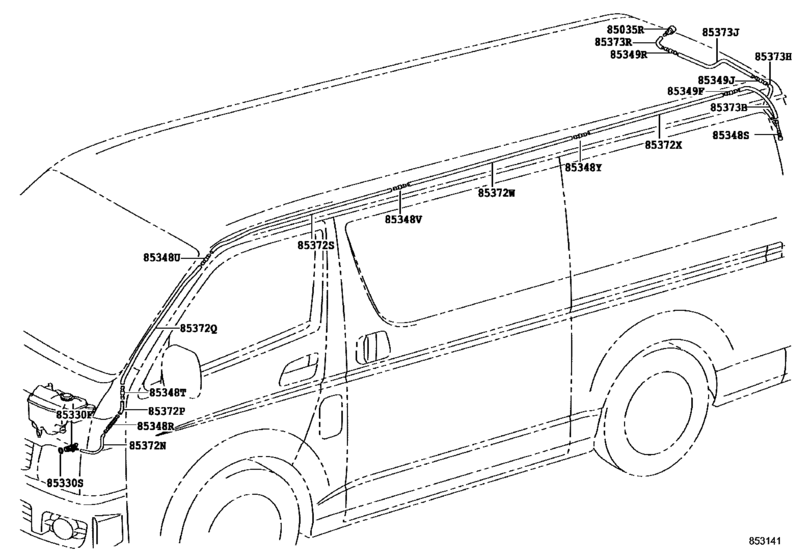

Rear Washer ([12.2013 - ] (1312- )KDH203..02S,12S ; (1312- )KDH200,2 01,202,LH20#,TRH20#..02S,03S,06S,12 S,15S..4FC,5F ; ( 1501- )KDH201..05S) 11

#	OEM	Part name
85035	85391-26050	Nozzle Sub-Assy, Rear Washer
85330	85330-60160	Motor Assy, Rear Washer
85330	85336-60300	Bush, Windshield Washer Jar
85348	85349-32150	Joint, Windshield Washer Hose, No.1
85348	85377-26280	Joint, Rear Washer Elbow, No.1
85348	85349-89122	Valve Sub-Assy, Washer
85372	90099-62086	Hose, Rear Washer (From Joint To Joint), No.1
85372	90099-62105	Hose, Rear Washer (From Joint To Joint), No.2
85372	90446-07001	Hose, Windshield Washer (From Motor To Joint)
85373	90099-62092	Hose, Rear Washer (From Motor To Joint)
85373	90099-33080	Hose, Windshield Washer (From Motor To Joint)

OEM	Part name	Category
85330-60160	Motor Assy, Rear Washer	Rear Washer ([12.2013 - ] (1312- )KDH203..02S,12S ; (1312- )KDH200,2 01,202,LH20#,TRH20#..02S,03S,06S,12 S,15S..4FC,5F ; ( 1501- )KDH201..05S)
85336-60300	Bush, Windshield Washer Jar	Rear Washer ([12.2013 - ] (1312- )KDH203..02S,12S ; (1312- )KDH200,2 01,202,LH20#,TRH20#..02S,03S,06S,12 S,15S..4FC,5F ; ( 1501- )KDH201..05S)
85349-32150	Joint, Windshield Washer Hose, No.1	Rear Washer ([12.2013 - ] (1312- )KDH203..02S,12S ; (1312- )KDH200,2 01,202,LH20#,TRH20#..02S,03S,06S,12 S,15S..4FC,5F ; ( 1501- )KDH201..05S)
85349-89122	Valve Sub-Assy, Washer	Rear Washer ([12.2013 - ] (1312- )KDH203..02S,12S ; (1312- )KDH200,2 01,202,LH20#,TRH20#..02S,03S,06S,12 S,15S..4FC,5F ; ( 1501- )KDH201..05S)
85377-26280	Joint, Rear Washer Elbow, No.1	Rear Washer ([12.2013 - ] (1312- )KDH203..02S,12S ; (1312- )KDH200,2 01,202,LH20#,TRH20#..02S,03S,06S,12 S,15S..4FC,5F ; ( 1501- )KDH201..05S)
85391-26050	Nozzle Sub-Assy, Rear Washer	Rear Washer ([12.2013 - ] (1312- )KDH203..02S,12S ; (1312- )KDH200,2 01,202,LH20#,TRH20#..02S,03S,06S,12 S,15S..4FC,5F ; ( 1501- )KDH201..05S)
90099-33080	Hose, Windshield Washer (From Motor To Joint)	Rear Washer ([12.2013 - ] (1312- )KDH203..02S,12S ; (1312- )KDH200,2 01,202,LH20#,TRH20#..02S,03S,06S,12 S,15S..4FC,5F ; ( 1501- )KDH201..05S)
90099-62086	Hose, Rear Washer (From Joint To Joint), No.1	Rear Washer ([12.2013 - ] (1312- )KDH203..02S,12S ; (1312- )KDH200,2 01,202,LH20#,TRH20#..02S,03S,06S,12 S,15S..4FC,5F ; ( 1501- )KDH201..05S)
90099-62092	Hose, Rear Washer (From Motor To Joint)	Rear Washer ([12.2013 - ] (1312- )KDH203..02S,12S ; (1312- )KDH200,2 01,202,LH20#,TRH20#..02S,03S,06S,12 S,15S..4FC,5F ; ( 1501- )KDH201..05S)
90099-62105	Hose, Rear Washer (From Joint To Joint), No.2	Rear Washer ([12.2013 - ] (1312- )KDH203..02S,12S ; (1312- )KDH200,2 01,202,LH20#,TRH20#..02S,03S,06S,12 S,15S..4FC,5F ; ( 1501- )KDH201..05S)
90446-07001	Hose, Windshield Washer (From Motor To Joint)	Rear Washer ([12.2013 - ] (1312- )KDH203..02S,12S ; (1312- )KDH200,2 01,202,LH20#,TRH20#..02S,03S,06S,12 S,15S..4FC,5F ; ( 1501- )KDH201..05S)

Source: Public OEM parts-catalog data
Variants: 2 / 63
Category: 211
Collected: 2026-08-03
