KDH200

Toyota HIACE · 2004 · 3,778 parts · 211 categories

3,778 items

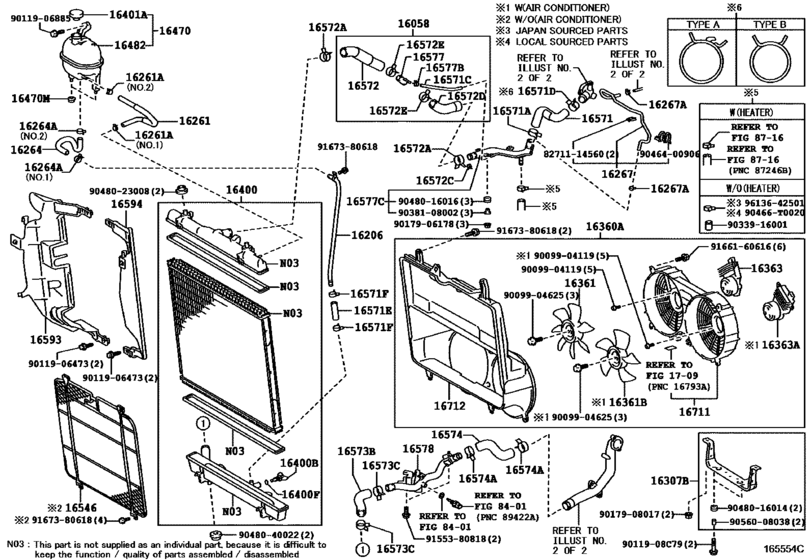

Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD) 69

#	OEM	Part name
16058	16058-30020	Hose Sub-Assy, Radiator, No.2
16206	16206-75010	Pipe Sub-Assy, Water By-Pass
16261	16261-75230	Hose, Water By-Pass
16261	90467-15022	Clip Or Clamp(For Ventilation Hose)
16261	96136-41501	Clamp Or Clip, Hose(For Water By-Pass Hose)
16264	16264-75170	Hose, Water By-Pass, No.2
16264	96136-42101	Clip, Hose(For Radiator Hose Sub-Assy)
16264	96136-42501	Clip(For Ventilation Hose)
16264	96138-42501	Clip, Hose(For Radiator Hose Sub-Assy)
16267	16267-30130	Hose, Water By-Pass, No.3
16307	16307-30010	Bracket Sub-Assy, Fan
16360	16360-30022	Fan Assy, W/motor
16360	16360-30023	Fan Assy, W/motor
16360	16360-30012	Fan Assy, W/motor
16360	16360-30013	Fan Assy, W/motor
16361	16361-30060	Fan
16361	16361-30050	Fan
16363	16363-30041	Motor, Cooling Fan
16400	16400-30163	Radiator Assy
16400	16417-30170	Cock Sub-Assy, Radiator Drain
16400	16418-15520	Packing(For Radiator Drain Cock)
16401	16475-28140	Cap Sub-Assy, Radiator Reserve Tank
16401	16475-37010	Cap Sub-Assy, Radiator Reserve Tank
16401	16475-37011	Cap Sub-Assy, Radiator Reserve Tank
16470	16470-75122	Tank Assy, Radiator Reserve
16470	16470-75124	Tank Assy, Radiator Reserve
16470	16470-75123	Tank Assy, Radiator Reserve
16470	90480-14470	Grommet
16470	90480-15023	Grommet
16482	16480-75070	Tank Sub-Assy, Radiator Reserve
16546	16546-75010	Protector, Radiator
16571	16571-30070	Hose, Radiator, Inlet
16571	96136-54801	Clamp Or Clip, Hose(For Radiator Inlet)
16571	99555-10500	Hose, Water, No.1
16571	90466-41007	Clamp Or Clip, Hose(For Radiator Inlet)
16571	99555-20075	Hose, Water
16572	16572-30110	Hose, Radiator, Outlet
16572	16572-30090	Hose, Radiator, No.2
16572	96136-54301	Clip, Radiator Hose, No.1
16573	16573-30030	Hose, Radiator, No.3
16574	16574-30010	Hose, Radiator, No.4
16577	16577-30040	Pipe, Radiator, No.7
16577	16577-30021	Pipe, Radiator
16578	16578-30011	Pipe, Radiator, No.2
16711	16711-30081	Shroud, Fan
16711	16711-30082	Shroud, Fan
16711	16711-30111	Shroud, Fan
16711	16711-30112	Shroud, Fan
16712	16712-75122	Shroud, Fan, No.2
90466	90466-T0020	Clip(For Water By-Pass Hose No.1)
9011908	90119-08C79	New Genuine Part
8271114560	82711-14560	Wire, Fuse To Fuse(for Combustion Heater)
9009904119	90099-04119	BOLT WASHER HEAD
9009904625	90099-04625	New Genuine Part
9011906473	90119-06473	BOLTWWASHER
9011906885	90119-06885	Bolt, Radiator Tank Pipe
9017906178	90179-06178	Nut (For Rear Wiper Arm Setting)
9017908017	90179-08017	NUT
9033916001	90339-16001	Plug, Heater Water
9038108002	90381-08002	Grommet(For Intake Air Connector)
9046400906	90464-00906	New Genuine Part
9048016014	90480-16014	Grommet
9048016016	90480-16016	New Genuine Part
9048023008	90480-23008	Support, Radiator, Lower
9048040022	90480-40022	Support, Radiator, Lower
9056008038	90560-08038	Spacer(For Air Cleaner)
9155380818	91553-80818	BOLT FLANGE
9166160616	91661-60616	BOLT
9167380618	91673-80618	BOLT FLANGE WWASER

OEM	Part name	Category
16058-30020	Hose Sub-Assy, Radiator, No.2	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
16206-75010	Pipe Sub-Assy, Water By-Pass	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
16261-75230	Hose, Water By-Pass	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
16264-75170	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
16267-30130	Hose, Water By-Pass, No.3	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
16307-30010	Bracket Sub-Assy, Fan	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
16360-30012	Fan Assy, W/motor	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
16360-30013	Fan Assy, W/motor	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
16360-30022	Fan Assy, W/motor	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
16360-30023	Fan Assy, W/motor	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
16361-30050	Fan	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
16361-30060	Fan	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
16363-30041	Motor, Cooling Fan	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
16400-30163	Radiator Assy	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
16417-30170	Cock Sub-Assy, Radiator Drain	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
16418-15520	Packing(For Radiator Drain Cock)	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
16470-75122	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
16470-75123	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
16470-75124	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
16475-28140	Cap Sub-Assy, Radiator Reserve Tank	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
16475-37010	Cap Sub-Assy, Radiator Reserve Tank	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
16475-37011	Cap Sub-Assy, Radiator Reserve Tank	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
16480-75070	Tank Sub-Assy, Radiator Reserve	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
16546-75010	Protector, Radiator	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
16571-30070	Hose, Radiator, Inlet	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
16572-30090	Hose, Radiator, No.2	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
16572-30110	Hose, Radiator, Outlet	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
16573-30030	Hose, Radiator, No.3	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
16574-30010	Hose, Radiator, No.4	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
16577-30021	Pipe, Radiator	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
16577-30040	Pipe, Radiator, No.7	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
16578-30011	Pipe, Radiator, No.2	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
16711-30081	Shroud, Fan	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
16711-30082	Shroud, Fan	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
16711-30111	Shroud, Fan	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
16711-30112	Shroud, Fan	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
16712-75122	Shroud, Fan, No.2	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
82711-14560	Wire, Fuse To Fuse(for Combustion Heater)	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
90099-04119	BOLT WASHER HEAD	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
90099-04625	New Genuine Part	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
90119-06473	BOLTWWASHER	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
90119-06885	Bolt, Radiator Tank Pipe	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
90119-08C79	New Genuine Part	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
90179-06178	Nut (For Rear Wiper Arm Setting)	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
90179-08017	NUT	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
90339-16001	Plug, Heater Water	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
90381-08002	Grommet(For Intake Air Connector)	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
90464-00906	New Genuine Part	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
90466-41007	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
90466-T0020	Clip(For Water By-Pass Hose No.1)	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
90467-15022	Clip Or Clamp(For Ventilation Hose)	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
90480-14470	Grommet	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
90480-15023	Grommet	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
90480-16014	Grommet	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
90480-16016	New Genuine Part	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
90480-23008	Support, Radiator, Lower	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
90480-40022	Support, Radiator, Lower	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
90560-08038	Spacer(For Air Cleaner)	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
91553-80818	BOLT FLANGE	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
91661-60616	BOLT	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
91673-80618	BOLT FLANGE WWASER	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
96136-41501	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
96136-42101	Clip, Hose(For Radiator Hose Sub-Assy)	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
96136-42501	Clip(For Ventilation Hose)	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
96136-54301	Clip, Radiator Hose, No.1	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
96136-54801	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
96138-42501	Clip, Hose(For Radiator Hose Sub-Assy)	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
99555-10500	Hose, Water, No.1	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
99555-20075	Hose, Water	Radiator & Water Outlet ([12.2013 - ] (1312- )1KDFTV,2KDFTV..RHD)
