Search › Model › KDH200

KDH200

Toyota HIACE · 2004 · 3,778 parts · 211 categories

3,778 items

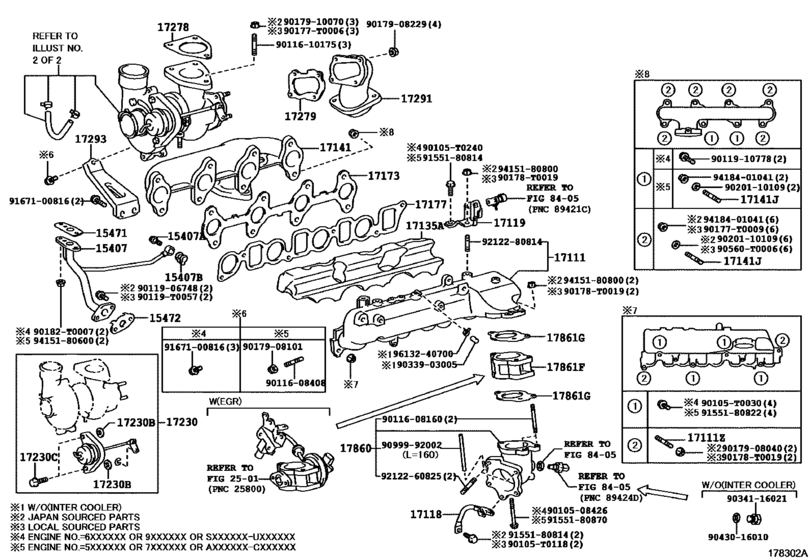

Manifold ([12.2013 - ] (1312- )2KDFTV) 81

#	OEM	Part name
4175	04175-0L112	Gasket Kit, Turbocharger
4175	04175-0L113	Gasket Kit, Turbocharger
4175	04175-30081	Gasket Kit, Turbocharger
4175	04175-30082	Gasket Kit, Turbocharger
15407	15407-30042	Pipe Sub-Assy, Turbo Oil Inlet
15407	90401-T0004	Bolt, Union(For Turbo Oil Inlet Pipe)
15407	90430-T0006	Gasket(For Turbo Oil Inlet Pipe)
15407	90401-12097	Bolt, Union(For Turbo Oil Inlet Pipe)
15407	90904-30004	Gasket(For Turbo Oil Inlet Pipe)
15471	15471-0L011	Gasket, Turbo Oil Inlet
15471	15471-30011	Gasket, Turbo Oil Inlet
15472	15472-0L010	Gasket, Turbo Oil Outlet, No.1
15472	15472-30010	Gasket, Turbo Oil Outlet, No.1
17111	17101-30021	Manifold, Intake
17111	90116-T0011	Bolt, Stud(For Intake Manifold To Cylinder Head)
17111	90126-08052	Bolt, Stud(For Oil Pan)
17118	17118-30040	Stay, Manifold
17119	17118-30050	Stay, Manifold
17135	17135-0L010	Insulator, Intake Manifold, No.1
17135	17135-30011	Insulator, Intake Manifold, No.1
17141	17141-30050	Manifold, Exhaust
17141	90126-10035	Bolt, Stud(For Exhaust Manifold, Rh)
17173	17173-0L011	Gasket, Exhaust Manifold To Head
17173	17173-30020	Gasket, Exhaust Manifold To Head
17177	17177-0L011	Gasket, Intake Manifold To Head, No.1
17177	17177-30011	Gasket, Intake Manifold To Head, No.1
17201	17201-30080	Turbocharger Sub-Assy
17201	17201-0L100	TURBOCHARGER
17230	17230-39105	Actuator Assy, W/bracket
17230	90201-06042	Washer, Plate(For Repair Actuator Set)
17230	90201-06043	Washer, Plate(For Repair Actuator Set)
17230	90201-06044	Washer, Plate(For Repair Actuator Set)
17230	90201-06045	Washer, Plate(For Repair Actuator Set)
17230	91551-80618	Bolt, W/washer(For Repair Actuator Set)
17278	17278-0L010	Gasket, Turbo To Exhaust Manifold
17278	17278-67010	Gasket, Turbo To Exhaust Manifold
17279	17279-0L021	Gasket, Turbine Outlet Elbow
17279	17279-30020	Gasket, Turbine Outlet Elbow
17291	17291-30030	Elbow, Turbine Outlet
17293	17293-30030	Stay, Turbocharger
17294	90445-12251	Hose, Actuator
17294	96132-51100	Clip (For Hose)
17860	17860-30050	Connector Assy, Intake Air
17861	26171-30013	Gasket, Intake Air Connector
17861	17862-30010	Connector, Intake Air
17861	26171-30030	Gasket, Intake Air Connector
90105	90105-T0030	New Genuine Part
90105	90105-T0118	BOLT FLANGE
90105	90105-T0240	New Genuine Part
90119	90119-T0057	New Genuine Part
90177	90177-T0006	Nut, Exhaust Pipe Set Stud Bolt
90177	90179-10070	Nut, Exhaust Pipe Set Stud Bolt
90177	90177-T0009	New Genuine Part
90178	90178-T0019	Nut (For Connecting Rod Swivel)
90182	90182-T0007	New Genuine Part
90560	90560-T0006	New Genuine Part
9010508426	90105-08426	New Genuine Part
9011608160	90116-08160	Bolt, Stud(For Manifold To Carburetor)
9011608260	90116-08260	Bolt, Stud(For Turbine Housing)
9011608408	90116-08408	BOLT STUD
9011610175	90116-10175	Bolt, Stud(For Turbine Housing)
9011906748	90119-06748	BOLT WWASHER
9011910778	90119-10778	BOLT W-WASHER
9017908040	90179-08040	Nut, Cap(For Cylinder Head Cover)
9017908101	90179-08101	NUT
9017908229	90179-08229	NUT
9020110109	90201-10109	WASHER PLATE
9033903005	90339-03005	Plug, No.1
9034116021	90341-16021	New Genuine Part
9043016010	90430-16010	Gasket, Neutral Start Switch
9099992002	90999-92002	Air Hose (300 mm)
9155180814	91551-80814	Bolt, Hexagon (For Rear Spring Seat Bolt)
9155180822	91551-80822	Bolt, Hexagon(For Steering Column Bracket)
9155180870	91551-80870	Bolt(For Cylinder Head Cover)
9167100816	91671-00816	New Genuine Part
9212260825	92122-60825	Bolt, Stud(For Manifold To Carburetor)
9212280814	92122-80814	New Genuine Part
9415180600	94151-80600	Nut, Cap(For Cylinder Head Cover)
9415180800	94151-80800	Nut (For Transmission Control Cable)
9418401041	94184-01041	Nut
9613240700	96132-40700	Clip(For Fuel Vapor Feed Hose)

OEM	Part name	Category
04175-0L112	Gasket Kit, Turbocharger	Manifold ([12.2013 - ] (1312- )2KDFTV)
04175-0L113	Gasket Kit, Turbocharger	Manifold ([12.2013 - ] (1312- )2KDFTV)
04175-30081	Gasket Kit, Turbocharger	Manifold ([12.2013 - ] (1312- )2KDFTV)
04175-30082	Gasket Kit, Turbocharger	Manifold ([12.2013 - ] (1312- )2KDFTV)
15407-30042	Pipe Sub-Assy, Turbo Oil Inlet	Manifold ([12.2013 - ] (1312- )2KDFTV)
15471-0L011	Gasket, Turbo Oil Inlet	Manifold ([12.2013 - ] (1312- )2KDFTV)
15471-30011	Gasket, Turbo Oil Inlet	Manifold ([12.2013 - ] (1312- )2KDFTV)
15472-0L010	Gasket, Turbo Oil Outlet, No.1	Manifold ([12.2013 - ] (1312- )2KDFTV)
15472-30010	Gasket, Turbo Oil Outlet, No.1	Manifold ([12.2013 - ] (1312- )2KDFTV)
17101-30021	Manifold, Intake	Manifold ([12.2013 - ] (1312- )2KDFTV)
17118-30040	Stay, Manifold	Manifold ([12.2013 - ] (1312- )2KDFTV)
17118-30050	Stay, Manifold	Manifold ([12.2013 - ] (1312- )2KDFTV)
17135-0L010	Insulator, Intake Manifold, No.1	Manifold ([12.2013 - ] (1312- )2KDFTV)
17135-30011	Insulator, Intake Manifold, No.1	Manifold ([12.2013 - ] (1312- )2KDFTV)
17141-30050	Manifold, Exhaust	Manifold ([12.2013 - ] (1312- )2KDFTV)
17173-0L011	Gasket, Exhaust Manifold To Head	Manifold ([12.2013 - ] (1312- )2KDFTV)
17173-30020	Gasket, Exhaust Manifold To Head	Manifold ([12.2013 - ] (1312- )2KDFTV)
17177-0L011	Gasket, Intake Manifold To Head, No.1	Manifold ([12.2013 - ] (1312- )2KDFTV)
17177-30011	Gasket, Intake Manifold To Head, No.1	Manifold ([12.2013 - ] (1312- )2KDFTV)
17201-0L100	TURBOCHARGER	Manifold ([12.2013 - ] (1312- )2KDFTV)
17201-30080	Turbocharger Sub-Assy	Manifold ([12.2013 - ] (1312- )2KDFTV)
17230-39105	Actuator Assy, W/bracket	Manifold ([12.2013 - ] (1312- )2KDFTV)
17278-0L010	Gasket, Turbo To Exhaust Manifold	Manifold ([12.2013 - ] (1312- )2KDFTV)
17278-67010	Gasket, Turbo To Exhaust Manifold	Manifold ([12.2013 - ] (1312- )2KDFTV)
17279-0L021	Gasket, Turbine Outlet Elbow	Manifold ([12.2013 - ] (1312- )2KDFTV)
17279-30020	Gasket, Turbine Outlet Elbow	Manifold ([12.2013 - ] (1312- )2KDFTV)
17291-30030	Elbow, Turbine Outlet	Manifold ([12.2013 - ] (1312- )2KDFTV)
17293-30030	Stay, Turbocharger	Manifold ([12.2013 - ] (1312- )2KDFTV)
17860-30050	Connector Assy, Intake Air	Manifold ([12.2013 - ] (1312- )2KDFTV)
17862-30010	Connector, Intake Air	Manifold ([12.2013 - ] (1312- )2KDFTV)
26171-30013	Gasket, Intake Air Connector	Manifold ([12.2013 - ] (1312- )2KDFTV)
26171-30030	Gasket, Intake Air Connector	Manifold ([12.2013 - ] (1312- )2KDFTV)
90105-08426	New Genuine Part	Manifold ([12.2013 - ] (1312- )2KDFTV)
90105-T0030	New Genuine Part	Manifold ([12.2013 - ] (1312- )2KDFTV)
90105-T0118	BOLT FLANGE	Manifold ([12.2013 - ] (1312- )2KDFTV)
90105-T0240	New Genuine Part	Manifold ([12.2013 - ] (1312- )2KDFTV)
90116-08160	Bolt, Stud(For Manifold To Carburetor)	Manifold ([12.2013 - ] (1312- )2KDFTV)
90116-08260	Bolt, Stud(For Turbine Housing)	Manifold ([12.2013 - ] (1312- )2KDFTV)
90116-08408	BOLT STUD	Manifold ([12.2013 - ] (1312- )2KDFTV)
90116-10175	Bolt, Stud(For Turbine Housing)	Manifold ([12.2013 - ] (1312- )2KDFTV)
90116-T0011	Bolt, Stud(For Intake Manifold To Cylinder Head)	Manifold ([12.2013 - ] (1312- )2KDFTV)
90119-06748	BOLT WWASHER	Manifold ([12.2013 - ] (1312- )2KDFTV)
90119-10778	BOLT W-WASHER	Manifold ([12.2013 - ] (1312- )2KDFTV)
90119-T0057	New Genuine Part	Manifold ([12.2013 - ] (1312- )2KDFTV)
90126-08052	Bolt, Stud(For Oil Pan)	Manifold ([12.2013 - ] (1312- )2KDFTV)
90126-10035	Bolt, Stud(For Exhaust Manifold, Rh)	Manifold ([12.2013 - ] (1312- )2KDFTV)
90177-T0006	Nut, Exhaust Pipe Set Stud Bolt	Manifold ([12.2013 - ] (1312- )2KDFTV)
90177-T0009	New Genuine Part	Manifold ([12.2013 - ] (1312- )2KDFTV)
90178-T0019	Nut (For Connecting Rod Swivel)	Manifold ([12.2013 - ] (1312- )2KDFTV)
90179-08040	Nut, Cap(For Cylinder Head Cover)	Manifold ([12.2013 - ] (1312- )2KDFTV)
90179-08101	NUT	Manifold ([12.2013 - ] (1312- )2KDFTV)
90179-08229	NUT	Manifold ([12.2013 - ] (1312- )2KDFTV)
90179-10070	Nut, Exhaust Pipe Set Stud Bolt	Manifold ([12.2013 - ] (1312- )2KDFTV)
90182-T0007	New Genuine Part	Manifold ([12.2013 - ] (1312- )2KDFTV)
90201-06042	Washer, Plate(For Repair Actuator Set)	Manifold ([12.2013 - ] (1312- )2KDFTV)
90201-06043	Washer, Plate(For Repair Actuator Set)	Manifold ([12.2013 - ] (1312- )2KDFTV)
90201-06044	Washer, Plate(For Repair Actuator Set)	Manifold ([12.2013 - ] (1312- )2KDFTV)
90201-06045	Washer, Plate(For Repair Actuator Set)	Manifold ([12.2013 - ] (1312- )2KDFTV)
90201-10109	WASHER PLATE	Manifold ([12.2013 - ] (1312- )2KDFTV)
90339-03005	Plug, No.1	Manifold ([12.2013 - ] (1312- )2KDFTV)
90341-16021	New Genuine Part	Manifold ([12.2013 - ] (1312- )2KDFTV)
90401-12097	Bolt, Union(For Turbo Oil Inlet Pipe)	Manifold ([12.2013 - ] (1312- )2KDFTV)
90401-T0004	Bolt, Union(For Turbo Oil Inlet Pipe)	Manifold ([12.2013 - ] (1312- )2KDFTV)
90430-16010	Gasket, Neutral Start Switch	Manifold ([12.2013 - ] (1312- )2KDFTV)
90430-T0006	Gasket(For Turbo Oil Inlet Pipe)	Manifold ([12.2013 - ] (1312- )2KDFTV)
90445-12251	Hose, Actuator	Manifold ([12.2013 - ] (1312- )2KDFTV)
90560-T0006	New Genuine Part	Manifold ([12.2013 - ] (1312- )2KDFTV)
90904-30004	Gasket(For Turbo Oil Inlet Pipe)	Manifold ([12.2013 - ] (1312- )2KDFTV)
90999-92002	Air Hose (300 mm)	Manifold ([12.2013 - ] (1312- )2KDFTV)
91551-80618	Bolt, W/washer(For Repair Actuator Set)	Manifold ([12.2013 - ] (1312- )2KDFTV)
91551-80814	Bolt, Hexagon (For Rear Spring Seat Bolt)	Manifold ([12.2013 - ] (1312- )2KDFTV)
91551-80822	Bolt, Hexagon(For Steering Column Bracket)	Manifold ([12.2013 - ] (1312- )2KDFTV)
91551-80870	Bolt(For Cylinder Head Cover)	Manifold ([12.2013 - ] (1312- )2KDFTV)
91671-00816	New Genuine Part	Manifold ([12.2013 - ] (1312- )2KDFTV)
92122-60825	Bolt, Stud(For Manifold To Carburetor)	Manifold ([12.2013 - ] (1312- )2KDFTV)
92122-80814	New Genuine Part	Manifold ([12.2013 - ] (1312- )2KDFTV)
94151-80600	Nut, Cap(For Cylinder Head Cover)	Manifold ([12.2013 - ] (1312- )2KDFTV)
94151-80800	Nut (For Transmission Control Cable)	Manifold ([12.2013 - ] (1312- )2KDFTV)
94184-01041	Nut	Manifold ([12.2013 - ] (1312- )2KDFTV)
96132-40700	Clip(For Fuel Vapor Feed Hose)	Manifold ([12.2013 - ] (1312- )2KDFTV)
96132-51100	Clip (For Hose)	Manifold ([12.2013 - ] (1312- )2KDFTV)

Source: Public OEM parts-catalog data
Variants: 2 / 63
Category: 211
Collected: 2026-08-03
