Search › Model › KDH200

KDH200

Toyota HIACE · 2004 · 3,778 parts · 211 categories

3,778 items

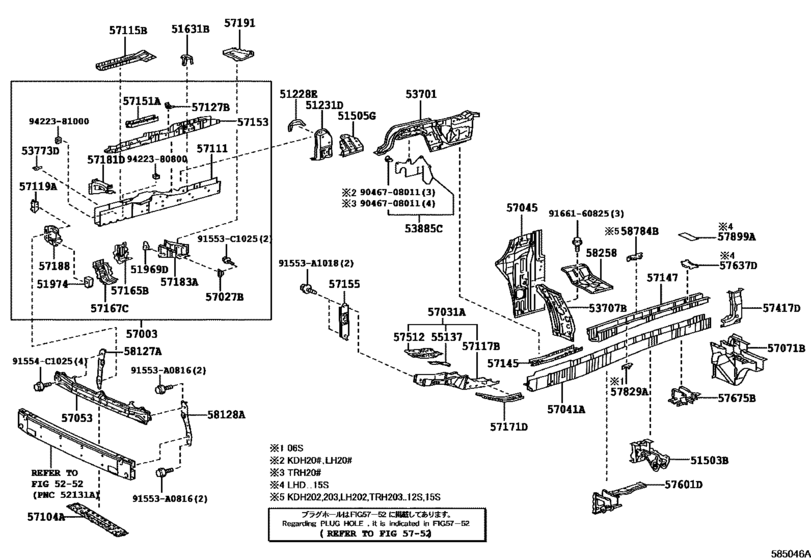

Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN) 63

#	OEM	Part name
51228	51228-26050	Patch, Front Suspension Member, Rh
51231	51231-26050	Bracket, Front Shock Absorber, Rh
51503	51503-26040	Brace Sub-Assy, Lower Arm Bracket, Rh
51505	51505-26091	Support Sub-Assy, Upper Control Arm, Rh
51505	51505-26092	Support Sub-Assy, Upper Control Arm, Rh
51631	51631-26060	Stopper, Front Suspention Rebound, Rh
51969	51969-26030	Reinforcement, Transport Hook Mounting, Rear Rh
51974	51974-26011	Nut, Transport Hook, Rh
53701	53701-26100	Apron Sub-Assy, Front Fender, Rh
53701	53701-26150	Apron Sub-Assy, Front Fender, Rh
53707	53707-26080	Apron Sub-Assy, Fender Side, Rh
53773	53773-26020	Bracket, Air Cleaner Mounting
53885	53885-26071	Seal, Fender Apron Mudguard, Rh
55137	55137-26020	Brace, Dash To Frame, Rh
57003	57003-26350	Member Sub-Assy, Front Side, Rh
57027	57027-26010	Member Sub-Assy, Front Side, Inner Rh
57031	57031-26030	Reinforce Sub-Assy, Front Side Member, No.2 Rh
57041	57041-26030	Member Sub-Assy, Center Floor Side, Rh
57045	57045-26240	Plate Sub-Assy, Floor Side Rail, Rh
57045	57045-26290	Plate Sub-Assy, Floor Side Rail, Rh
57045	57045-26300	Plate Sub-Assy, Floor Side Rail, Rh
57045	57045-26310	Plate Sub-Assy, Floor Side Rail, Rh
57045	57045-26320	Plate Sub-Assy, Floor Side Rail, Rh
57053	57053-26030	Reinforcement Sub-Assy, Front Floor Cross Member, Rh
57071	57071-26330	Hanger Sub-Assy, Rear Spring, Front A Rh
57071	57071-26260	Hanger Sub-Assy, Rear Spring, Front A Rh
57104	57104-26191	Member Sub-Assy, Front Cross
57111	57111-26170	Member, Front Side, Rh
57115	57115-26030	Plate, Front Side Member, No.1 Rh
57117	57117-26040	Reinforcement, Front Bumper Mounting, Rh
57119	57119-26030	Plate, Front Side Member, Front Rh
57127	57127-26100	Plate, Front Suspension Member Mounting, Rh
57145	57145-26051	Plate, Front Side Member, Center Rh
57147	57147-26020	Plate, Front Side Member, Rear Rh
57151	57151-26150	Reinforcement, Front Side Member, No.1 Rh
57153	57153-26090	Reinforcement, Front Side Member, No.2 Rh
57155	57155-26050	Reinforcement, Front Side Member, No.3, Rh
57165	57165-26020	Reinforcement, Front Crossmember, No.2 Rh
57167	57167-26020	Gusset, Front Crossmember Side, Rh
57171	57171-26010	Plate, Front Side Member To Floor, Rh
57181	57181-26030	Extension, Front Crossmember, Front Rh
57183	57183-26040	Extension, Front Crossmember, Rr Rh
57188	57188-26030	Reinforcement, Front Side Member Extention, Rh
57191	57191-26010	Plate, Front Side Member, Outer Rear Rh
57417	58037-26010	Reinforcement, Floor Side, Inner Rh
57417	57417-26040	Reinforcement, Floor Side, Inner Rh
57512	57511-26020	Reinforcement, Front Floor, Rh
57601	57601-26032	Member Sub-Assy, Rear Floor Side, Rh
57675	57603-26090	Reinforcement, Rear Floor Cross, No.1 Rh
58127	58127-26050	Reinforce, Front Cross To Front Panel Member, Rh
58128	53036-26010	Reinforcement, Front Cross To Front Panel Member, Lh
58128	53036-26020	Reinforcement, Front Cross To Front Panel Member, Lh
58258	58258-26010	Plate, Water Guard, No.1
91553	91553-A0816	BOLT FLANGE
91553	91553-A1018	New Genuine Part
91553	91553-C1025	BOLT FLANGE
91554	91554-C1025	BOLT FLANGE
9046708011	90467-08011	Clip(For Headlamp Cover Seal)
9046708011	90467-08011-TH	CLIP
9046708011	90467-08011-83	Clip(For Headlamp Cover Seal)
9166160825	91661-60825	New Genuine Part
9422380800	94223-80800	New Genuine Part
9422381000	94223-81000	New Genuine Part

OEM	Part name	Category
51228-26050	Patch, Front Suspension Member, Rh	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
51231-26050	Bracket, Front Shock Absorber, Rh	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
51503-26040	Brace Sub-Assy, Lower Arm Bracket, Rh	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
51505-26091	Support Sub-Assy, Upper Control Arm, Rh	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
51505-26092	Support Sub-Assy, Upper Control Arm, Rh	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
51631-26060	Stopper, Front Suspention Rebound, Rh	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
51969-26030	Reinforcement, Transport Hook Mounting, Rear Rh	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
51974-26011	Nut, Transport Hook, Rh	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
53036-26010	Reinforcement, Front Cross To Front Panel Member, Lh	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
53036-26020	Reinforcement, Front Cross To Front Panel Member, Lh	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
53701-26100	Apron Sub-Assy, Front Fender, Rh	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
53701-26150	Apron Sub-Assy, Front Fender, Rh	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
53707-26080	Apron Sub-Assy, Fender Side, Rh	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
53773-26020	Bracket, Air Cleaner Mounting	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
53885-26071	Seal, Fender Apron Mudguard, Rh	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
55137-26020	Brace, Dash To Frame, Rh	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
57003-26350	Member Sub-Assy, Front Side, Rh	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
57027-26010	Member Sub-Assy, Front Side, Inner Rh	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
57031-26030	Reinforce Sub-Assy, Front Side Member, No.2 Rh	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
57041-26030	Member Sub-Assy, Center Floor Side, Rh	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
57045-26240	Plate Sub-Assy, Floor Side Rail, Rh	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
57045-26290	Plate Sub-Assy, Floor Side Rail, Rh	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
57045-26300	Plate Sub-Assy, Floor Side Rail, Rh	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
57045-26310	Plate Sub-Assy, Floor Side Rail, Rh	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
57045-26320	Plate Sub-Assy, Floor Side Rail, Rh	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
57053-26030	Reinforcement Sub-Assy, Front Floor Cross Member, Rh	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
57071-26260	Hanger Sub-Assy, Rear Spring, Front A Rh	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
57071-26330	Hanger Sub-Assy, Rear Spring, Front A Rh	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
57104-26191	Member Sub-Assy, Front Cross	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
57111-26170	Member, Front Side, Rh	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
57115-26030	Plate, Front Side Member, No.1 Rh	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
57117-26040	Reinforcement, Front Bumper Mounting, Rh	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
57119-26030	Plate, Front Side Member, Front Rh	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
57127-26100	Plate, Front Suspension Member Mounting, Rh	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
57145-26051	Plate, Front Side Member, Center Rh	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
57147-26020	Plate, Front Side Member, Rear Rh	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
57151-26150	Reinforcement, Front Side Member, No.1 Rh	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
57153-26090	Reinforcement, Front Side Member, No.2 Rh	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
57155-26050	Reinforcement, Front Side Member, No.3, Rh	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
57165-26020	Reinforcement, Front Crossmember, No.2 Rh	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
57167-26020	Gusset, Front Crossmember Side, Rh	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
57171-26010	Plate, Front Side Member To Floor, Rh	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
57181-26030	Extension, Front Crossmember, Front Rh	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
57183-26040	Extension, Front Crossmember, Rr Rh	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
57188-26030	Reinforcement, Front Side Member Extention, Rh	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
57191-26010	Plate, Front Side Member, Outer Rear Rh	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
57417-26040	Reinforcement, Floor Side, Inner Rh	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
57511-26020	Reinforcement, Front Floor, Rh	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
57601-26032	Member Sub-Assy, Rear Floor Side, Rh	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
57603-26090	Reinforcement, Rear Floor Cross, No.1 Rh	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
58037-26010	Reinforcement, Floor Side, Inner Rh	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
58127-26050	Reinforce, Front Cross To Front Panel Member, Rh	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
58258-26010	Plate, Water Guard, No.1	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
90467-08011	Clip(For Headlamp Cover Seal)	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
90467-08011-83	Clip(For Headlamp Cover Seal)	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
90467-08011-TH	CLIP	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
91553-A0816	BOLT FLANGE	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
91553-A1018	New Genuine Part	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
91553-C1025	BOLT FLANGE	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
91554-C1025	BOLT FLANGE	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
91661-60825	New Genuine Part	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
94223-80800	New Genuine Part	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
94223-81000	New Genuine Part	Front Floor Panel & Front Floor Member ([12.2013 - ] RH (1312- )KDH20#,LH20#,TRH20# ; (1312- )KDH2 13,223..4FC..GEN)
