Search › Model › KDH200

KDH200

Toyota HIACE · 2004 · 3,778 parts · 211 categories

3,778 items

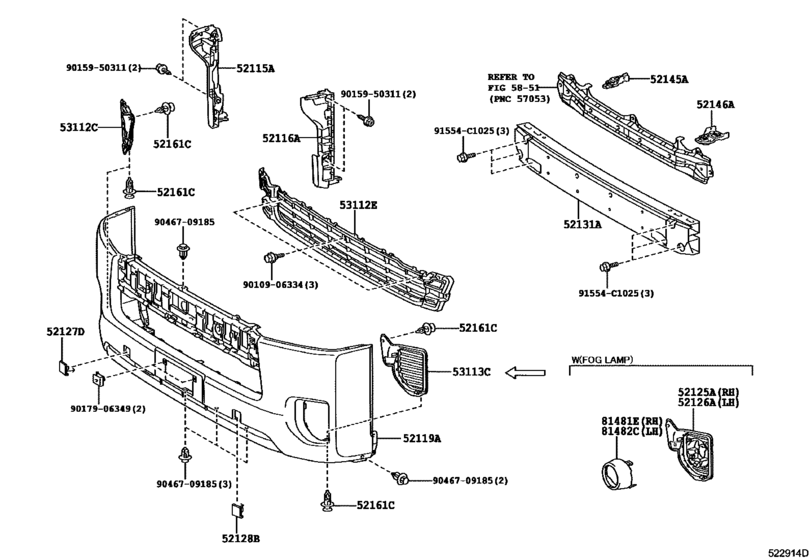

Front Bumper & Bumper Stay ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#) 35

#	OEM	Part name
52115	52115-26150	Support, Front Bumper Side, Rh
52115	52115-26170	Support, Front Bumper Side, Rh
52115	52115-26210	SUPPORT, FR BUMPER
52115	52115-26160	Support, Front Bumper Side, Rh
52115	52115-26180	Support, Front Bumper Side, Rh
52115	52115-26220	SUPPORT FR BUMPER
52116	52116-26150	Support, Front Bumper Side, Lh
52116	52116-26170	Support, Front Bumper Side, Lh
52116	52116-26210	SUPPORT FR BUMPER
52116	52116-26160	Support, Front Bumper Side, Lh
52116	52116-26220	SUPPORT FR BUMPER
52116	52116-26180	Support, Front Bumper Side, Lh
52119	52119-26650	Cover, Front Bumper
52119	52119-26651	COVER, FR BUMPER
52127	52127-26120	Cover, Front Bumper Hole, Rh
52127	52127-26200-A0	Cover, Front Bumper Hole, Rh
52127	52127-26200-B0	Cover, Front Bumper Hole, Rh
52127	52127-26200-D0	Cover, Front Bumper Hole, Rh
52127	52127-26200-J0	Cover, Front Bumper Hole, Rh
52131	52131-26020	Reinforcement, Front Bumper
52131	52131-26021	Reinforcement, Front Bumper
52145	52145-26090	Stay, Front Bumper, No.2 Rh
52146	52146-26090	Stay, Front Bumper, No.2 Lh
52161	52161-16010	Clip
52161	52161-0K040	Clip
52161	52161-02020	Clip
53112	53112-26060	Grille, Radiator, Lower Rh
53112	53112-26070	Grille, Radiator, Lower No.1
53113	53113-26060	Grille, Radiator, Lower Lh
91554	91554-C1025	BOLT FLANGE
9010906334	90109-06334	BOLT
9015950311	90159-50311	SCREW
9015950311	90159-A0034	SCREW WWASHER
9017906349	90179-06349	NUT
9046709185	90467-09185	CLIPS

OEM	Part name	Category
52115-26150	Support, Front Bumper Side, Rh	Front Bumper & Bumper Stay ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#)
52115-26160	Support, Front Bumper Side, Rh	Front Bumper & Bumper Stay ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#)
52115-26170	Support, Front Bumper Side, Rh	Front Bumper & Bumper Stay ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#)
52115-26180	Support, Front Bumper Side, Rh	Front Bumper & Bumper Stay ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#)
52115-26210	SUPPORT, FR BUMPER	Front Bumper & Bumper Stay ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#)
52115-26220	SUPPORT FR BUMPER	Front Bumper & Bumper Stay ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#)
52116-26150	Support, Front Bumper Side, Lh	Front Bumper & Bumper Stay ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#)
52116-26160	Support, Front Bumper Side, Lh	Front Bumper & Bumper Stay ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#)
52116-26170	Support, Front Bumper Side, Lh	Front Bumper & Bumper Stay ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#)
52116-26180	Support, Front Bumper Side, Lh	Front Bumper & Bumper Stay ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#)
52116-26210	SUPPORT FR BUMPER	Front Bumper & Bumper Stay ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#)
52116-26220	SUPPORT FR BUMPER	Front Bumper & Bumper Stay ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#)
52119-26650	Cover, Front Bumper	Front Bumper & Bumper Stay ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#)
52119-26651	COVER, FR BUMPER	Front Bumper & Bumper Stay ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#)
52127-26120	Cover, Front Bumper Hole, Rh	Front Bumper & Bumper Stay ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#)
52127-26200-A0	Cover, Front Bumper Hole, Rh	Front Bumper & Bumper Stay ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#)
52127-26200-B0	Cover, Front Bumper Hole, Rh	Front Bumper & Bumper Stay ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#)
52127-26200-D0	Cover, Front Bumper Hole, Rh	Front Bumper & Bumper Stay ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#)
52127-26200-J0	Cover, Front Bumper Hole, Rh	Front Bumper & Bumper Stay ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#)
52131-26020	Reinforcement, Front Bumper	Front Bumper & Bumper Stay ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#)
52131-26021	Reinforcement, Front Bumper	Front Bumper & Bumper Stay ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#)
52145-26090	Stay, Front Bumper, No.2 Rh	Front Bumper & Bumper Stay ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#)
52146-26090	Stay, Front Bumper, No.2 Lh	Front Bumper & Bumper Stay ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#)
52161-02020	Clip	Front Bumper & Bumper Stay ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#)
52161-0K040	Clip	Front Bumper & Bumper Stay ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#)
52161-16010	Clip	Front Bumper & Bumper Stay ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#)
53112-26060	Grille, Radiator, Lower Rh	Front Bumper & Bumper Stay ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#)
53112-26070	Grille, Radiator, Lower No.1	Front Bumper & Bumper Stay ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#)
53113-26060	Grille, Radiator, Lower Lh	Front Bumper & Bumper Stay ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#)
90109-06334	BOLT	Front Bumper & Bumper Stay ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#)
90159-50311	SCREW	Front Bumper & Bumper Stay ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#)
90159-A0034	SCREW WWASHER	Front Bumper & Bumper Stay ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#)
90179-06349	NUT	Front Bumper & Bumper Stay ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#)
90467-09185	CLIPS	Front Bumper & Bumper Stay ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#)
91554-C1025	BOLT FLANGE	Front Bumper & Bumper Stay ([12.2013 - ] (1312- )GDH201,KDH20#,LH20#,TRH20#)
