KDH200

Toyota HIACE · 2004 · 3,778 parts · 211 categories
KDH200 ×

← Back to categories

3,778 items

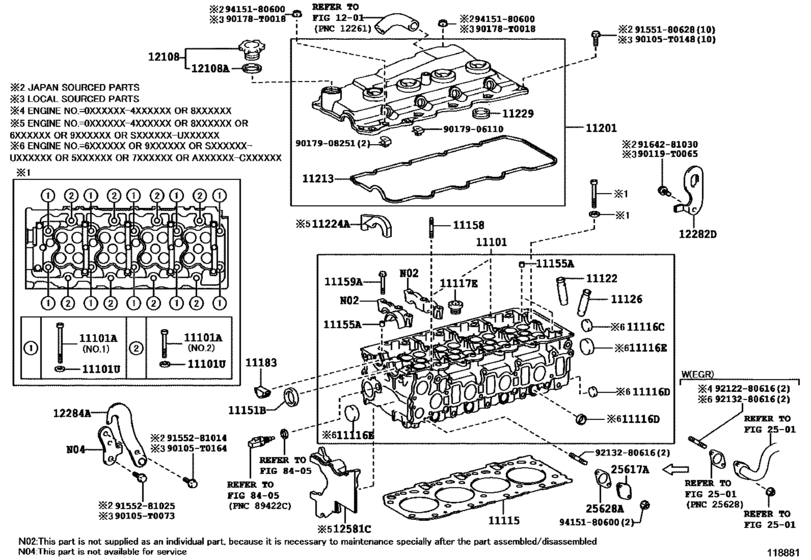

Cylinder Head ([12.2013 - ] EXCEPT EURO 5 REGULATION (1312- )1KDFTV..KDH201,203,213..SG..06S,11S,1 3S,15S ; (1312- )1KDFTV,2KDFTV.. KDH200,202,212,22 #..ARL,GCC,GEN,MA,SA,TH) 57
#OEMPart name
11101 11101-0L051 Head Sub-Assy, Cylinder
11101 11101-30071 Head Sub-Assy, Cylinder
11101 90910-T2005 Bolt(For Cylinder Head Set)
11101 90910-T2006 Bolt(For Cylinder Head Set)
11101 90560-T0005 Spacer(For Cylinder Head Set Bolt)
11101 90910-02145 Bolt(For Cylinder Head Set)
11101 90910-02146 Bolt(For Cylinder Head Set)
11101 90560-13023 Spacer(For Cylinder Head Set Bolt)
11115 11115-0L011-A0 Gasket, Cylinder Head
11115 11115-0L011-B0 Gasket, Cylinder Head
11115 11115-0L011-C0 Gasket, Cylinder Head
11115 11115-0L011-D0 Gasket, Cylinder Head
11115 11115-0L011-E0 Gasket, Cylinder Head
11115 11115-30041-A0 Gasket, Cylinder Head
11115 11115-30041-B0 Gasket, Cylinder Head
11115 11115-30041-C0 Gasket, Cylinder Head
11115 11115-30041-D0 Gasket, Cylinder Head
11115 11115-30041-E0 Gasket, Cylinder Head
11116 90331-T0004 Plug, Tight, No.3
11116 90331-T0003 Plug, Tight, No.4 - TIGHT, NO.5(FOR CYLINDER BLOCK)
11116 90331-T0005 Plug, Tight, No.5 - TIGHT, NO.2(FOR CYLINDER BLOCK)
11117 90341-14015 Plug, W/head Straight Screw, No.1
11117 90341-T0005 Plug, W/head Straight Screw, No.1
11122 11122-30020 Bush, Valve Guide (OS 0.05)
11122 11123-30020 Bush, Valve Guide
11151 90080-31097 Oil Seal(For Camshaft Setting)
11151 90311-32019 Seal, Oil(For Camshaft Setting)
11155 90253-10004 Pin, Ring W/head
11155 90253-T0001 Pin, Ring W/head
11158 90116-06149 Bolt, Stud(For Head To Cylinder Head Cover)
11159 90119-07011 Bolt(For Head To Camshaft Bearing Cap)
11183 11183-0L010 Plug, Semicircular
11183 11183-67020 Plug, Semicircular
11201 11210-30082 Cover Sub-Assy, Cylinder Head
11201 11210-30083 Cover Sub-Assy, Cylinder Head
11213 11213-30021 Gasket, Cylinder Head Cover
11229 23682-30020 Gasket, Cylinder Head Cover, No.3
12108 12180-55010 Cap Sub-Assy, Oil Filler
12108 90430-37004 Gasket(For Oil Filler Cap)
12282 12282-67030 Hanger, Engine, No.2
12284 12284-30020 Hanger, Engine, No.1 Upper
25617 25617-30010 Plate, Egr Hole Cover, No.2
25628 25628-30020 Gasket, Egr Inlet
90105 90105-T0073 New Genuine Part
90105 90105-T0148 New Genuine Part
90105 90105-T0164 New Genuine Part
90119 90119-T0065 New Genuine Part
90178 90178-T0018 NUT FLANGE
9017906110 90179-06110 New Genuine Part
9017908251 90179-08251 New Genuine Part
9155180628 91551-80628 BOLT FLANGE
9155281014 91552-81014 New Genuine Part
9155281025 91552-81025 BOLT TLANGE
9164281030 91642-81030 Bolt
9212280616 92122-80616 Bolt, Stud(For Head To Cylinder Head Cover)
9213280616 92132-80616 BOLTSTUD
9415180600 94151-80600 Nut, Cap(For Cylinder Head Cover)
