Search › Model › KCH40

KCH40

Toyota HIACE-REGIUS · 1997 · 5,039 parts · 235 categories
KCH40 ×

← Back to categories

5,039 items

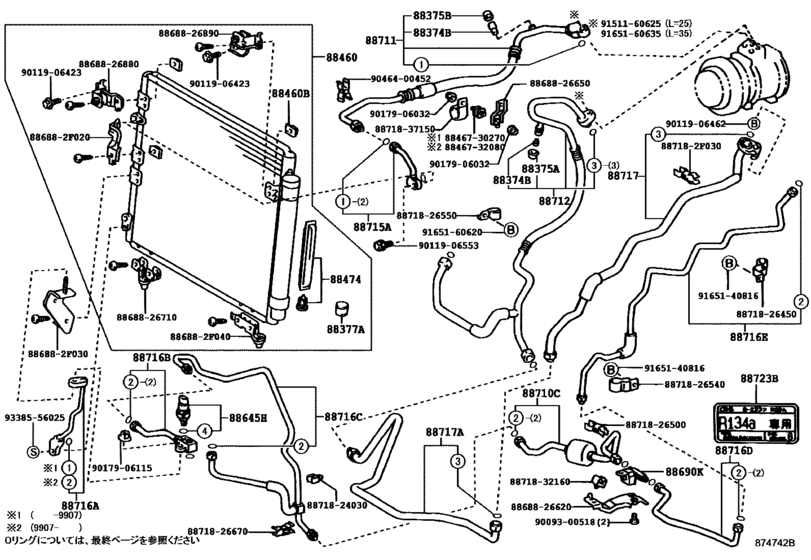

Heating & Air Conditioning - Cooler Piping ([04.1998 - ] ﾌﾛﾝﾄ ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) (9804- )KCH4#) 62
#OEMPart name
88374 88374-30010 Valve, Service, No.1
88375 88375-30290 Cap, Service Valve (For Cooler Pipe)
88375 88375-30280 Cap, Service Valve (For Cooler Pipe)
88377 88377-22010 Filter, Refrigerant
88460 88460-26501 Condenser Assy, Cooler
88460 88463-35120 Bracket, Cooler Condenser, No.1
88474 88474-22010 Dryer, Cooler
88474 88474-47010 Dryer, Cooler
88645 88645-26020 Switch, Pressure No.1
88645 88645-48020 Switch, Pressure No.1
88690 88690-26150 Valve Assy, Magnet
88710 88710-26700 Tube Assy, Air Conditioner
88711 88711-26781 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-26691 Hose, Cooler Refrigerant Suction, No.1
88715 88715-26320 Pipe, Cooler Refrigerant Discharge, A
88716 88716-2F471 Pipe, Cooler Refrigerant Liquid, A
88716 88716-2F351 Pipe, Cooler Refrigerant Liquid, B
88716 88716-2F300 Pipe, Cooler Refrigerant Liquid, C
88716 88716-2F260 Pipe, Cooler Refrigerant Liquid, D
88716 88716-2F320 Pipe, Cooler Refrigerant Liquid, D
88716 88716-2F280 Pipe, Cooler Refrigerant Liquid, E
88717 88717-26820 Pipe, Cooler Refrigerant Suction, No.1
88717 88717-26800 Pipe, Cooler Refrigerant Suction, A
88723 88723-22060 Label, Cooler Service Caution
88723 88733-30050 Label, Cooler Service Caution
88723 88733-37050 Label, Cooler Service Caution
88723 88733-50010 Label, Cooler Service Caution
88723 88733-40020 Label, Cooler Service Caution
886882 88688-2F020 Bracket, Cooler Diaphragm
886882 88688-2F030 Bracket, Cooler Diaphragm
886882 88688-2F040 Bracket, Cooler Diaphragm
887182 88718-2F030 Pipe, Cooler Refrigerant Suction, No.2
8846730270 88467-30270 Cushion, Cooler Condenser, No.1
8846732080 88467-32080 Cushion, Cooler Condenser, No.1
8868826620 88688-26620 Bracket, Cooler Diaphragm
8868826650 88688-26650 Bracket, Cooler Diaphragm
8868826710 88688-26710 Bracket, Cooler Diaphragm
8868826880 88688-26880 Bracket, Cooler Diaphragm
8868826890 88688-26890 Bracket, Cooler Diaphragm
8871824030 88718-24030 Clamp(For Cooler Refrigerant Pipe), No.2
8871826450 88718-26450 Pipe, Cooler Refrigerant Suction, No.2
8871826500 88718-26500 Pipe, Cooler Refrigerant Suction, No.2
8871826540 88718-26540 Pipe, Cooler Refrigerant Suction, No.2
8871826550 88718-26550 Pipe, Cooler Refrigerant Suction, No.2
8871826670 88718-26670 Pipe, Cooler Refrigerant Suction, No.2
8871832160 88718-32160 Pipe, Cooler Refrigerant Suction, No.2
8871837150 88718-37150 Pipe, Cooler Refrigerant Suction, No.2
9009300518 90093-00518 New Genuine Part
9011906423 90119-06423 BOLT WWASHER
9011906462 90119-06462 New Genuine Part
9011906553 90119-06553 New Genuine Part
9011906553 91651-F0625 BOLT WWASHER
9017906032 90179-06032 Direct
9017906032 90179-06274 Nut
9017906115 90179-06115 Nut (For Rear Wiper Arm Setting)
9046400452 90464-00452 New Genuine Part
9151160625 91511-60625 Bolt(For Cylinder Head Cover)
9151160625 91511-J0625 Bolt(For Cylinder Head Cover)
9165140816 91651-40816 BOLT
9165160620 91651-60620 BOLTWWASHER
9165160635 91651-60635 BOLT
9338556025 93385-56025 New Genuine Part
Source
Public OEM parts-catalog data
Variants
1 / 8
Category
235
Collected
2026-08-03
