KCH16

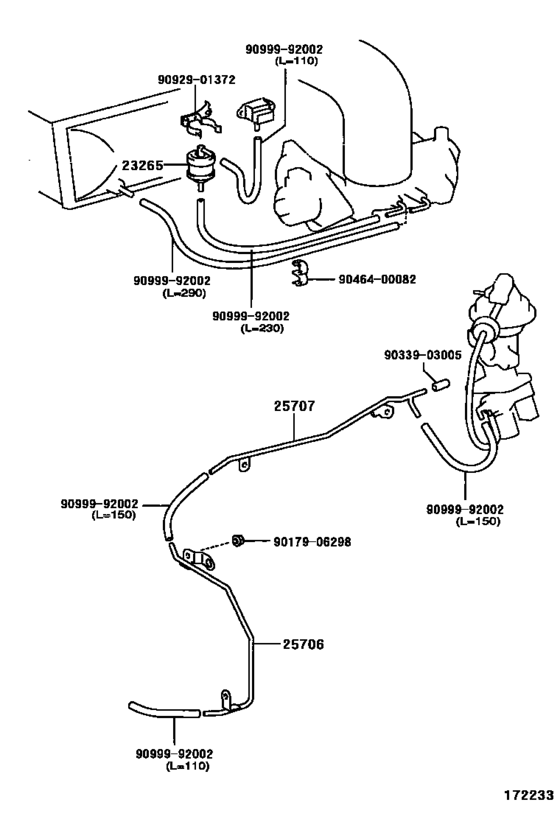

Vacuum Piping ([07.1999 - ] (9907- )1KZTE) 8
| # | OEM | Part name |
|---|---|---|
| 23265 | 90917-11038 | Filter, Gas, No.1 |
| 25706 | 25706-67020 | Pipe Sub-Assy, Vacuum Transmitting, No.1 |
| 25707 | 25707-67011 | Pipe Sub-Assy, Vacuum Transmitting, No.2 |
| 9017906298 | 90179-06298 | NUT |
| 9033903005 | 90339-03005 | Plug, No.1 |
| 9046400082 | 90464-00082 | Clamp(For Resistive Cord) |
| 9092901372 | 90929-01372 | Bracket |
| 9099992002 | 90999-92002 | Air Hose (300 mm) |
| OEM | Part name | Category |
|---|---|---|
| 25706-67020 | Pipe Sub-Assy, Vacuum Transmitting, No.1 | Vacuum Piping ([07.1999 - ] (9907- )1KZTE) |
| 25707-67011 | Pipe Sub-Assy, Vacuum Transmitting, No.2 | Vacuum Piping ([07.1999 - ] (9907- )1KZTE) |
| 90179-06298 | NUT | Vacuum Piping ([07.1999 - ] (9907- )1KZTE) |
| 90339-03005 | Plug, No.1 | Vacuum Piping ([07.1999 - ] (9907- )1KZTE) |
| 90464-00082 | Clamp(For Resistive Cord) | Vacuum Piping ([07.1999 - ] (9907- )1KZTE) |
| 90917-11038 | Filter, Gas, No.1 | Vacuum Piping ([07.1999 - ] (9907- )1KZTE) |
| 90929-01372 | Bracket | Vacuum Piping ([07.1999 - ] (9907- )1KZTE) |
| 90999-92002 | Air Hose (300 mm) | Vacuum Piping ([07.1999 - ] (9907- )1KZTE) |
