KCH16

Toyota GRANVIA-GRAND-HIACE · 1995 · 5,560 parts · 230 categories
KCH16 ×

← Back to categories

5,560 items

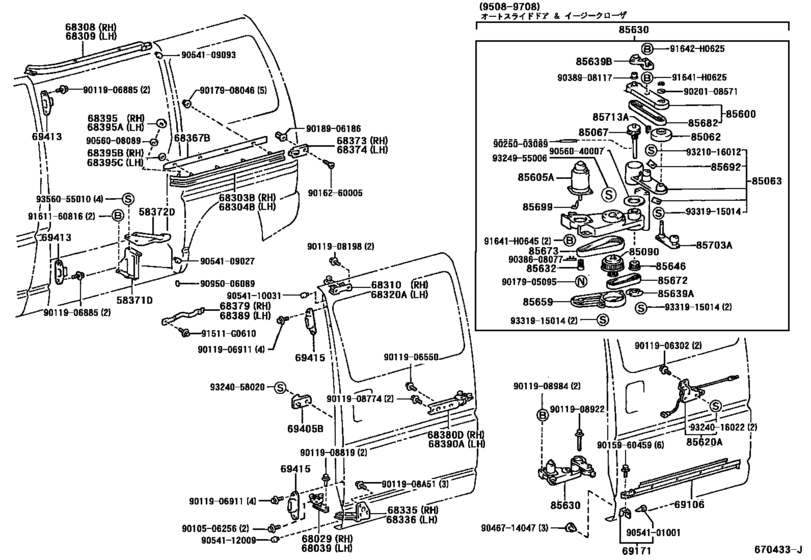

Slide Roller & Rail ([08.1995 - ] (9508- )) 105
#OEMPart name
58371 58371-26020 Cover, Rear Floor Step, No.1
58372 58372-26010 Cover, Rear Floor Step, No.2
68029 68029-26060 Base Sub-Assy, Slide Door Lower Roller
68039 68039-26020 Base Sub-Assy, Slide Door Lower Roller, Lh
68039 68039-26040 Base Sub-Assy, Slide Door Lower Roller, Lh
68303 68303-26040-A0 Rail Sub-Assy, Slide Door, Center Rh
68303 68303-26040-A1 Rail Sub-Assy, Slide Door, Center Rh
68303 68303-26040-B0 Rail Sub-Assy, Slide Door, Center Rh
68303 68303-26040-B2 Rail Sub-Assy, Slide Door, Center Rh
68303 68303-26040-B1 Rail Sub-Assy, Slide Door, Center Rh
68303 68303-26040-C0 Rail Sub-Assy, Slide Door, Center Rh
68303 68303-26040-D0 Rail Sub-Assy, Slide Door, Center Rh
68304 68304-26020-A0 Rail Sub-Assy, Slide Door, Center Lh
68304 68304-26020-A1 Rail Sub-Assy, Slide Door, Center Lh
68304 68304-26020-B0 Rail Sub-Assy, Slide Door, Center Lh
68304 68304-26020-B3 Rail Sub-Assy, Slide Door, Center Lh
68304 68304-26020-B2 Rail Sub-Assy, Slide Door, Center Lh
68304 68304-26020-C0 Rail Sub-Assy, Slide Door, Center Lh
68304 68304-26020-D0 Rail Sub-Assy, Slide Door, Center Lh
68308 68308-26020 Rail Sub-Assy, Slide Door, Upper Rh
68309 68309-26020 Rail Sub-Assy, Slide Door, Upper Lh
68310 68310-26020 Roller Assy, Slide Door, Upper
68320 68320-26010 Roller Assy, Slide Door, Upper, Lh
68335 68335-26020 Pad, Slide Door Upper Rail
68336 68336-26030 Arm, Slide Door Lower Roller, Lh
68367 68367-26020 Pad, Slide Door Center Rail
68373 68373-26030-A0 Moulding, Slide Rail End, Rh
68373 68373-26030-A1 Moulding, Slide Rail End, Rh
68373 68373-26030-B0 Moulding, Slide Rail End, Rh
68373 68373-26030-B2 Moulding, Slide Rail End, Rh
68373 68373-26030-B1 Moulding, Slide Rail End, Rh
68373 68373-26030-C0 Moulding, Slide Rail End, Rh
68373 68373-26030-D0 Moulding, Slide Rail End, Rh
68374 68374-26020-A0 Moulding, Slide Rail End, Lh
68374 68374-26020-A2 Moulding, Slide Rail End, Lh
68374 68374-26020-B0 Moulding, Slide Rail End, Lh
68374 68374-26020-B3 Moulding, Slide Rail End, Lh
68374 68374-26020-B2 Moulding, Slide Rail End, Lh
68374 68374-26020-C0 Moulding, Slide Rail End, Lh
68374 68374-26020-D0 Moulding, Slide Rail End, Lh
68379 68379-26020 Spring, Slide Door Catch, Rh
68380 68380-26010 Hinge Assy, Slide Door, Center Rh
68389 68389-26050 Spring, Slide Door Catch, Lh
68390 68390-26020 Hinge Assy, Slide Door, Center Lh
68395 68395-26010 Packing, Slide Door Center Rail
68395 68395-95J00 Packing, Slide Door Center Rail
69405 69405-26030-E0 Stop Sub-Assy, Slide Door Open
69405 69405-26050 Stop Sub-Assy, Slide Door Open
69405 69405-26040-E0 Stop Sub-Assy, Slide Door Open
69405 69405-26040-B1 Stop Sub-Assy, Slide Door Open
69413 69416-26010 Stop, Slide Door Down Male
69415 69415-26010 Stopper, Slide Door Down Female
85090 85090-26030 Clutch Assy, Slide Door Motor
85605 85605-26030 Motor Sub-Assy, Slide Door
85620 85620-26040 Motor Assy, Slide Door Lock Release, Lh
85630 85006-26012 Motor Assy, Slide Door
85646 85646-26020 Pulley, Main
85659 85064-26020 Cover, Belt
85672 85672-26020 Belt, Clutch To Main Pulley
85673 85673-26030 Belt, Slide Door Motor
85699 85699-26020 Bracket, Slide Door Motor Connector
91511 91511-G0610 New Genuine Part
91511 91621-G0612 New Genuine Part
91641 91641-H0625 BOLT WWASHER
91641 91641-H0645 New Genuine Part
91642 91642-H0625 New Genuine Part
9011908 90119-08A51 New Genuine Part
9010506256 90105-06256 BOLT WASHER BASED
9011906302 90119-06302 New Genuine Part
9011906302 91651-60612 BOLT
9011906550 90119-06550 New Genuine Part
9011906885 90119-06885 Bolt, Radiator Tank Pipe
9011906911 90119-06911 BOLT WWASHER
9011908198 90119-08198 BOLT
9011908774 90119-08774 New Genuine Part
9011908819 90119-08819 New Genuine Part
9011908922 90119-08922 New Genuine Part
9011908984 90119-08984 New Genuine Part
9015960459 90159-60459 New Genuine Part
9016260005 90162-60005 SCREW
9017905095 90179-05095 NUT
9017905095 90179-05004 NUT
9017908046 90179-08046 New Genuine Part
9018906186 90189-06186 Grommet
9020108571 90201-08571 New Genuine Part
9025003089 90250-03089 New Genuine Part
9038608077 90386-08077 Bush (For Throttle Cam Shaft)
9038908117 90389-08117 New Genuine Part
9046714047 90467-14047 New Genuine Part
9054101001 90541-01001 Cushion(For Parking Brake Pedal)
9054109027 90541-09027 Cushion, Slide Door Stop
9054109093 90541-09093 New Genuine Part
9054110031 90541-10031 New Genuine Part
9054112009 90541-12009 Cushion, Front Door Panel
9056008089 90560-08089 New Genuine Part
9056040007 90560-40007 New Genuine Part
9095006089 90950-06089 Protector, Rear Body, No.1
9161160816 91611-60816 Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816 91611-B0816 Bolt
9321016012 93210-16012 New Genuine Part
9324016022 93240-16022 New Genuine Part
9324058020 93240-58020 New Genuine Part
9324955006 93249-55006 New Genuine Part
9331915014 93319-15014 Screw, Cover Set, No.1
9356055010 93560-55010 Screw(For Mat Set Plate)
