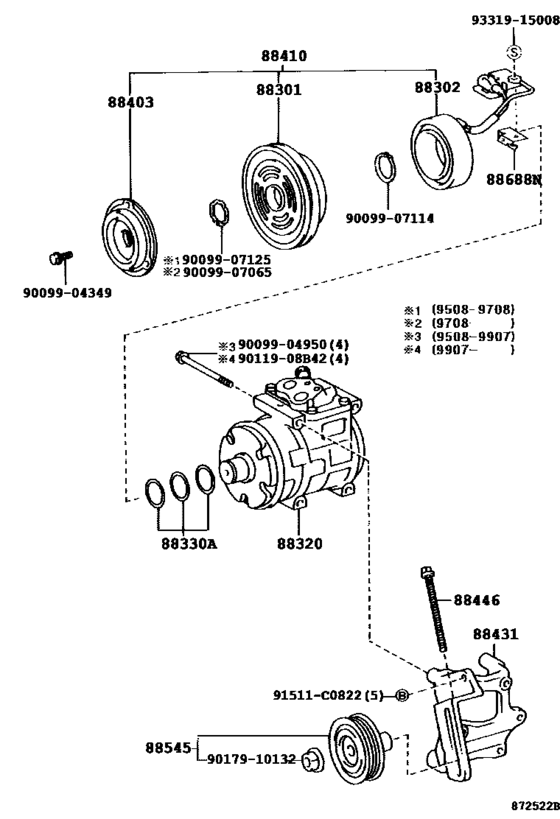

| 88320-26660 |
Compressor Assy, Cooler |
Heating & Air Conditioning - Compressor ([08.1995 - 05.2002] (9508-0205)KCH1#) |
| 88335-14020 |
Washer |
Heating & Air Conditioning - Compressor ([08.1995 - 05.2002] (9508-0205)KCH1#) |
| 88403-16011 |
Hub Sub-Assy, Magnet Clutch |
Heating & Air Conditioning - Compressor ([08.1995 - 05.2002] (9508-0205)KCH1#) |
| 88410-26210 |
Clutch Assy, Magnet |
Heating & Air Conditioning - Compressor ([08.1995 - 05.2002] (9508-0205)KCH1#) |
| 88411-02030 |
Stator Sub-Assy, Magnet Clutch |
Heating & Air Conditioning - Compressor ([08.1995 - 05.2002] (9508-0205)KCH1#) |
| 88411-2A030 |
Stator Sub-Assy, Magnet Clutch |
Heating & Air Conditioning - Compressor ([08.1995 - 05.2002] (9508-0205)KCH1#) |
| 88412-26070 |
Rotor Sub-Assy, Magnet Clutch |
Heating & Air Conditioning - Compressor ([08.1995 - 05.2002] (9508-0205)KCH1#) |
| 88431-26370 |
Bracket, Compressor Mounting, No.1 |
Heating & Air Conditioning - Compressor ([08.1995 - 05.2002] (9508-0205)KCH1#) |
| 88440-60050 |
Pulley Assy, Idle |
Heating & Air Conditioning - Compressor ([08.1995 - 05.2002] (9508-0205)KCH1#) |
| 88446-60040 |
Bolt, Idle Pulley |
Heating & Air Conditioning - Compressor ([08.1995 - 05.2002] (9508-0205)KCH1#) |
| 88688-2D770 |
Bracket, Cooler Compressor |
Heating & Air Conditioning - Compressor ([08.1995 - 05.2002] (9508-0205)KCH1#) |
| 90099-04349 |
Bolt, Magnet Clutch Setting |
Heating & Air Conditioning - Compressor ([08.1995 - 05.2002] (9508-0205)KCH1#) |
| 90099-04950 |
BOLT |
Heating & Air Conditioning - Compressor ([08.1995 - 05.2002] (9508-0205)KCH1#) |
| 90099-07065 |
SNAP RING |
Heating & Air Conditioning - Compressor ([08.1995 - 05.2002] (9508-0205)KCH1#) |
| 90099-07114 |
Ring, Snap (For Magnet Clutch) |
Heating & Air Conditioning - Compressor ([08.1995 - 05.2002] (9508-0205)KCH1#) |
| 90099-07125 |
Ring, Snap |
Heating & Air Conditioning - Compressor ([08.1995 - 05.2002] (9508-0205)KCH1#) |
| 90119-08B42 |
BOLT WWASHER |
Heating & Air Conditioning - Compressor ([08.1995 - 05.2002] (9508-0205)KCH1#) |
| 90179-10132 |
Nut |
Heating & Air Conditioning - Compressor ([08.1995 - 05.2002] (9508-0205)KCH1#) |
| 91511-C0822 |
New Genuine Part |
Heating & Air Conditioning - Compressor ([08.1995 - 05.2002] (9508-0205)KCH1#) |
| 93319-15008 |
SCREW |
Heating & Air Conditioning - Compressor ([08.1995 - 05.2002] (9508-0205)KCH1#) |
