Search › Model › KCH16

KCH16

Toyota GRANVIA-GRAND-HIACE · 1995 · 5,560 parts · 230 categories

5,560 items

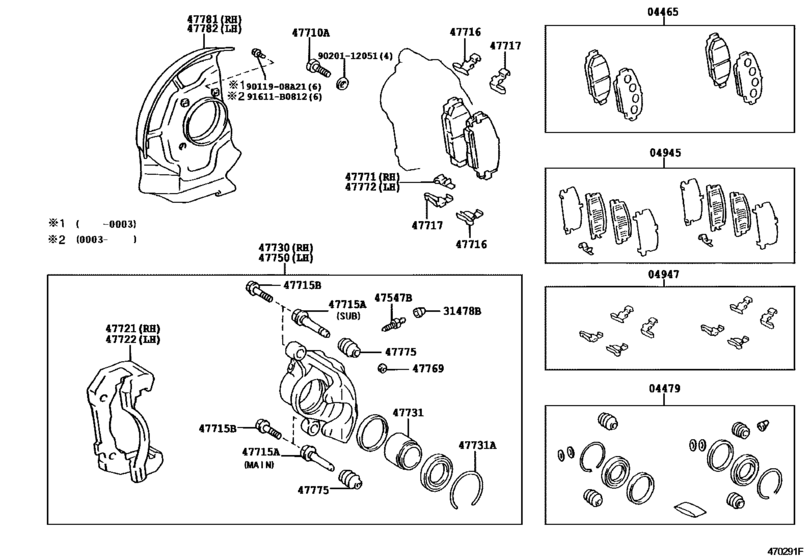

Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH16,VCH16,28) 37

#	OEM	Part name
4465	04465-26300	Pad Kit, Disc Brake, Front
4465	04465-26370	Pad Kit, Disc Brake, Front
4479	04479-26061	Cylinder Kit, Disc Brake, Front
4479	04478-26030	Cylinder Kit, Disc Brake, Front
4479	04479-26060	Cylinder Kit, Disc Brake, Front
4945	04945-26150	Shim Kit, Anti Squeal, Front
4945	04945-26151	Shim Kit, Anti Squeal, Front
4947	04947-26040	Fitting Kit, Disc Brake, Front
31478	31478-30010	Bleeder Plug Cap
47547	47547-12010	Plug, Bleeder(For Release Cylinder)
47710	90101-12149	Bolt, Hexagon(For Front Disc Brake Caliper)
47715	47715-50010	Pin, Disc Brake Cylinder Slide
47715	47715-50030	Pin, Disc Brake Cylinder Slide
47715	90105-08164	Bolt(For Front Disc Brake Cylinder Slide)
47716	47716-26050	Plate, Pad Support, No.1(For Front Disc Brake)
47717	47717-26020	Plate, Pad Support, No.2(For Front Disc Brake)
47721	47721-26102	Mounting, Front Disc Brake Cylinder, Rh
47721	47721-26103	Mounting, Front Disc Brake Cylinder, Rh
47722	47722-26032	Mounting, Front Disc Brake Cylinder, Lh
47722	47722-26033	Mounting, Front Disc Brake Cylinder, Lh
47730	47730-26132	Cylinder Assy, Front Disc Brake, Rh
47731	47731-25010	Piston, Front Disc Brake
47731	90522-76001	Ring, Set(For Front Disc Brake Piston)
47750	47750-26132	Cylinder Assy, Disc Brake, Lh
47769	47769-50010	Bush, Cylinder Slide, No.1(For Front Disc Brake)
47771	47771-26030	Plate, Pad Wear Indicator, No.1
47772	47772-26030	Plate, Pad Wear Indicator, No.2
47775	47775-30070	Boot, Bush Dust(For Front Disc Brake)
47775	47775-50010	Boot, Bush Dust(For Front Disc Brake)
47781	47781-26121	Cover, Disc Brake Dust, Front Rh
47781	47781-26120	Cover, Disc Brake Dust, Front Rh
47782	47782-26121	Cover, Disc Brake Dust, Front Lh
47782	47782-26120	Cover, Disc Brake Dust, Front Lh
91611	91611-B0812	Bolt
9011908	90119-08A21	Bolt
9011908	91611-60814	Bolt
9020112051	90201-12051	WASHER

OEM	Part name	Category
04465-26300	Pad Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH16,VCH16,28)
04465-26370	Pad Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH16,VCH16,28)
04478-26030	Cylinder Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH16,VCH16,28)
04479-26060	Cylinder Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH16,VCH16,28)
04479-26061	Cylinder Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH16,VCH16,28)
04945-26150	Shim Kit, Anti Squeal, Front	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH16,VCH16,28)
04945-26151	Shim Kit, Anti Squeal, Front	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH16,VCH16,28)
04947-26040	Fitting Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH16,VCH16,28)
31478-30010	Bleeder Plug Cap	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH16,VCH16,28)
47547-12010	Plug, Bleeder(For Release Cylinder)	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH16,VCH16,28)
47715-50010	Pin, Disc Brake Cylinder Slide	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH16,VCH16,28)
47715-50030	Pin, Disc Brake Cylinder Slide	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH16,VCH16,28)
47716-26050	Plate, Pad Support, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH16,VCH16,28)
47717-26020	Plate, Pad Support, No.2(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH16,VCH16,28)
47721-26102	Mounting, Front Disc Brake Cylinder, Rh	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH16,VCH16,28)
47721-26103	Mounting, Front Disc Brake Cylinder, Rh	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH16,VCH16,28)
47722-26032	Mounting, Front Disc Brake Cylinder, Lh	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH16,VCH16,28)
47722-26033	Mounting, Front Disc Brake Cylinder, Lh	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH16,VCH16,28)
47730-26132	Cylinder Assy, Front Disc Brake, Rh	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH16,VCH16,28)
47731-25010	Piston, Front Disc Brake	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH16,VCH16,28)
47750-26132	Cylinder Assy, Disc Brake, Lh	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH16,VCH16,28)
47769-50010	Bush, Cylinder Slide, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH16,VCH16,28)
47771-26030	Plate, Pad Wear Indicator, No.1	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH16,VCH16,28)
47772-26030	Plate, Pad Wear Indicator, No.2	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH16,VCH16,28)
47775-30070	Boot, Bush Dust(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH16,VCH16,28)
47775-50010	Boot, Bush Dust(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH16,VCH16,28)
47781-26120	Cover, Disc Brake Dust, Front Rh	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH16,VCH16,28)
47781-26121	Cover, Disc Brake Dust, Front Rh	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH16,VCH16,28)
47782-26120	Cover, Disc Brake Dust, Front Lh	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH16,VCH16,28)
47782-26121	Cover, Disc Brake Dust, Front Lh	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH16,VCH16,28)
90101-12149	Bolt, Hexagon(For Front Disc Brake Caliper)	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH16,VCH16,28)
90105-08164	Bolt(For Front Disc Brake Cylinder Slide)	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH16,VCH16,28)
90119-08A21	Bolt	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH16,VCH16,28)
90201-12051	WASHER	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH16,VCH16,28)
90522-76001	Ring, Set(For Front Disc Brake Piston)	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH16,VCH16,28)
91611-60814	Bolt	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH16,VCH16,28)
91611-B0812	Bolt	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH16,VCH16,28)
