KCH16

Toyota GRANVIA-GRAND-HIACE · 1995 · 5,560 parts · 230 categories

5,560 items

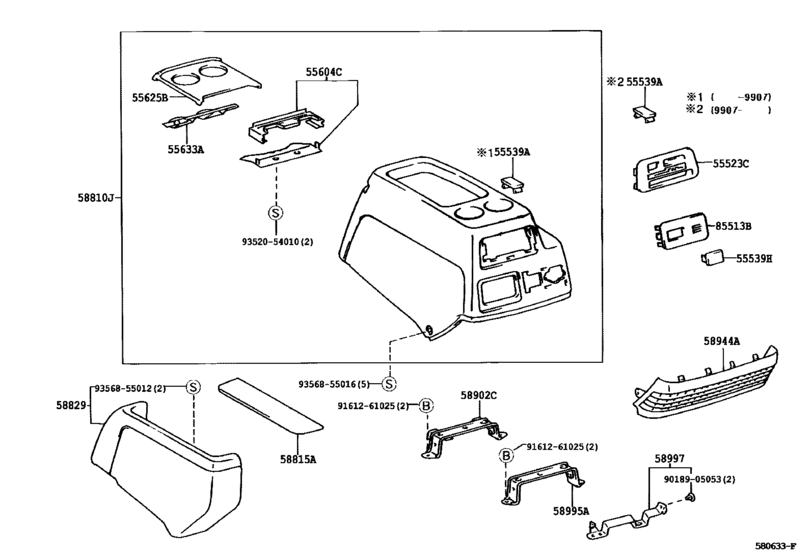

Console Box & Bracket ([08.1997 - ] (9708- )5D) 23

#	OEM	Part name
55523	55523-26050	Cover, Heater Control Opening
55539	55539-32040-E4	Cover, Spare Switch Hole
55539	55539-32010-C0	Cover, Cooler Switch Hole (BLACK)
55539	55539-32010-A0	Cover, Spare Switch Hole
55539	55539-32010-E5	Cover, Spare Switch Hole
55604	55604-26070	Holder Sub-Assy, Console Box Cup
55625	55625-26020-E0	Tray, Instrument Panel Cup Holder
55633	55633-89101	Support, Instrument Panel Cup Holder, No.1
58810	58810-26141-E0	Box Assy, Console
58810	58810-26142-C0	Box Assy, Console
58815	58815-26030	Carpet, Console Box
58829	58806-26010-E0	Pocket, Console Box
58829	58806-26010-B0	Pocket, Console Box
58902	58902-26050	Bracket Sub-Assy, Console Box Mounting
58944	58944-26030-E0	Cover, Console, Rear
58997	58997-26060	Bracket, Console Box Mounting, No.3
85513	85513-26010-E0	Cover, Cigarette Lighter
85513	85513-26020-E0	Cover, Cigarette Lighter
9018905053	90189-05053	New Genuine Part
9161261025	91612-61025	Bolt (For Control Shaft Cover)
9352054010	93520-54010	Screw
9356855012	93568-55012	SCREW
9356855016	93568-55016	Screw

OEM	Part name	Category
55523-26050	Cover, Heater Control Opening	Console Box & Bracket ([08.1997 - ] (9708- )5D)
55539-32010-A0	Cover, Spare Switch Hole	Console Box & Bracket ([08.1997 - ] (9708- )5D)
55539-32010-C0	Cover, Cooler Switch Hole (BLACK)	Console Box & Bracket ([08.1997 - ] (9708- )5D)
55539-32010-E5	Cover, Spare Switch Hole	Console Box & Bracket ([08.1997 - ] (9708- )5D)
55539-32040-E4	Cover, Spare Switch Hole	Console Box & Bracket ([08.1997 - ] (9708- )5D)
55604-26070	Holder Sub-Assy, Console Box Cup	Console Box & Bracket ([08.1997 - ] (9708- )5D)
55625-26020-E0	Tray, Instrument Panel Cup Holder	Console Box & Bracket ([08.1997 - ] (9708- )5D)
55633-89101	Support, Instrument Panel Cup Holder, No.1	Console Box & Bracket ([08.1997 - ] (9708- )5D)
58806-26010-B0	Pocket, Console Box	Console Box & Bracket ([08.1997 - ] (9708- )5D)
58806-26010-E0	Pocket, Console Box	Console Box & Bracket ([08.1997 - ] (9708- )5D)
58810-26141-E0	Box Assy, Console	Console Box & Bracket ([08.1997 - ] (9708- )5D)
58810-26142-C0	Box Assy, Console	Console Box & Bracket ([08.1997 - ] (9708- )5D)
58815-26030	Carpet, Console Box	Console Box & Bracket ([08.1997 - ] (9708- )5D)
58902-26050	Bracket Sub-Assy, Console Box Mounting	Console Box & Bracket ([08.1997 - ] (9708- )5D)
58944-26030-E0	Cover, Console, Rear	Console Box & Bracket ([08.1997 - ] (9708- )5D)
58997-26060	Bracket, Console Box Mounting, No.3	Console Box & Bracket ([08.1997 - ] (9708- )5D)
85513-26010-E0	Cover, Cigarette Lighter	Console Box & Bracket ([08.1997 - ] (9708- )5D)
85513-26020-E0	Cover, Cigarette Lighter	Console Box & Bracket ([08.1997 - ] (9708- )5D)
90189-05053	New Genuine Part	Console Box & Bracket ([08.1997 - ] (9708- )5D)
91612-61025	Bolt (For Control Shaft Cover)	Console Box & Bracket ([08.1997 - ] (9708- )5D)
93520-54010	Screw	Console Box & Bracket ([08.1997 - ] (9708- )5D)
93568-55012	SCREW	Console Box & Bracket ([08.1997 - ] (9708- )5D)
93568-55016	Screw	Console Box & Bracket ([08.1997 - ] (9708- )5D)
