Search › Model › KCH16

KCH16

Toyota GRANVIA-GRAND-HIACE · 1995 · 5,560 parts · 230 categories

5,560 items

Brake Master Cylinder ([08.1997 - ] (9708- )KCH16..QLTD ; (9708- )KCH10..Q,QLT D) 42

#	OEM	Part name

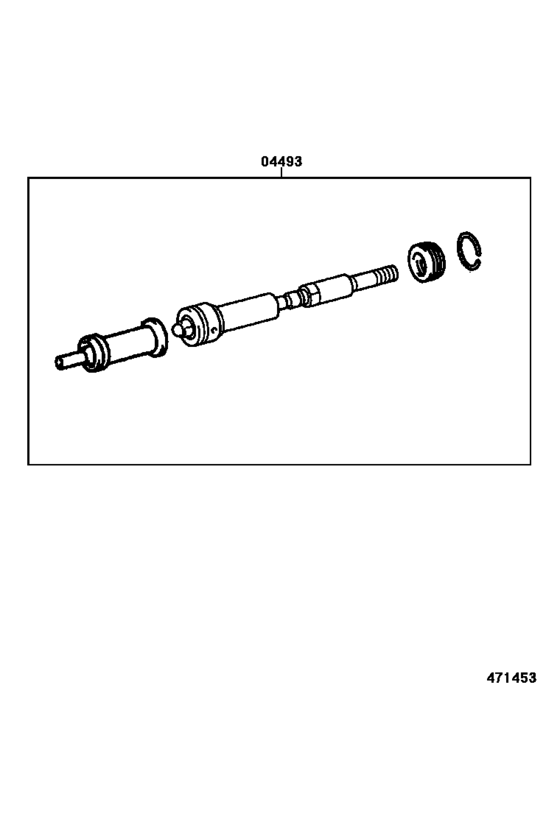

4493	04493-26210	Cylinder Kit, Brake Master
44519	44519-24020	Bolt, Brake Actuator
44519	44519-30010	Bolt, Brake Actuator
44551	44551-26010	Tube, Brake Actuator, No.1
44571	44571-26020	Hose, Brake Actuator, No.1
44591	44591-30220	Bracket, Brake Actuator, No.1
47070	47070-30060	Pump Assy, Brake Booster W/accumulator
47201	47025-26022	Cylinder Sub-Assy, Brake Master
47202	47220-26270	Reservoir Sub-Assy, Brake Master Cylinder
47202	47220-26271	Reservoir Sub-Assy, Brake Master Cylinder
47210	90520-32012	Ring, Snap(For Brake Master Cylinder)
47210	47050-26022	Brake Booster Assy, W/master Cylinder
47230	47230-30130	Cap Assy, Brake Master Cylinder Reservoir Filler
47255	47255-16010	Grommet, Master Cylinder Reservoir
47255	31417-35010	Grommet
47264	47264-28010	Clevis, Master Cylinder Push Rod
47265	90029-70001	Boot, Master Cylinder
47950	47950-30010	Accumulator Assy, Brake Booster
47950	90501-16160	Spring, Compression(For Brake Booster Accumulator)
47950	90301-13014	Ring, O(For Brake Booster Accumulator)
47955	47955-30010	Pipe, Brake Booster Accumulator
47960	47960-30030	Pump Assy, Brake Booster
47960	90301-15014	Ring, O(For Drain Plug)
47960	90561-16009	Spacer(For Brake Booster Pump Oil Pressure Sensor)
47962	47962-60010	Collar, Brake Booster Pump
47963	47963-24010	Shaft, Brake Booster Pump
47964	47964-24010	Washer, Brake Booster Pump
47965	47965-24010	Bush, Brake Booster Pump
47967	47967-26010	Bracket, Brake Booster Pump, No.1
47967	47967-26020	Bracket, Brake Booster Pump, No.2
47967	47967-26030	Bracket, Brake Booster Pump, No.3
47968	47968-26010	Bracket, Brake Booster Pump, No.2
47997	47997-26010	Label, Accumulator Caution, No.1
47997	47997-24020	Label, Brake Booster Accumlator Caution, No.1
89637	89637-30030	Sensor, Oil Pressure
89639	89639-30100	Wire, Brake Control
9014940006	90149-40006	Bolt
9017910065	90179-10065	Nut, Master Cylinder Push Rod Clevis Lock
9046400657	90464-00657	CLAMP
9161160665	91611-60665	New Genuine Part
9331915008	93319-15008	SCREW
9413060500	94130-60500	NUT

OEM	Part name	Category
04493-26210	Cylinder Kit, Brake Master	Brake Master Cylinder ([08.1997 - ] (9708- )KCH16..QLTD ; (9708- )KCH10..Q,QLT D)
31417-35010	Grommet	Brake Master Cylinder ([08.1997 - ] (9708- )KCH16..QLTD ; (9708- )KCH10..Q,QLT D)
44519-24020	Bolt, Brake Actuator	Brake Master Cylinder ([08.1997 - ] (9708- )KCH16..QLTD ; (9708- )KCH10..Q,QLT D)
44519-30010	Bolt, Brake Actuator	Brake Master Cylinder ([08.1997 - ] (9708- )KCH16..QLTD ; (9708- )KCH10..Q,QLT D)
44551-26010	Tube, Brake Actuator, No.1	Brake Master Cylinder ([08.1997 - ] (9708- )KCH16..QLTD ; (9708- )KCH10..Q,QLT D)
44571-26020	Hose, Brake Actuator, No.1	Brake Master Cylinder ([08.1997 - ] (9708- )KCH16..QLTD ; (9708- )KCH10..Q,QLT D)
44591-30220	Bracket, Brake Actuator, No.1	Brake Master Cylinder ([08.1997 - ] (9708- )KCH16..QLTD ; (9708- )KCH10..Q,QLT D)
47025-26022	Cylinder Sub-Assy, Brake Master	Brake Master Cylinder ([08.1997 - ] (9708- )KCH16..QLTD ; (9708- )KCH10..Q,QLT D)
47050-26022	Brake Booster Assy, W/master Cylinder	Brake Master Cylinder ([08.1997 - ] (9708- )KCH16..QLTD ; (9708- )KCH10..Q,QLT D)
47070-30060	Pump Assy, Brake Booster W/accumulator	Brake Master Cylinder ([08.1997 - ] (9708- )KCH16..QLTD ; (9708- )KCH10..Q,QLT D)
47220-26270	Reservoir Sub-Assy, Brake Master Cylinder	Brake Master Cylinder ([08.1997 - ] (9708- )KCH16..QLTD ; (9708- )KCH10..Q,QLT D)
47220-26271	Reservoir Sub-Assy, Brake Master Cylinder	Brake Master Cylinder ([08.1997 - ] (9708- )KCH16..QLTD ; (9708- )KCH10..Q,QLT D)
47230-30130	Cap Assy, Brake Master Cylinder Reservoir Filler	Brake Master Cylinder ([08.1997 - ] (9708- )KCH16..QLTD ; (9708- )KCH10..Q,QLT D)
47255-16010	Grommet, Master Cylinder Reservoir	Brake Master Cylinder ([08.1997 - ] (9708- )KCH16..QLTD ; (9708- )KCH10..Q,QLT D)
47264-28010	Clevis, Master Cylinder Push Rod	Brake Master Cylinder ([08.1997 - ] (9708- )KCH16..QLTD ; (9708- )KCH10..Q,QLT D)
47950-30010	Accumulator Assy, Brake Booster	Brake Master Cylinder ([08.1997 - ] (9708- )KCH16..QLTD ; (9708- )KCH10..Q,QLT D)
47955-30010	Pipe, Brake Booster Accumulator	Brake Master Cylinder ([08.1997 - ] (9708- )KCH16..QLTD ; (9708- )KCH10..Q,QLT D)
47960-30030	Pump Assy, Brake Booster	Brake Master Cylinder ([08.1997 - ] (9708- )KCH16..QLTD ; (9708- )KCH10..Q,QLT D)
47962-60010	Collar, Brake Booster Pump	Brake Master Cylinder ([08.1997 - ] (9708- )KCH16..QLTD ; (9708- )KCH10..Q,QLT D)
47963-24010	Shaft, Brake Booster Pump	Brake Master Cylinder ([08.1997 - ] (9708- )KCH16..QLTD ; (9708- )KCH10..Q,QLT D)
47964-24010	Washer, Brake Booster Pump	Brake Master Cylinder ([08.1997 - ] (9708- )KCH16..QLTD ; (9708- )KCH10..Q,QLT D)
47965-24010	Bush, Brake Booster Pump	Brake Master Cylinder ([08.1997 - ] (9708- )KCH16..QLTD ; (9708- )KCH10..Q,QLT D)
47967-26010	Bracket, Brake Booster Pump, No.1	Brake Master Cylinder ([08.1997 - ] (9708- )KCH16..QLTD ; (9708- )KCH10..Q,QLT D)
47967-26020	Bracket, Brake Booster Pump, No.2	Brake Master Cylinder ([08.1997 - ] (9708- )KCH16..QLTD ; (9708- )KCH10..Q,QLT D)
47967-26030	Bracket, Brake Booster Pump, No.3	Brake Master Cylinder ([08.1997 - ] (9708- )KCH16..QLTD ; (9708- )KCH10..Q,QLT D)
47968-26010	Bracket, Brake Booster Pump, No.2	Brake Master Cylinder ([08.1997 - ] (9708- )KCH16..QLTD ; (9708- )KCH10..Q,QLT D)
47997-24020	Label, Brake Booster Accumlator Caution, No.1	Brake Master Cylinder ([08.1997 - ] (9708- )KCH16..QLTD ; (9708- )KCH10..Q,QLT D)
47997-26010	Label, Accumulator Caution, No.1	Brake Master Cylinder ([08.1997 - ] (9708- )KCH16..QLTD ; (9708- )KCH10..Q,QLT D)
89637-30030	Sensor, Oil Pressure	Brake Master Cylinder ([08.1997 - ] (9708- )KCH16..QLTD ; (9708- )KCH10..Q,QLT D)
89639-30100	Wire, Brake Control	Brake Master Cylinder ([08.1997 - ] (9708- )KCH16..QLTD ; (9708- )KCH10..Q,QLT D)
90029-70001	Boot, Master Cylinder	Brake Master Cylinder ([08.1997 - ] (9708- )KCH16..QLTD ; (9708- )KCH10..Q,QLT D)
90149-40006	Bolt	Brake Master Cylinder ([08.1997 - ] (9708- )KCH16..QLTD ; (9708- )KCH10..Q,QLT D)
90179-10065	Nut, Master Cylinder Push Rod Clevis Lock	Brake Master Cylinder ([08.1997 - ] (9708- )KCH16..QLTD ; (9708- )KCH10..Q,QLT D)
90301-13014	Ring, O(For Brake Booster Accumulator)	Brake Master Cylinder ([08.1997 - ] (9708- )KCH16..QLTD ; (9708- )KCH10..Q,QLT D)
90301-15014	Ring, O(For Drain Plug)	Brake Master Cylinder ([08.1997 - ] (9708- )KCH16..QLTD ; (9708- )KCH10..Q,QLT D)
90464-00657	CLAMP	Brake Master Cylinder ([08.1997 - ] (9708- )KCH16..QLTD ; (9708- )KCH10..Q,QLT D)
90501-16160	Spring, Compression(For Brake Booster Accumulator)	Brake Master Cylinder ([08.1997 - ] (9708- )KCH16..QLTD ; (9708- )KCH10..Q,QLT D)
90520-32012	Ring, Snap(For Brake Master Cylinder)	Brake Master Cylinder ([08.1997 - ] (9708- )KCH16..QLTD ; (9708- )KCH10..Q,QLT D)
90561-16009	Spacer(For Brake Booster Pump Oil Pressure Sensor)	Brake Master Cylinder ([08.1997 - ] (9708- )KCH16..QLTD ; (9708- )KCH10..Q,QLT D)
91611-60665	New Genuine Part	Brake Master Cylinder ([08.1997 - ] (9708- )KCH16..QLTD ; (9708- )KCH10..Q,QLT D)
93319-15008	SCREW	Brake Master Cylinder ([08.1997 - ] (9708- )KCH16..QLTD ; (9708- )KCH10..Q,QLT D)
94130-60500	NUT	Brake Master Cylinder ([08.1997 - ] (9708- )KCH16..QLTD ; (9708- )KCH10..Q,QLT D)
