Search › Model › KCH16

KCH16

Toyota GRANVIA-GRAND-HIACE · 1995 · 5,560 parts · 230 categories

5,560 items

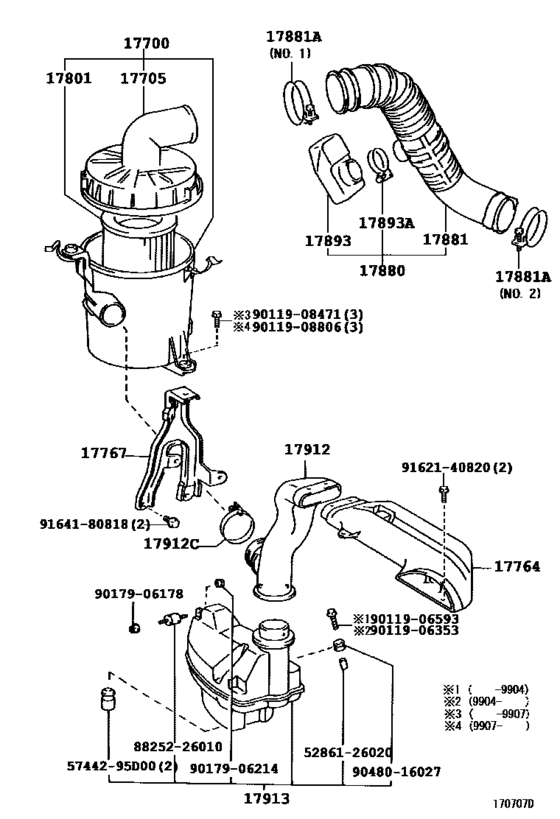

Air Cleaner ([08.1995 - ] (9508- )1KZTE) 27

#	OEM	Part name
17700	17700-67102	Cleaner Assy, Air
17705	17705-54340	Cap Sub-Assy, Air Cleaner
17764	52811-26030	Duct, Air Cleaner
17767	17771-54100	Bracket, Air Cleaner
17801	17801-67020	Element Sub-Assy, Air Cleaner Filter
17880	17880-67010	Hose Assy, Air Cleaner
17881	17881-67050	Hose, Air Cleaner, No.1
17881	90467-58002	Clamp(For Air Cleaner Hose, No.1)
17881	96111-10850	Clamp, Hose(For Air Connector)
17893	17893-67010	Resonator, Intake Air
17893	96111-10560	Clamp Or Clip, Hose(For Radiator Outlet No.1)
17912	52812-26040	Duct, Cool Air Intake, No.2
17912	96111-10830	Clamp, Hose(For Air Connector)
17913	52830-26020	Duct, Cool Air Intake, No.3
5744295	57442-95D00	Plug, Step Panel Hole
5286126020	52861-26020	Collar, Cool Air Intake
8825226010	88252-26010	Cushion, Vacuum Pump
9011906353	90119-06353	LEXSCREW
9011906353	90119-06420	BOLT WWASHER
9011906593	90119-06593	BOLT WWASHER
9011908471	90119-08471	New Genuine Part
9011908471	90119-08806	BOLT WWASHER
9017906178	90179-06178	Nut (For Rear Wiper Arm Setting)
9017906214	90179-06214	NUT
9048016027	90480-16027	New Genuine Part
9162140820	91621-40820	Bolt
9164180818	91641-80818	BOLT WWASHER

OEM	Part name	Category
17700-67102	Cleaner Assy, Air	Air Cleaner ([08.1995 - ] (9508- )1KZTE)
17705-54340	Cap Sub-Assy, Air Cleaner	Air Cleaner ([08.1995 - ] (9508- )1KZTE)
17771-54100	Bracket, Air Cleaner	Air Cleaner ([08.1995 - ] (9508- )1KZTE)
17801-67020	Element Sub-Assy, Air Cleaner Filter	Air Cleaner ([08.1995 - ] (9508- )1KZTE)
17880-67010	Hose Assy, Air Cleaner	Air Cleaner ([08.1995 - ] (9508- )1KZTE)
17881-67050	Hose, Air Cleaner, No.1	Air Cleaner ([08.1995 - ] (9508- )1KZTE)
17893-67010	Resonator, Intake Air	Air Cleaner ([08.1995 - ] (9508- )1KZTE)
52811-26030	Duct, Air Cleaner	Air Cleaner ([08.1995 - ] (9508- )1KZTE)
52812-26040	Duct, Cool Air Intake, No.2	Air Cleaner ([08.1995 - ] (9508- )1KZTE)
52830-26020	Duct, Cool Air Intake, No.3	Air Cleaner ([08.1995 - ] (9508- )1KZTE)
52861-26020	Collar, Cool Air Intake	Air Cleaner ([08.1995 - ] (9508- )1KZTE)
57442-95D00	Plug, Step Panel Hole	Air Cleaner ([08.1995 - ] (9508- )1KZTE)
88252-26010	Cushion, Vacuum Pump	Air Cleaner ([08.1995 - ] (9508- )1KZTE)
90119-06353	LEXSCREW	Air Cleaner ([08.1995 - ] (9508- )1KZTE)
90119-06420	BOLT WWASHER	Air Cleaner ([08.1995 - ] (9508- )1KZTE)
90119-06593	BOLT WWASHER	Air Cleaner ([08.1995 - ] (9508- )1KZTE)
90119-08471	New Genuine Part	Air Cleaner ([08.1995 - ] (9508- )1KZTE)
90119-08806	BOLT WWASHER	Air Cleaner ([08.1995 - ] (9508- )1KZTE)
90179-06178	Nut (For Rear Wiper Arm Setting)	Air Cleaner ([08.1995 - ] (9508- )1KZTE)
90179-06214	NUT	Air Cleaner ([08.1995 - ] (9508- )1KZTE)
90467-58002	Clamp(For Air Cleaner Hose, No.1)	Air Cleaner ([08.1995 - ] (9508- )1KZTE)
90480-16027	New Genuine Part	Air Cleaner ([08.1995 - ] (9508- )1KZTE)
91621-40820	Bolt	Air Cleaner ([08.1995 - ] (9508- )1KZTE)
91641-80818	BOLT WWASHER	Air Cleaner ([08.1995 - ] (9508- )1KZTE)
96111-10560	Clamp Or Clip, Hose(For Radiator Outlet No.1)	Air Cleaner ([08.1995 - ] (9508- )1KZTE)
96111-10830	Clamp, Hose(For Air Connector)	Air Cleaner ([08.1995 - ] (9508- )1KZTE)
96111-10850	Clamp, Hose(For Air Connector)	Air Cleaner ([08.1995 - ] (9508- )1KZTE)
