KCH12

Toyota GRANVIA-GRAND-HIACE · 1995 · 3,981 parts · 199 categories
KCH12 ×

← Back to categories

3,981 items

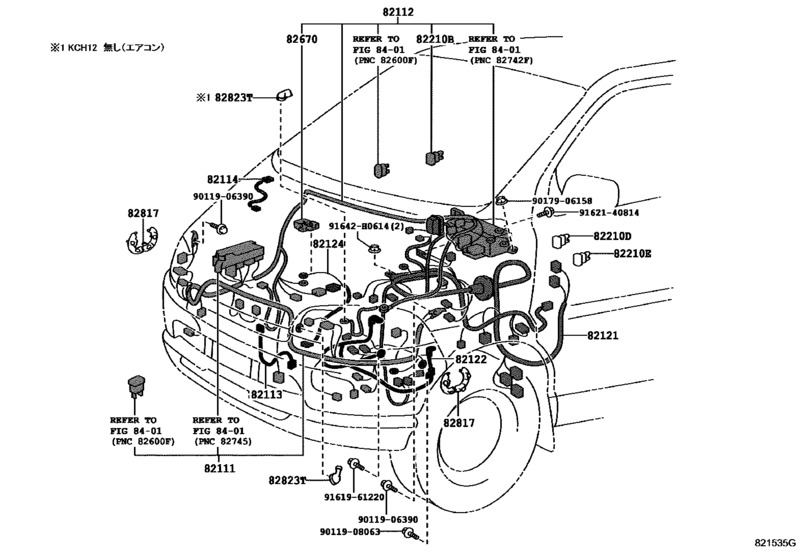

Wiring & Clamp ([08.1995 - 07.1999] ｴﾝｼﾞﾝ ﾜｲﾔ (9508-9907)KCH1#) 23
#OEMPart name
82111 82111-2N260 Wire, Engine Room Main
82112 82112-26100 Wire, Engine Room, No.2
82112 82112-26110 Wire, Engine Room, No.2
82113 82113-26020 Wire, Engine Room, No.3
82113 82113-26021 Wire, Engine Room, No.3
82121 82121-26070 Wire, Engine
82122 82122-26030 Wire, Engine, No.2
82122 82122-26040 Wire, Engine, No.2
82124 82124-26100 Wire, Engine, No.4
82210 90982-08203 Fusible Link
82210 90982-08274 Fusible Link
82210 90982-08281 Fusible Link
82210 90982-08282 Fusible Link
82670 82670-26020 Block Assy, Junction, No.1
82817 82817-2B730 Protector, Wiring Harness, No.1
82823 82823-22050 Cap, Terminal, No.1
91642 91642-H0614 New Genuine Part
91642 91641-H0614 New Genuine Part
9011906390 90119-06390 BOLT WWASHER
9011908063 90119-08063 BOLT
9017906158 90179-06158 Nut, Rear Wiper Link Pivot, No.2
9161961220 91619-61220 Bolt, Stud
9162140814 91621-40814 Bolt
