KCH12

Toyota GRANVIA-GRAND-HIACE · 1995 · 3,981 parts · 199 categories
KCH12 ×

← Back to categories

3,981 items

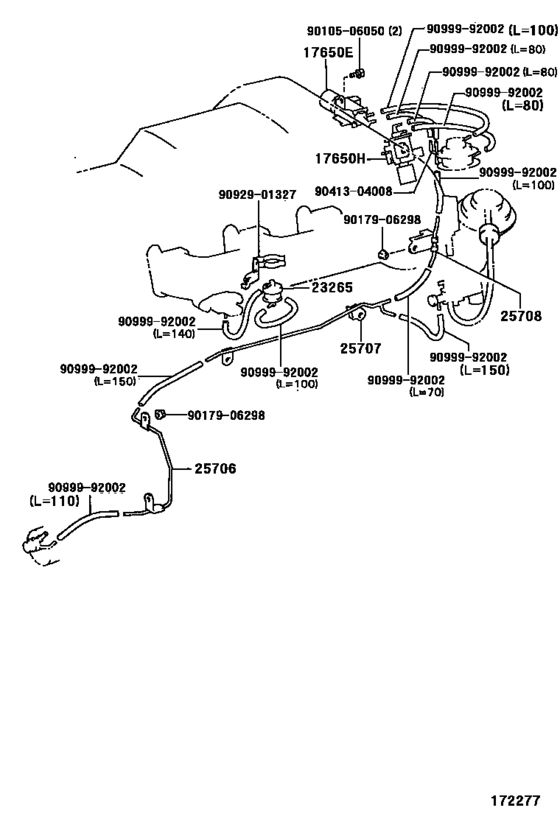

Vacuum Piping ([08.1995 - 07.1999] (9508-9907)1KZTE) 14
#OEMPart name
17650 90910-12126 Valve, Vacuum Switching
17650 90910-12146 Valve, Vacuum Switching
23265 90917-11036 Filter, Gas, No.1
25706 25706-67010 Pipe Sub-Assy, Vacuum Transmitting, No.1
25706 25706-67020 Pipe Sub-Assy, Vacuum Transmitting, No.1
25707 25707-67010 Pipe Sub-Assy, Vacuum Transmitting, No.2
25707 25707-67011 Pipe Sub-Assy, Vacuum Transmitting, No.2
25708 25708-67010 Pipe Sub-Assy, Vacuum Transmitting, No.3
9010506050 90105-06050 New Genuine Part
9010506050 91621-G0612 New Genuine Part
9017906298 90179-06298 NUT
9041304008 90413-04008 Way, 3(For Transfer Breather Hose)
9092901327 90929-01327 New Genuine Part
9099992002 90999-92002 Air Hose (300 mm)
