KCH12

Toyota GRANVIA-GRAND-HIACE · 1995 · 3,981 parts · 199 categories
KCH12 ×

← Back to categories

3,981 items

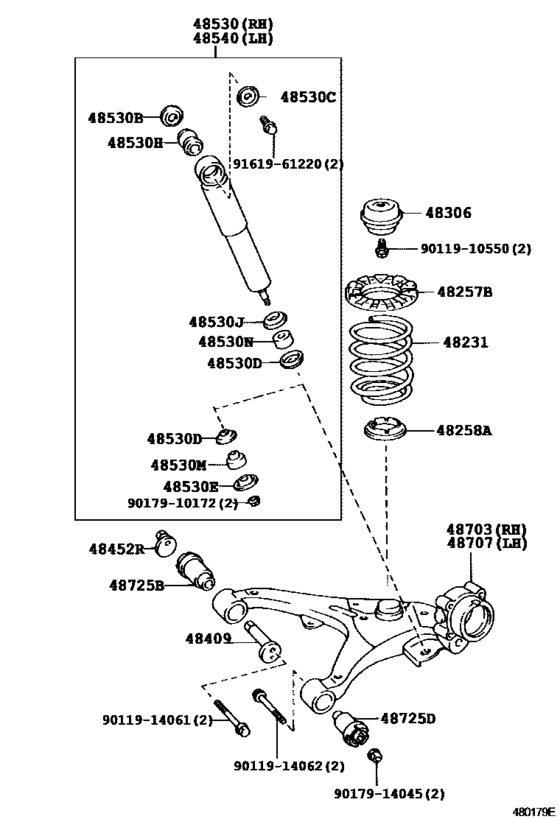

Rear Spring & Shock Absorber ([08.1995 - 08.1997] (9508-9708)) 31
#OEMPart name
48231 48231-26321 Spring, Coil, Rear
48257 48257-26050 Insulator, Rear Coil Spring, Upper
48258 48258-26050 Insulator, Rear Coil Spring, Lower
48306 48306-26100 Bumper Sub-Assy, Rear Spring
48409 48409-26050 Cam Sub-Assy, Rear Suspension Toe Adjust
48452 48452-26010 Plate, Rear Suspension Toe Adjust, No.2
48530 48531-80298 Absorber Assy, Shock, Rear Rh
48530 48531-80299 Absorber Assy, Shock, Rear
48530 90948-03011 Washer, Front Shock Absorber Cushion, No.1
48530 90948-03015 Washer, Front Shock Absorber Cushion, No.1
48530 90948-02077 Retainer, Cushion, No.1(For Front Shock Absorber)
48530 90948-02125 Washer, Rear Shock Absorber Cushion, No.1
48530 90948-02169 Washer, Rear Shock Absorber Cushion, No.1
48530 90385-19008 Bush, Rear Shock Absorber
48530 90385-19009 Bush, Rear Shock Absorber
48530 90948-02165 Washer, Rear Shock Absorber Cushion, No.3
48530 90948-01059 Cushion, Front Shock Absorber
48530 90948-01060 Cushion, Rear Shock Absorber, No.5
48703 48703-26050 Arm Sub-Assy, Rear Suspension, Rh
48703 48703-26060 Arm Sub-Assy, Rear Suspension, Rh
48707 48707-26030 Arm Sub-Assy, Rear Suspension, Lh
48707 48707-26040 Arm Sub-Assy, Rear Suspension, Lh
48725 48725-26010 Bush, Rear Suspension Arm, No.1
48725 48725-26040 Bush, Rear Suspension Arm, No.3
9011910550 90119-10550 New Genuine Part
9011910550 90080-11399 New Genuine Part
9011914061 90119-14061 BOLT WWASHER
9011914062 90119-14062 BOLT WWASHER
9017910172 90179-10172 NUT
9017914045 90179-14045 Nut(For Front Shock Absorber Bracket Lower)
9161961220 91619-61220 Bolt, Stud
