KCH12

Toyota GRANVIA-GRAND-HIACE · 1995 · 3,981 parts · 199 categories
KCH12 ×

← Back to categories

3,981 items

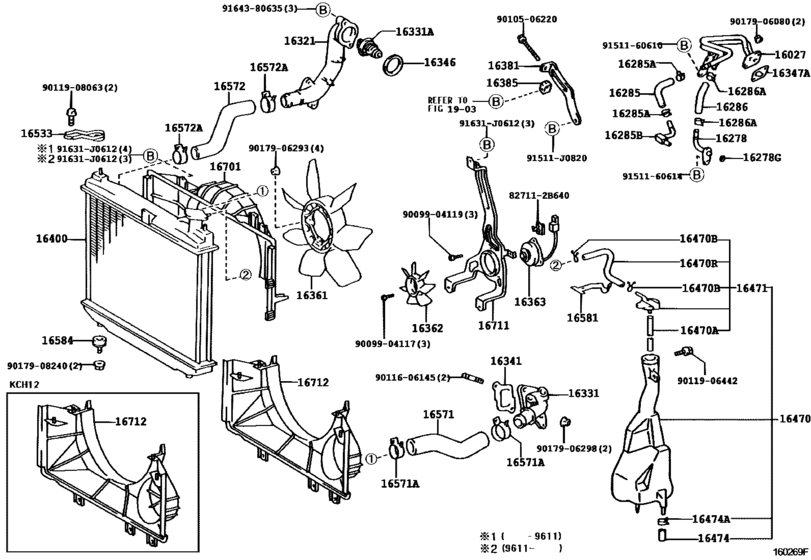

Radiator & Water Outlet ([08.1995 - 07.1999] (9508-9907)1KZTE) 67
#OEMPart name
16027 16027-67010 Pipe Sub-Assy, Turbo Water, No.1
16027 16027-67011 Pipe Sub-Assy, Turbo Water, No.1
16027 16284-67020 Hose, Turbo Water, No.3
16278 16278-67010 Pipe, Water By-Pass, No.2
16278 96761-24010 Ring, O(For Water By-Pass No.2 Pipe)
16285 16285-67010 Hose, Turbo Water, No.2
16285 90467-15022 Clip Or Clamp(For Ventilation Hose)
16285 90405-10044 Union(For Turbo Water Hose No.2)
16321 16321-67011 Inlet, Water
16321 16321-0K010 Inlet, Water
16331 16331-67020 Outlet, Water
16331 16331-67060 Outlet, Water
16331 16331-67061 Outlet, Water
16331 90916-03098 Thermostat
16331 90916-03119 Thermostat
16341 16341-67020 Gasket, Water Outlet
16346 16346-67010 Gasket, Thermostat
16346 16346-30010 Gasket, Thermostat
16347 16347-67010 Gasket(For Turbo Water Pipe)
16361 16361-67030 Fan
16381 16381-67020 Bar, Fan Belt Adjusting
16385 16385-67010 Slider, Fan Belt Adjusting
16400 16400-67100 Radiator Assy
16400 16400-67090 Radiator Assy
16400 16417-15210 Plug, Radiator Drain Cock
16400 16418-15520 Packing(For Radiator Drain Cock)
16401 16401-54750 Radiator Cap
16401 16401-71010 Cap Sub-Assy(For Water Outlet)
16470 16470-54290 Tank Assy, Radiator Reserve
16470 90445-12078 Hose(For Radiator Breather)
16470 90467-11085 Clamp Or Clip(For Radiator Breather Hose)
16470 16472-54290 Hose, No.2(For Radiator Reserve Tank)
16470 16477-54290 Hose, No.2(For Radiator Reserve Tank)
16471 16405-54260 Cap Sub-Assy, Reserve Tank
16471 16405-54261 Cap Sub-Assy, Reserve Tank
16474 16474-54290 Cap(For Radiator Reserve Tank Drain)
16474 90467-09173 Clamp Or Clip(For Radiator Reserve Tank Drain Cap)
16533 16505-54050 Support, Radiator, Upper
16571 16571-67060 Hose, Radiator, Inlet
16571 90466-41001 Clamp Or Clip, Hose(For Radiator Inlet)
16571 90466-41008 Clamp, Hose(For Radiator Hose)
16571 90467-41006 Clamp Or Clip, Hose(For Radiator Inlet)
16572 16572-67060 Hose, Radiator, Outlet
16581 16581-54060 Clamp, Hose(For Water Hose)
16584 16584-54010 Insulator, Radiator Mounting
16701 16711-67060 Shroud Sub-Assy, Fan
16701 16711-67061 Shroud Sub-Assy, Fan
16712 16712-67040 Shroud, Fan, No.2
16712 16712-67041 Shroud, Fan, No.2
91511 91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
91631 91631-J0612 BRACKET
827112 82711-2B640 Wire, Fuse To Fuse(for Combustion Heater)
9009904117 90099-04117 Bolt, Radiator Side Support Plate
9009904119 90099-04119 BOLT WASHER HEAD
9010506220 90105-06220 BOLT WASHER BASED
9011606145 90116-06145 Bolt, Stud(For Oil Pan)
9011906442 90119-06442 BOLT WWASHER
9011908063 90119-08063 BOLT
9017906080 90179-06080 NUT
9017906293 90179-06293 NUT
9017906298 90179-06298 NUT
9017908240 90179-08240 New Genuine Part
9151160610 91511-60610 New Genuine Part
9151160610 91511-B0610 BOLT FLANGE
9151160614 91511-60614 LEXBOLT
9151160614 91511-B0614 BOLT, FLANGE
9164380635 91643-80635 New Genuine Part
