Search › Model › KCH12
KCH12

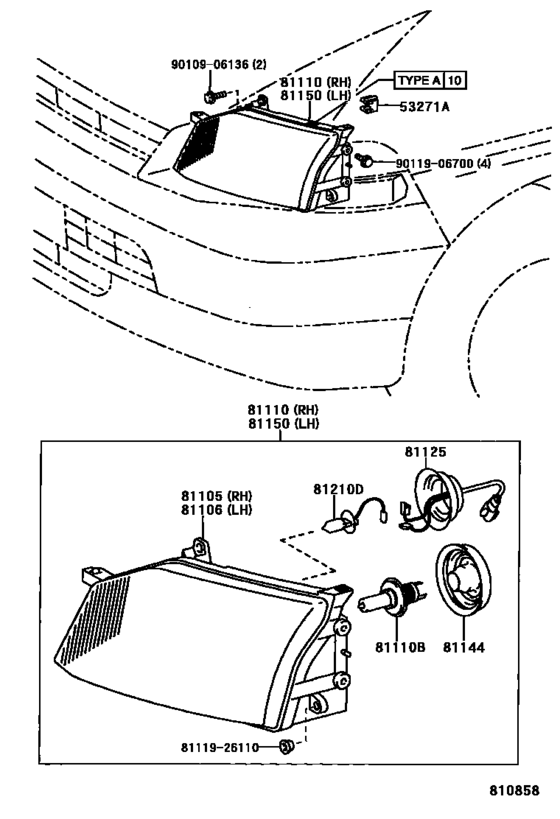

Headlamp ([08.1995 - 12.1995] (9508-9512)) 11
| # | OEM | Part name |
|---|---|---|
| 53271 | 53271-12060 | Bracket, Headlamp Mounting |
| 81105 | 81105-26120 | Housing Sub-Assy, Headlamp, Rh |
| 81106 | 81106-26120 | Housing Sub-Assy, Headlamp, Lh |
| 81110 | 81110-26120 | Headlamp Assy, Rh |
| 81110 | 90981-22003 | Bulb(For Headlamp, No.1) |
| 81110 | 90981-13058 | Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W) |
| 81144 | 81139-87641 | Ring, Sealed Beam Mounting, No.2 Rh |
| 81150 | 81150-26120 | Headlamp Assy, Lh |
| 8111926110 | 81119-26110 | Screw, Headlamp |
| 9010906136 | 90109-06136 | New Genuine Part |
| 9011906700 | 90119-06700 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 53271-12060 | Bracket, Headlamp Mounting | Headlamp ([08.1995 - 12.1995] (9508-9512)) |
| 81105-26120 | Housing Sub-Assy, Headlamp, Rh | Headlamp ([08.1995 - 12.1995] (9508-9512)) |
| 81106-26120 | Housing Sub-Assy, Headlamp, Lh | Headlamp ([08.1995 - 12.1995] (9508-9512)) |
| 81110-26120 | Headlamp Assy, Rh | Headlamp ([08.1995 - 12.1995] (9508-9512)) |
| 81119-26110 | Screw, Headlamp | Headlamp ([08.1995 - 12.1995] (9508-9512)) |
| 81139-87641 | Ring, Sealed Beam Mounting, No.2 Rh | Headlamp ([08.1995 - 12.1995] (9508-9512)) |
| 81150-26120 | Headlamp Assy, Lh | Headlamp ([08.1995 - 12.1995] (9508-9512)) |
| 90109-06136 | New Genuine Part | Headlamp ([08.1995 - 12.1995] (9508-9512)) |
| 90119-06700 | New Genuine Part | Headlamp ([08.1995 - 12.1995] (9508-9512)) |
| 90981-13058 | Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W) | Headlamp ([08.1995 - 12.1995] (9508-9512)) |
| 90981-22003 | Bulb(For Headlamp, No.1) | Headlamp ([08.1995 - 12.1995] (9508-9512)) |
