KCH12

Toyota GRANVIA-GRAND-HIACE · 1995 · 3,981 parts · 199 categories
KCH12 ×

← Back to categories

3,981 items

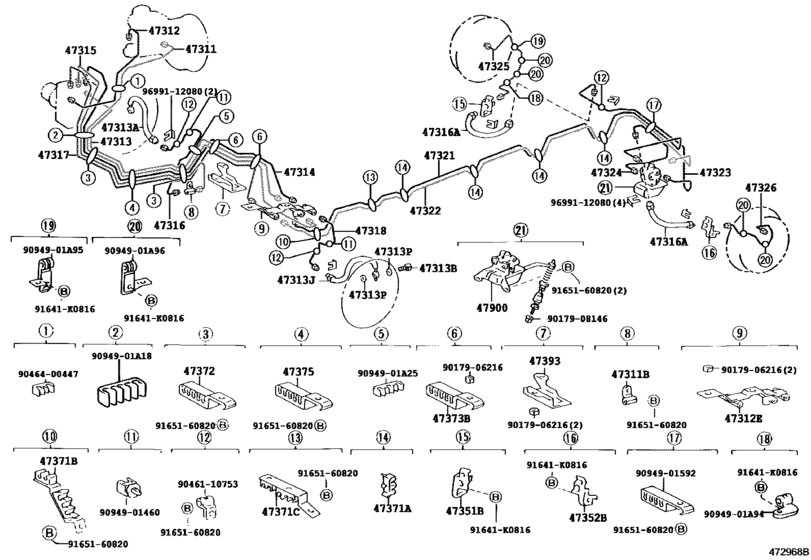

Brake Tube & Clamp ([08.1996 - 08.1997] ｱﾘ(ABS) (9608-9708)KCH10,12) 67
#OEMPart name
47311 47311-26470 Tube, Front Brake, No.1
47311 47311-26471 Tube, Front Brake, No.1
47311 47311-26510 Tube, Front Brake, No.1
47311 90412-10165 Way, No.1(For Front Brake Tube)
47311 90904-14005 Way, No.1(For Front Brake Tube)
47312 47321-26400 Tube, Front Brake, No.2
47312 47322-26230 Tube, Front Brake, No.2
47312 47322-26231 Tube, Front Brake, No.2
47312 90904-13024 Way, No.2(For Front Brake Tube)
47313 47313-26190 Tube, Front Brake, No.3
47313 47313-26191 Tube, Front Brake, No.3
47313 47317-26150 Tube, Front Brake, No.3
47313 90947-02833 Hose, Flexible, No.1(For Front)
47313 90401-10015 Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
47313 90947-02834 Hose, Flexible, No.2(For Front)
47313 90430-10074 Gasket(For Oil Pressure Regulator)
47314 47314-26240 Tube, Front Brake, No.4
47314 47314-26241 Tube, Front Brake, No.4
47314 47318-26060 Tube, Front Brake, No.4
47315 47315-26170 Tube, Front Brake, No.5
47315 47315-26171 Tube, Front Brake, No.5
47316 47316-26260 Tube, Front Brake, No.6
47316 90947-02828 Hose, Flexible(For Rear Brake Tube)
47317 47324-26360 Tube, Front Brake, No.7
47317 47324-26361 Tube, Front Brake, No.7
47321 47319-26050 Tube, Rear Brake, No.1
47321 47319-26060 Tube, Rear Brake, No.1
47322 47329-26070 Tube, Rear Brake, No.2
47323 47331-26060 Tube, Rear Brake, No.3
47324 47332-26030 Tube, Rear Brake, No.4
47325 47333-26020 Tube, Rear Brake, No.5
47325 47333-26030 Tube, Rear Brake, No.5
47325 47333-26080 Tube, Rear Brake, No.5
47326 47334-26030 Tube, Rear Brake, No.6
47326 47334-26031 Tube, Rear Brake, No.6
47326 47334-26040 Tube, Rear Brake, No.6
47326 47334-26070 Tube, Rear Brake, No.6
47326 47334-26090 Tube, Rear Brake, No.6
47351 47351-26150 Bracket, Flexible Hose, No.1
47352 47352-26140 Bracket, Flexible Hose, No.2
47371 90469-05013 Clamp, Brake Tube, No.1
47371 47371-26140 Clamp, Brake Tube, No.6
47371 47371-26150 Clamp, Brake Tube, No.7
47372 47371-26050 Clamp, Brake Tube, No.1
47372 47371-26060 Clamp, Brake Tube, No.2
47373 47371-26110 Clamp, Brake Tube, No.2
47375 47371-26130 Clamp, Brake Tube, No.3
47393 47393-26020 Insulator, Brake Tube Heat
47900 47900-26540 Valve Assy, Load Sensing W/spring
47900 47900-26543 Valve Assy, Load Sensing W/spring
91641 91641-K0816 BOLT WWASHER
9094901 90949-01A18 Clamp, Brake Tube, No.3
9094901 90949-01A25 Clamp, Brake Tube, No.1
9094901 90949-01A94 New Genuine Part
9094901 90949-01A95 New Genuine Part
9094901 90949-01A96 New Genuine Part
9017906216 90179-06216 Direct
9017906216 90179-06274 Nut
9017908146 90179-08146 Nut
9017908146 90179-08204 Nut
9046110753 90461-10753 New Genuine Part
9046400447 90464-00447 Clamp, Brake Tube, No.3
9094901460 90949-01460 Clamp
9094901592 90949-01592 New Genuine Part
9165160820 91651-60820 Bolt, Radiator Side Support Plate
9165160820 91651-B0820 Bolt, Radiator Side Support Plate
9699112080 96991-12080 Clip
