Search › Model › KCH12
KCH12

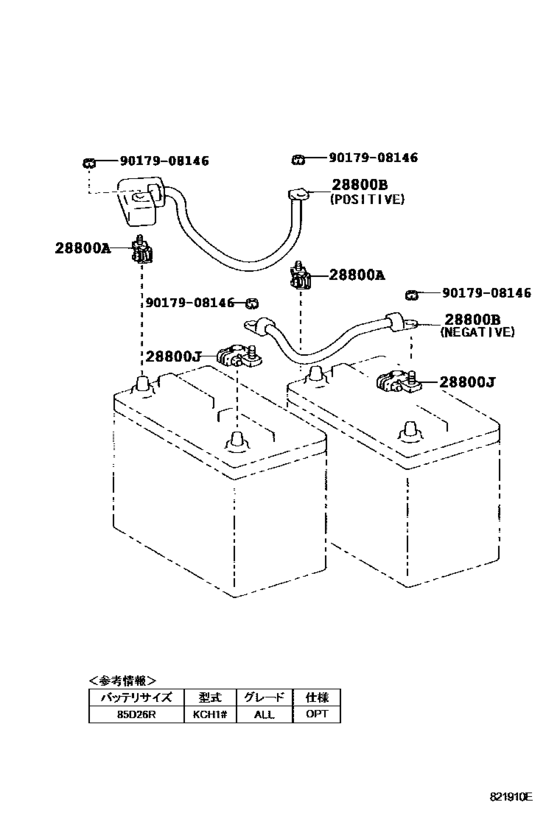

Battery & Battery Cable ([08.1995 - ] 2-ﾊﾞｯﾃﾘ (9508- )KCH1#) 6
| # | OEM | Part name |
|---|---|---|
| 28800 | 90982-05035 | Terminal, Battery Positive |
| 28800 | 82123-26040 | Cable, Battery To Ground |
| 28800 | 82123-26050 | Cable, Battery To Ground |
| 28800 | 90982-06028 | Terminal, Battery Negative |
| 9017908146 | 90179-08146 | Nut |
| 9017908146 | 90179-08204 | Nut |
| OEM | Part name | Category |
|---|---|---|
| 82123-26040 | Cable, Battery To Ground | Battery & Battery Cable ([08.1995 - ] 2-ﾊﾞｯﾃﾘ (9508- )KCH1#) |
| 82123-26050 | Cable, Battery To Ground | Battery & Battery Cable ([08.1995 - ] 2-ﾊﾞｯﾃﾘ (9508- )KCH1#) |
| 90179-08146 | Nut | Battery & Battery Cable ([08.1995 - ] 2-ﾊﾞｯﾃﾘ (9508- )KCH1#) |
| 90179-08204 | Nut | Battery & Battery Cable ([08.1995 - ] 2-ﾊﾞｯﾃﾘ (9508- )KCH1#) |
| 90982-05035 | Terminal, Battery Positive | Battery & Battery Cable ([08.1995 - ] 2-ﾊﾞｯﾃﾘ (9508- )KCH1#) |
| 90982-06028 | Terminal, Battery Negative | Battery & Battery Cable ([08.1995 - ] 2-ﾊﾞｯﾃﾘ (9508- )KCH1#) |
