Search › Model › KB9T
KB9T

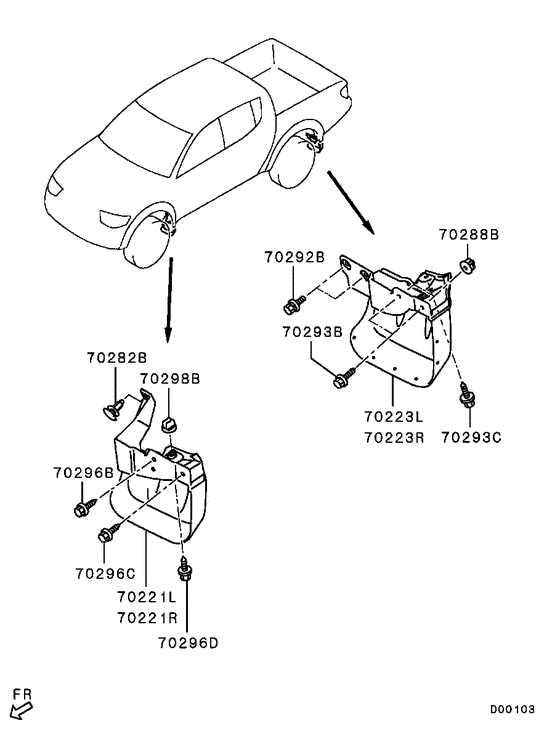

Mud guard,shield & stone guard (MUD GUARD) 10
| # | OEM | Part name |
|---|---|---|
| 70221 | MN117447 | MUD GUARD, FR LH |
| 70221 | MN117448 | MUD GUARD, FR RH |
| 70223 | MN117453 | MUD GUARD, RR LH |
| 70223 | MN117454 | MUD GUARD, RR RH |
| 70282 | MR374404 | CLIP, STONE GUARD - 6 |
| 70288 | MS480003 | GROMMET, FUEL FILLER LID PANEL - Screw,6 |
| 70292 | MF244226 | BOLT, A/C PIPING - Washer assembled,6x20 |
| 70293 | MS452358 | SCREW, FR MUD GUARD - Tapping washer assembled,6x25 |
| 70293 | MS452398 | SCREW, SPLASH SHIELD - Tapping washer assembled,6x25 |
| 70296 | MS452357 | SCREW, FR BUMPER - Tapping washer assembled,6x20 |
| OEM | Part name | Category |
|---|---|---|
| MF244226 | BOLT, A/C PIPING - Washer assembled,6x20 | Mud guard,shield & stone guard (MUD GUARD) |
| MN117447 | MUD GUARD, FR LH | Mud guard,shield & stone guard (MUD GUARD) |
| MN117448 | MUD GUARD, FR RH | Mud guard,shield & stone guard (MUD GUARD) |
| MN117453 | MUD GUARD, RR LH | Mud guard,shield & stone guard (MUD GUARD) |
| MN117454 | MUD GUARD, RR RH | Mud guard,shield & stone guard (MUD GUARD) |
| MR374404 | CLIP, STONE GUARD - 6 | Mud guard,shield & stone guard (MUD GUARD) |
| MS452357 | SCREW, FR BUMPER - Tapping washer assembled,6x20 | Mud guard,shield & stone guard (MUD GUARD) |
| MS452358 | SCREW, FR MUD GUARD - Tapping washer assembled,6x25 | Mud guard,shield & stone guard (MUD GUARD) |
| MS452398 | SCREW, SPLASH SHIELD - Tapping washer assembled,6x25 | Mud guard,shield & stone guard (MUD GUARD) |
| MS480003 | GROMMET, FUEL FILLER LID PANEL - Screw,6 | Mud guard,shield & stone guard (MUD GUARD) |
