Search › Model › KB9T
KB9T

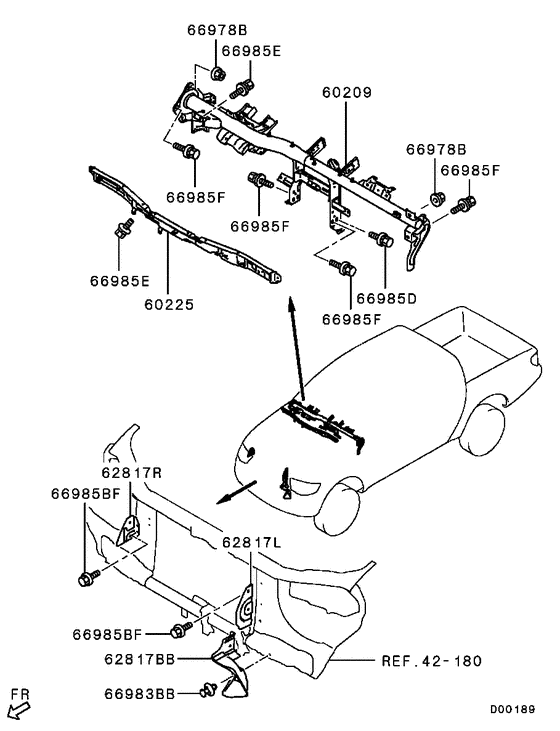

Loose panel 7
| # | OEM | Part name |
|---|---|---|
| 60225 | MN182036 | PANEL, FR DECK |
| 66978 | MF434104 | NUT, ROCKER COVER - Flange,8 |
| 66983 | MU000319 | CLIP, ENG ROOM COVER |
| 66985 | MS100242 | BOLT, FR FENDER - Flange,6x14 |
| 66985 | MB133472 | BOLT, FUEL TANK - Washer assembled,8x20 |
| 66985 | MS240141 | BOLT, FUEL FILLER LID PANEL - Washer assembled,6x16 |
| 66985 | MS240140 | BOLT, ENG MOUNTING - Washer assembled,8x25 |
| OEM | Part name | Category |
|---|---|---|
| MB133472 | BOLT, FUEL TANK - Washer assembled,8x20 | Loose panel |
| MF434104 | NUT, ROCKER COVER - Flange,8 | Loose panel |
| MN182036 | PANEL, FR DECK | Loose panel |
| MS100242 | BOLT, FR FENDER - Flange,6x14 | Loose panel |
| MS240140 | BOLT, ENG MOUNTING - Washer assembled,8x25 | Loose panel |
| MS240141 | BOLT, FUEL FILLER LID PANEL - Washer assembled,6x16 | Loose panel |
| MU000319 | CLIP, ENG ROOM COVER | Loose panel |
